CE38MB-32

8 left in stock

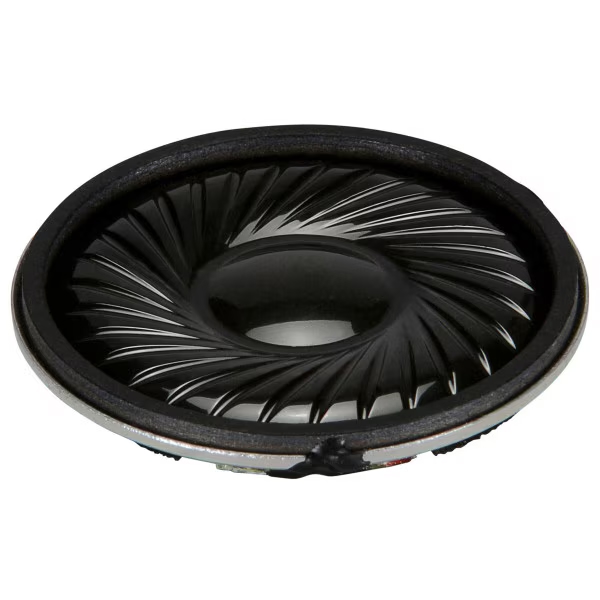

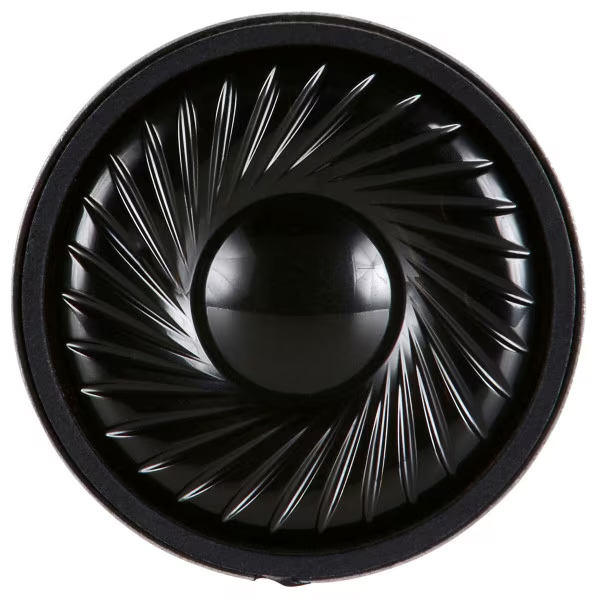

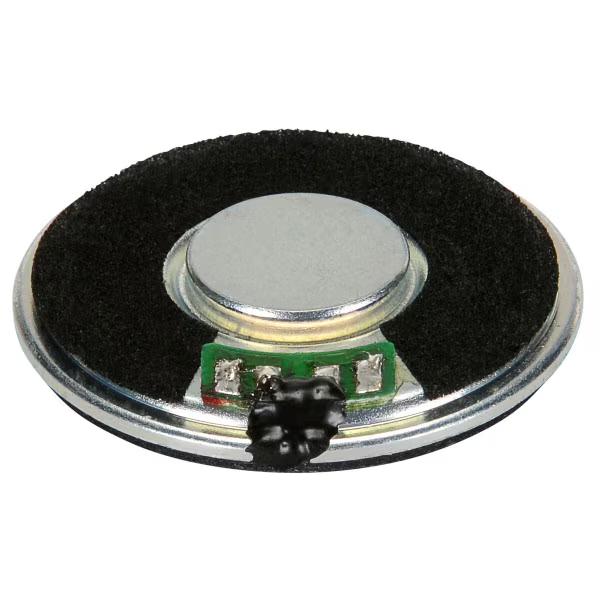

Dayton Audio CE Series CE38MB-32 1-1/2" Mini Speaker Black 32 Ohm
CA$3.56each
Product Specifications
Manufacturer DAYTON AUDIO
Speaker Type Mylar Cone Fullrange
Nominal Diameter 3.9cm
Impedance 32 ohms
Power Handling (RMS) 0.25 W
Frequency Response 137 - 20000 Hz
Sensitivity 78 dB
Voice Coil Diameter 13mm

Dayton Audio CE Series CE38MB-32 1-1/2" Mini Speaker Black 32 Ohm The Commercial Engineering (CE) Series drivers from Dayton Audio provides engineers, designers, and integrators with a line of economical small drivers that fit the diverse range of applications found in consumer electronics and audio-enabled electronic projects. Featuring a smooth-sounding and feather-light Mylar diaphragm and high 32 ohm impedance, the CE38MB-32 driver is the perfect replacement driver for headphones. The 32 ohm impedance makes it an easy load for the integrated headphone amplifier in most portable music devices and phones, while the 38mm frame replaces most 40 mm nominal size headphone drivers. It’s also a great fit for other low-power mini speaker applications, such as electronic toys, speakerphones, and intercoms. Note: The Mylar diaphragm is very fragile. To prevent damage, avoid contact with the diaphragm when handling. This driver should be installed behind a grille.

FILENAME ACTION
ce38mb32.pdf Download
