DAX66
1 left in stock

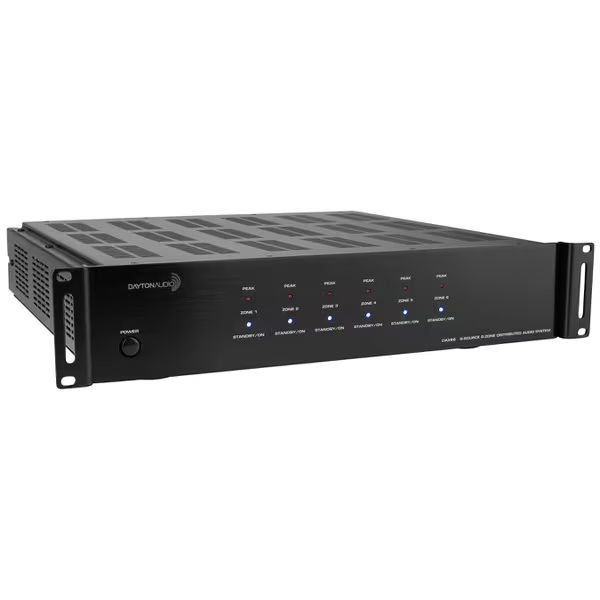

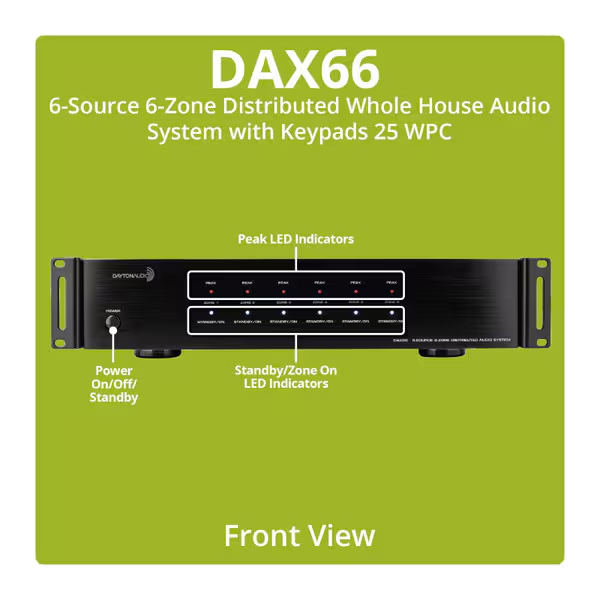

Dayton Audio DAX66 6-Source 6-Zone Distributed Whole House Audio System with Keypads 25 WPC
CA$1,199.38Each
- DAX66
- DAYTON AUDIO
| Product Specifications | |
|---|---|
| Manufacturer | DAYTON AUDIO |

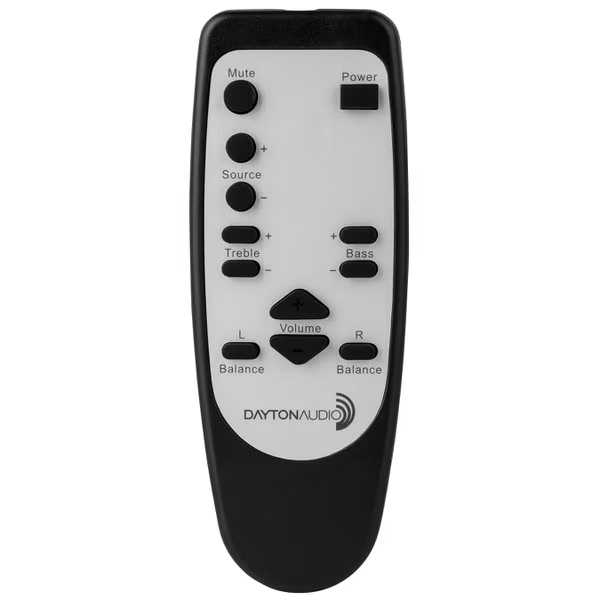

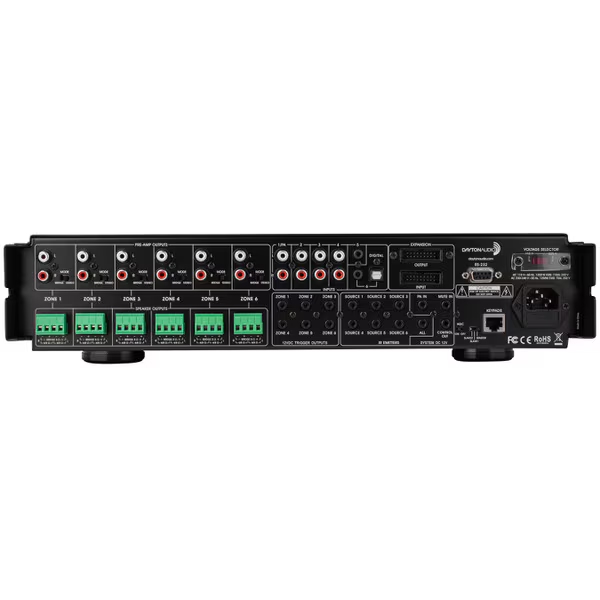

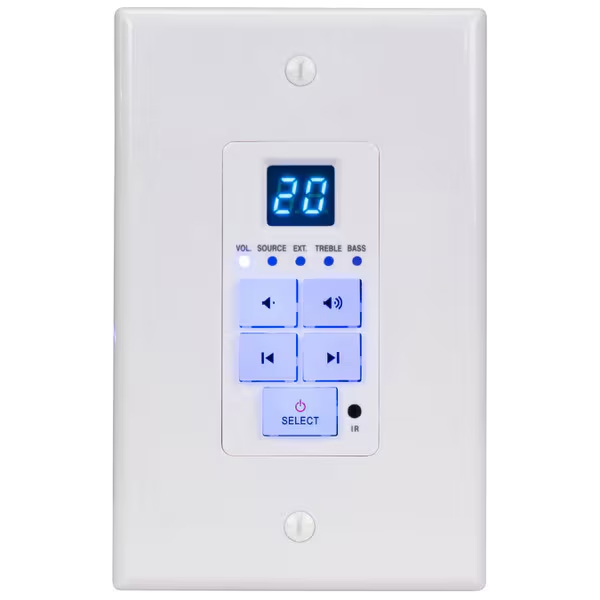

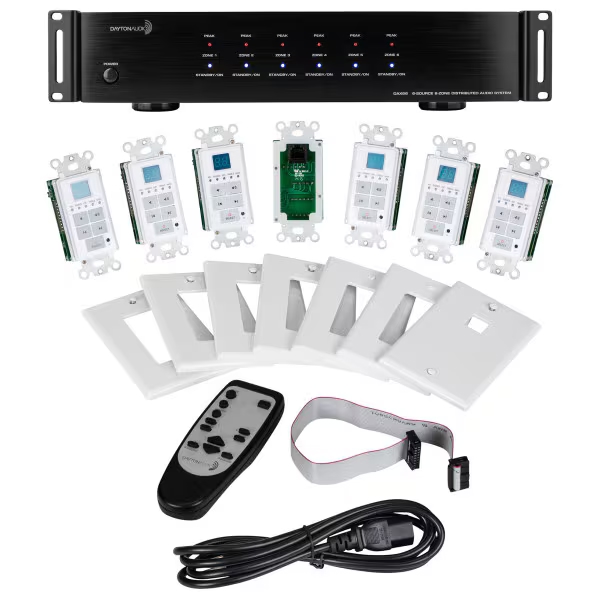

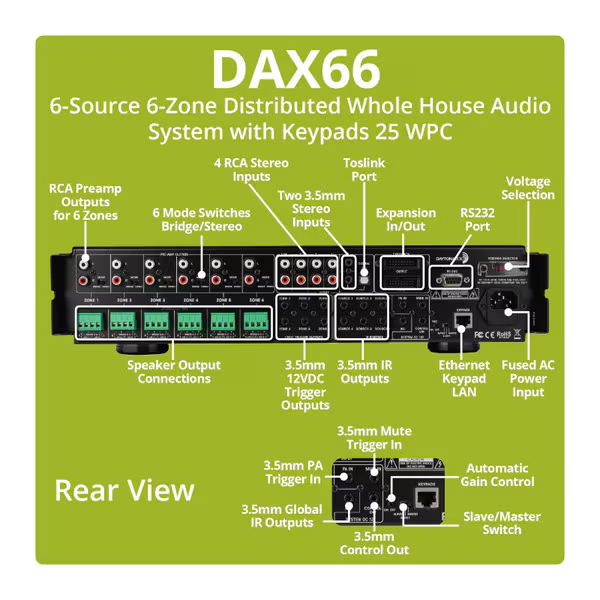

| Summary | Dayton Audio DAX66 6-Source 6-Zone Distributed Audio System with Keypads 25 WPC Enjoying music distributed throughout your home need not be a dream any longer. The DAX66 from Dayton Audio is an affordable, full-featured, six-source, six-zone distributed audio system. The DAX66 is a true matrix system allowing a listener in any zone to select from any of the six connected source devices. Four stereo RCA inputs allow you to connect any audio or audio/ video device like a radio tuner, CD player, Blu-ray DVD player, or satellite/cable TV receiver. Two stereo 3.5 mm jacks allow you to connect a personal audio device or a PC. Input six is a shared connection providing a connection for either a Toslink optical cable or a 3.5 mm stereo audio cable. Each zone is controlled by a dedicated in-wall keypad with back-lit, soft-touch buttons and LED display. The keypad allows you to change the source, volume level, bass, and treble. When a zone is not active, the power/select button emits a soft blue glow. A built-in IR receiver performs double duty providing zone control by a DAXRC remote control, and control of the source devices using the built-in IR extender. Six in-wall keypads and wall plates are included. Generous output power is obtained by using class D amplifier circuitry. The DAX66 provides 25 watts per channel into 8 ohm speakers, 50 watts into 4 ohm speakers, and an impressive 100 watts into a single 8 ohms speaker in bridged mono mode. Since each output is discrete you can operate some outputs in bridged mono mode and the other outputs in stereo mode. If you are installing the DAX66 system in a large home or office, you can connect up to two additional systems to the initial system. The additional DAX66 systems share the six source devices and distribute the audio to a maximum of 18 zones. Each zone has a stereo pre-amp output that allows you to connect higher-power amplifiers to fill larger spaces. Connect a Dayton Audio MA1260 or MA1240a to a pre-amp output to extend a single zone to seven zones. Control the power state of the attached amplifiers with the trigger outputs. Features of the DAX66: 12V trigger output assigned to each zone, IR extender output assigned to each zone, IR ports are compatible with 12V IR emitters, Source 1 PA over-ride, master mute, AGC on/off, RS-232 bi-directional interface. Specifications: Output power: 8 ohms: 25 watts RMS x 12, 4 ohms: 50 watts RMS x 12, 8 ohms bridge mode: 100 watts RMS x 6, Signal to noise ratio: >85dB A weighted, Total harmonic distortion: <0.1%, Frequency response: 20 - 20,000 Hz, Input impedance: >47K ohms, Input sensitivity: 250 mv, Amplifier protection: overload, short circuit, and thermal, System trigger on control out: 12V, External mute trigger: 12V, Infrared band: 38 KHz, Input connectors: stereo RCA: 4, stereo 3.5mm: 2, Toslink: 1, 3.5 mm PA trigger (2-conductor): 1, 3.5 mm mute trigger (2-conductor): 1 Output connectors: pre-amp stereo RCA: 6, Speakers: 6 Phoenix type, 3.5 mm 12V trigger (2-conductor): 6, 3.5 mm IR emitter (2-conductor): 7, RJ45 (8P8C) jack: keypad hub interface, RS-232: bi-directional serial communication, Power: 115 VAC/60 Hz, 230 VAC/50 Hz switchable, Rack mountable, Dimensions: 16.9" W x 3.5" H x 16.4" D, Weight: 24.25 lbs., Warranty: 5 years. |
| FILENAME | ACTION |
|---|---|
| dax66.pdf | Download |
