DSA215-PR
- DSA215-PR
- DAYTON AUDIO

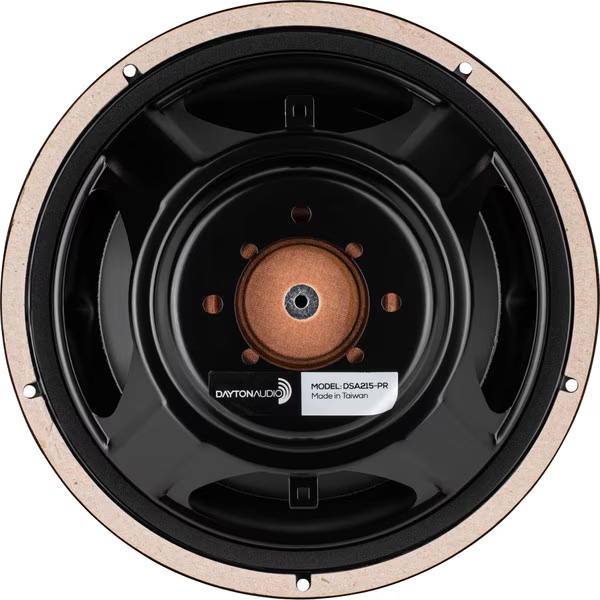

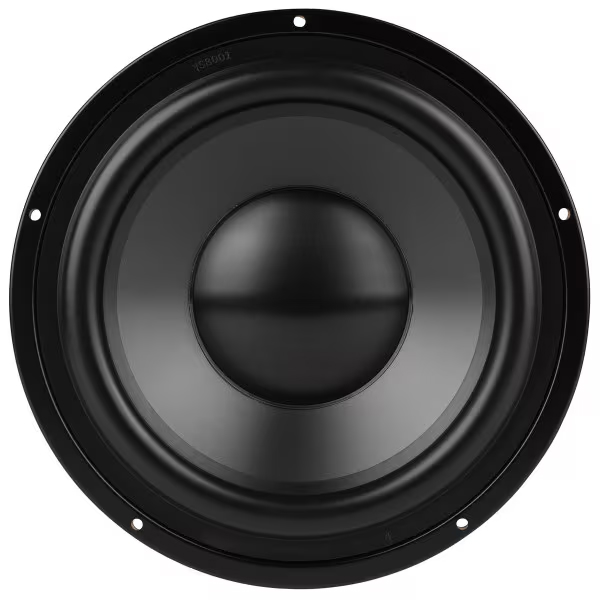

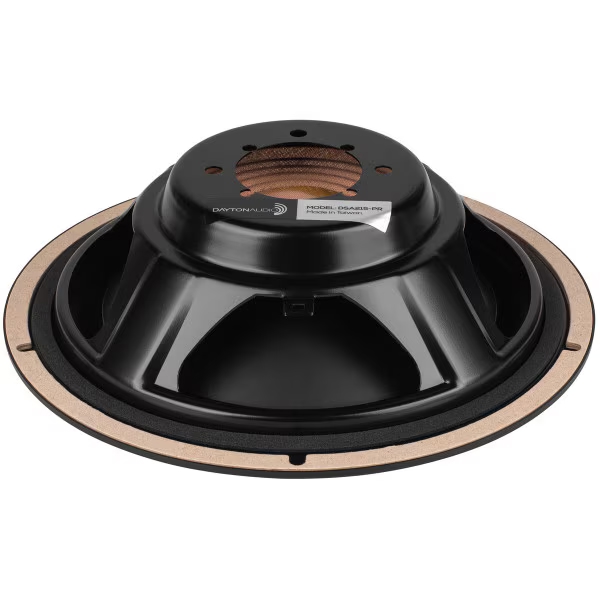

Dayton Audio DSA215-PR, 215mm (8in) Designer Series Aluminum Cone Passive Radiator
| Product Specifications | |
|---|---|
| Manufacturer | DAYTON AUDIO |
| Speaker Type | Passive Radiator |
| Nominal Diameter | 21cm |
| Impedance | - ohms |
| Power Handling (RMS) | - W |
| Frequency Response | - Hz |
| Sensitivity | - dB |
| Voice Coil Diameter | -mm |
Dayton Audio DSA215-PR 8" Designer Series Aluminum Cone Passive Radiator The Dayton Audio Designer Series passive radiators are excellent general-purpose passives suitable for replacement or for new construction. A built-in mass disc offers a good starting point for most designs, and a convenient M5 threaded hole (screw included) allows different types of weights to be added if desired. Cosmetically and mechanically, these passives match Dayton Audio's Designer Series drives, with a black anodized aluminum cone and medium-roll rubber surround for clean excursion and long life. The possibilities with these passives are endless, from stand mount two-ways to compact subwoofer systems. Specifications: • Fs: 25.6 Hz • Vas: 1.3 cu. ft. • Qms: 7.66 • Cms: 0.58 mm/N • Rms: 1.4 kg/s • Mms: 67 g • Sd: 211.2 sq. cm. • Xmax: 11 mm • Dimensions: Overall diameter: 8.50", Cutout diameter: 7.01", Depth: 2.30". Note: Adding mass to the passive radiator will decrease Fs and increase Qms. Tip: As a general rule, the passive radiator(s) should have at least double the displacement of air (Vd) as the active woofer(s)/subwoofer(s) in the system. To calculate Vd: Sd x Xmax = Vd
| FILENAME | ACTION |
|---|---|
| DSA215-PR SPECSHEET.pdf | Download |
