Dayton Audio NHP25Ti-4, 25mm (1in) Titanium Dome High Power Neodymium Tweeter 4 Ohm, 63mm Faceplate
Product Specifications | |
---|---|
Manufacturer | DAYTON AUDIO |
Tweeter Type | Titanium Dome Neodymium Tweeter |
Cone / Dome Diameter | 25mm |
Impedance | 4 ohms |
Power Handling (RMS) | 40 W |
Frequency Response | 3000 - 20000 Hz |
Sensitivity | 94 dB |

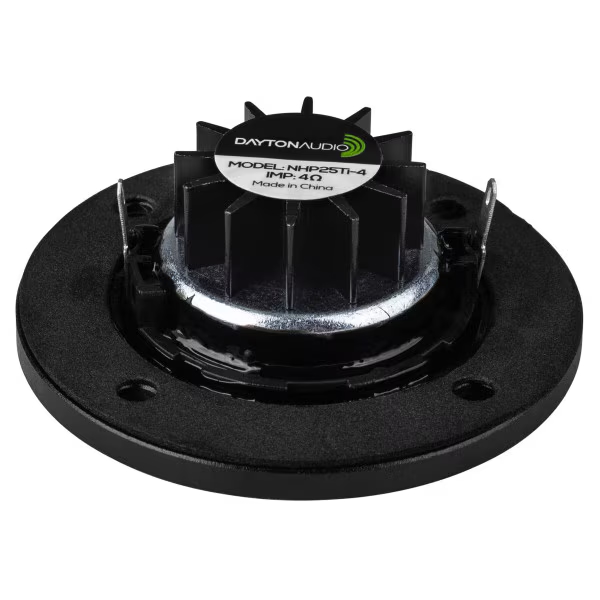

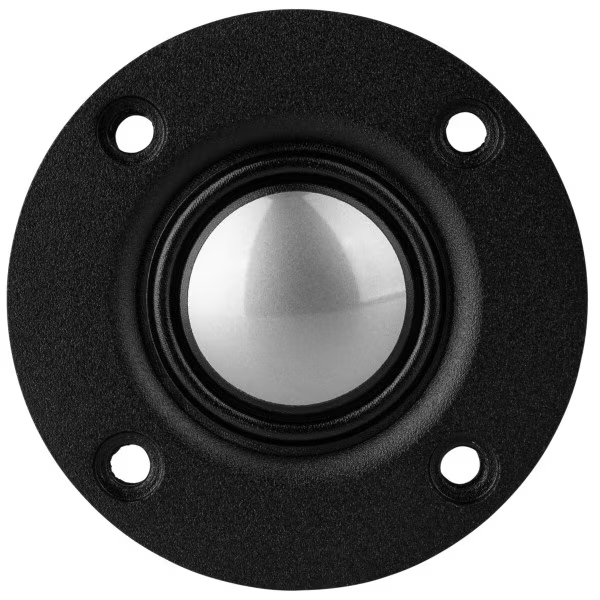

Dayton Audio NHP25Ti-4 1" Titanium Dome High Power Neodymium Tweeter 4 Ohm Dayton Audio's versatile NHP25Ti-4 is a 1" titanium-dome tweeter that offers the performance of more expensive tweeters in a compact and stylish package. The small yet powerful high temperature neodymium motor with attached aluminum heatsink and Ferrofluid-filled magnetic gap reduces power compression and improves long-term power handling. In addition, the carefully designed titanium diaphragm provides accurate treble response to over 20 kHz, excellent off-axis dispersion, and superb sonic detail. The NHP25Ti-4 includes a 2.5" cast aluminum faceplate, however Dayton Audio does offer an optional 4.09" (104 mm) and 4.33" (110 mm) faceplate allowing this tweeter to be used as a drop in replace for many common sized tweeters.
FILENAME | ACTION |
---|---|
nhp25ti4.pdf | Download |
