Dayton Audio Shadow Mount LCD37-TM Tilting TV Wall Mount 23"-37"

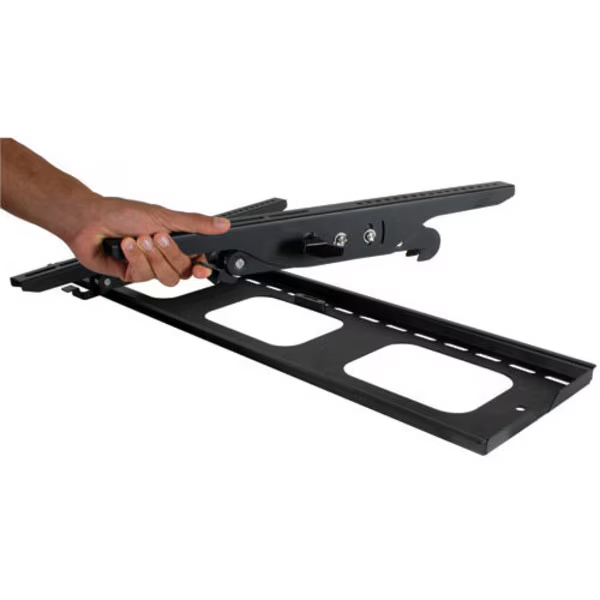

Shadow Mounts from Dayton Audio place the focus on your flat panel plasma and LCD television—not the mount. By using an inconspicuous flat black finish, the mount virtually disappears behind the display. Heavy-duty, solid-steel construction provides you with peace of mind, knowing your HDTV investment is held securely in place for years to come. Tilt mounts allow you to adjust the viewing angle ±15°, opening up placement options.

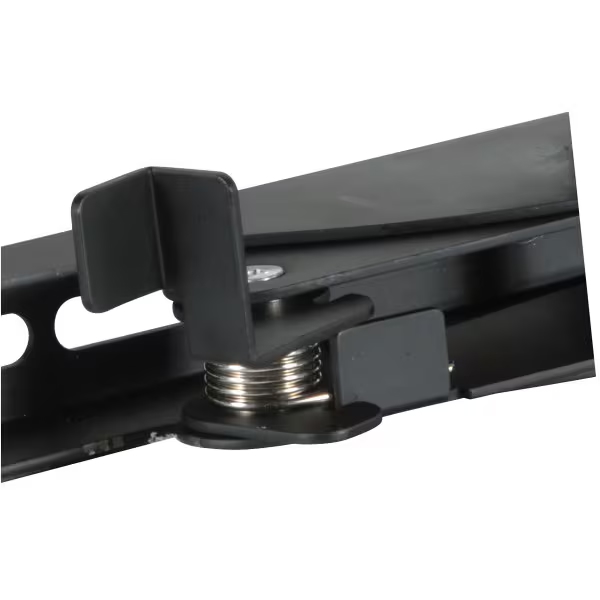

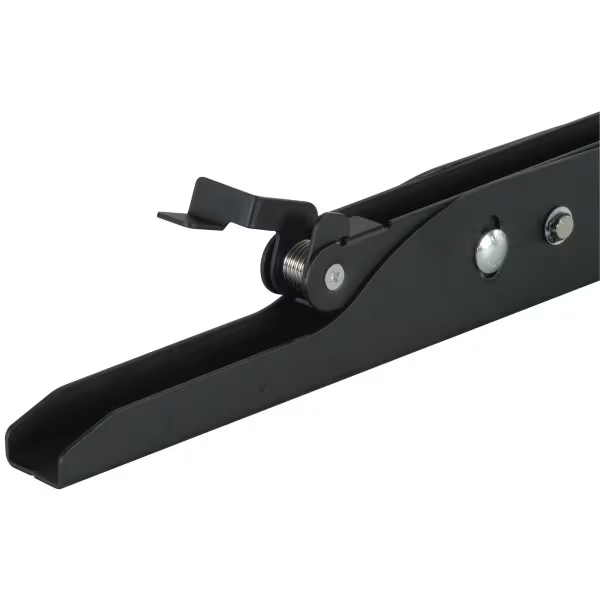

Adjustments are accomplished on the LCD37-TM's mounting arms by a quick turn of the knob, with no tools required. The patented Rail Clip™ is an exclusive feature that securely fastens the TV mount to the lower wall mount rail, eliminating the need for clumsy set screws and other awkward attachment devices. Lag bolts, concrete anchors, Phillips head mounting screws (M4, M5, M6 and M8), safety bolts, and easy-to-follow instructions are included. Note: Consult your TV's owners manual for VESA sizing information.
Dimensions and Specifications: • Wall bracket: 21" W x 9.3" H (532 x 235 mm) • TV bracket: 1.375" W x 14.3" H (35 x 350 mm) • Tilt adjustment: ±15° H • Minimum TV to wall distance (when tilted): 0.98" (24 mm) • Mounting width supported: 50-720 mm • Mounting height supported: 50-330 mm • Supported VESA sizes: 75, 100, 200 x 100, 200, 400 x 200 • Maximum weight capacity: 100 lbs. (45 kg) • UL® listed.
Note: Applicable television size ranges are based on VESA standards and will fit the listed screen sizes. To ensure that this specific TV mount is not exposed behind your TV, identify the length and width of your specific TV and be sure that the mounting bracket, plate, and or articulating arm does not extend beyond your television’s measurements.
