Dayton Audio Shadow Mount LCD60-TM Tilting TV Wall Mount 37"-90"
Shadow Mounts from Dayton Audio place the focus on your flat panel television—not the television mount. By using an inconspicuous flat black finish, the TV mount virtually disappears behind the television display.

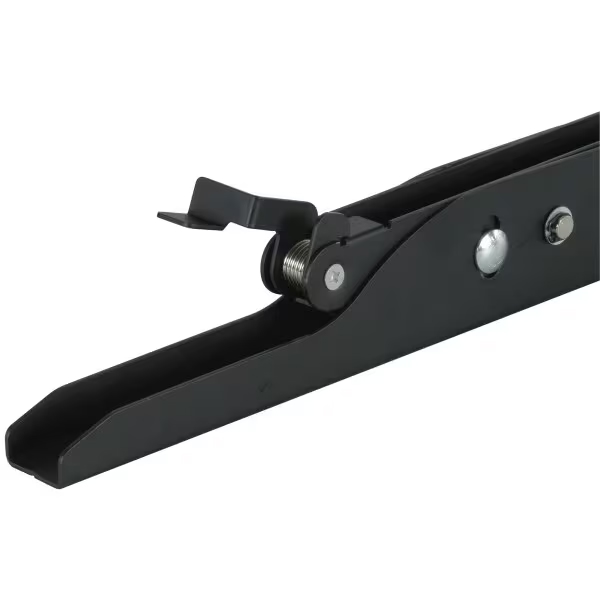

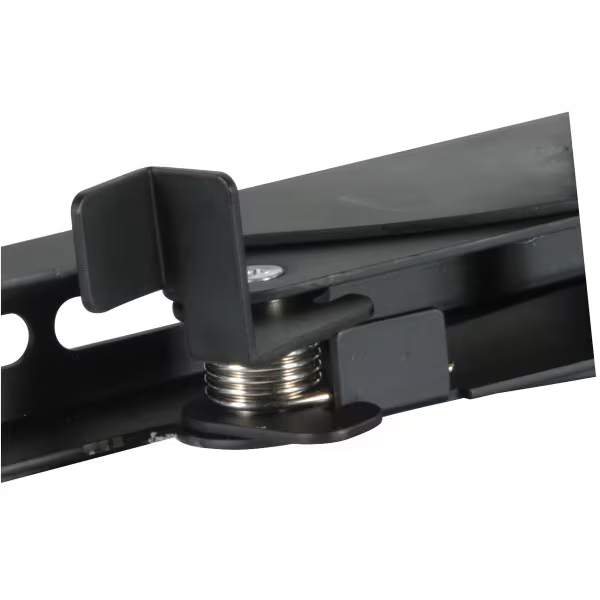

The LCD60-TM heavy-duty, solid-steel construction provides you with peace of mind, knowing your HDTV investment is held securely in place for years to come. The patented Rail Clip™ is an exclusive feature that securely fastens the TV mount to the lower wall mount rail, eliminating the need for clumsy set screws and other awkward attachment devices.
The Dayton Audio Shadow Mount LCD60-TM is compatible with 37"-90" LCD and Plasma TV displays that use up to a VESA 600 mm x 400 mm bolt pattern. Note: Consult your TV's owner's manual for VESA sizing information.
Note: Do not to exceed the weight limit of 175 lbs.
Specifications: • Mounting plate width: 32.36" (822 mm) • Mounting plate height: 9.25" (235 mm) • Mounting arm width: 1.375" (35 mm) • Mounting arm height: 20.87" (530 mm) • Tilt adjustment: ±15° • Minimum mount to wall distance: 3.1" (80 mm) • Mounting width supported: 50-770 mm • Mounting height supported: 50-480 mm • Supported VESA sizes: 75, 100, 200 x 100, 200, 400 x 200, 400 x 400, 600 x 400 • Maximum weight capacity: 175 lbs. (80 kg) • UL® listed.
Note: Applicable television size ranges are based on VESA standards and will fit the listed screen sizes. To ensure that this specific TV mount is not exposed behind your TV, identify the length and width of your specific TV and be sure that the mounting bracket, plate, and or articulating arm does not extend beyond your television’s measurements.
