Product information "DIY PreDIGin add-on"

Please note: This product is only compatible with the DIY PreAmplifier

The DIY PreDIGin add-on is designed to complete the DIY PreAmplifier. DIY PreDIGin is the digital companion for audio enthusiasts seeking the ultimate listening experience.

At the heart of the DIY PreDIGin lies cutting-edge technology, including high-quality components such as the AK5574 ADC IC, dual CS43198 DAC ICs operating in Mono mode, SRC4392 for superior sample rate conversion, and the ADSP21489 DSP for advanced signal processing capabilities.

One of the standout features of the DIY PreDIGin is its exceptional DAC audio specifications. With an output level of 14dBu, distortion rated at an impressive -117.5dB, a signal-to-noise ratio of 128.5dB, and a dynamic range of 127dB, the DIY PreDIGin ensures pristine audio reproduction, capturing every nuance of your favorite music

Versatility is another key strength of the DIY PreDIGin, offering support for a wide range of audio formats and connectivity options. Whether you prefer traditional sources like S/PDIF, Optical, and AES/EBU up to 192kHz/24bits, or cutting-edge digital interfaces like USB type B and Network1 up to 384kHz/32bits, the DIY PreDIGin has you covered. Additionally, Bluetooth connectivity at 48kHz/16bits provides convenient wireless streaming options.

For those looking to take their audio setup to the next level, the DIY PreDIGin includes a FusionConnect board. This optional feature transforms your DIY PreAmplifier into the master device in a FusionAmp setup, offering seamless integration and enhanced control over your entire FusionAmp based audio system.

With its exceptional performance, versatility, and innovative features, the DIY PreDIGin sets a new standard for DIY audio enthusiasts. Elevate your listening experience and unleash the full potential of the DIY PreAmplifier with the DIY PreDIGin add-on.

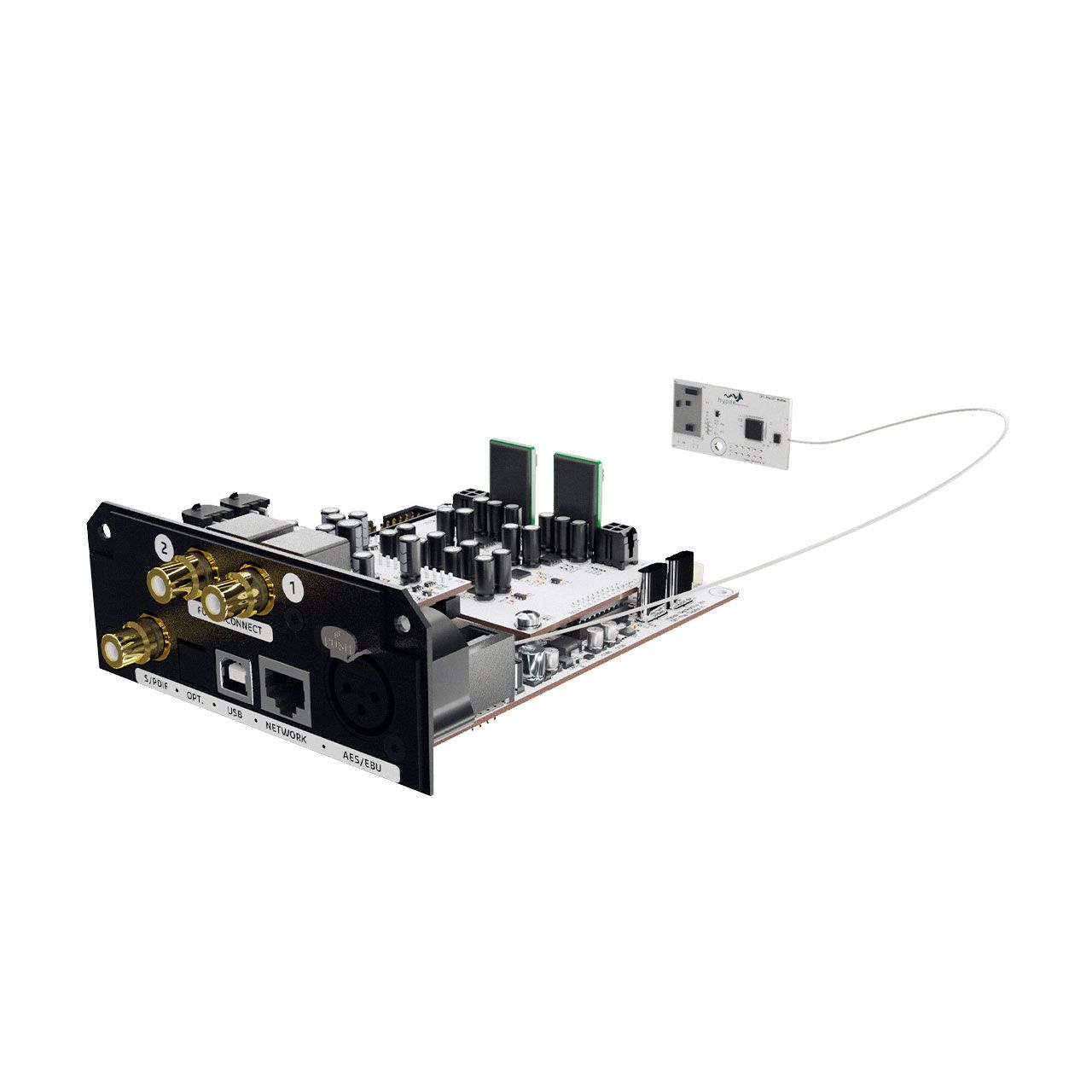

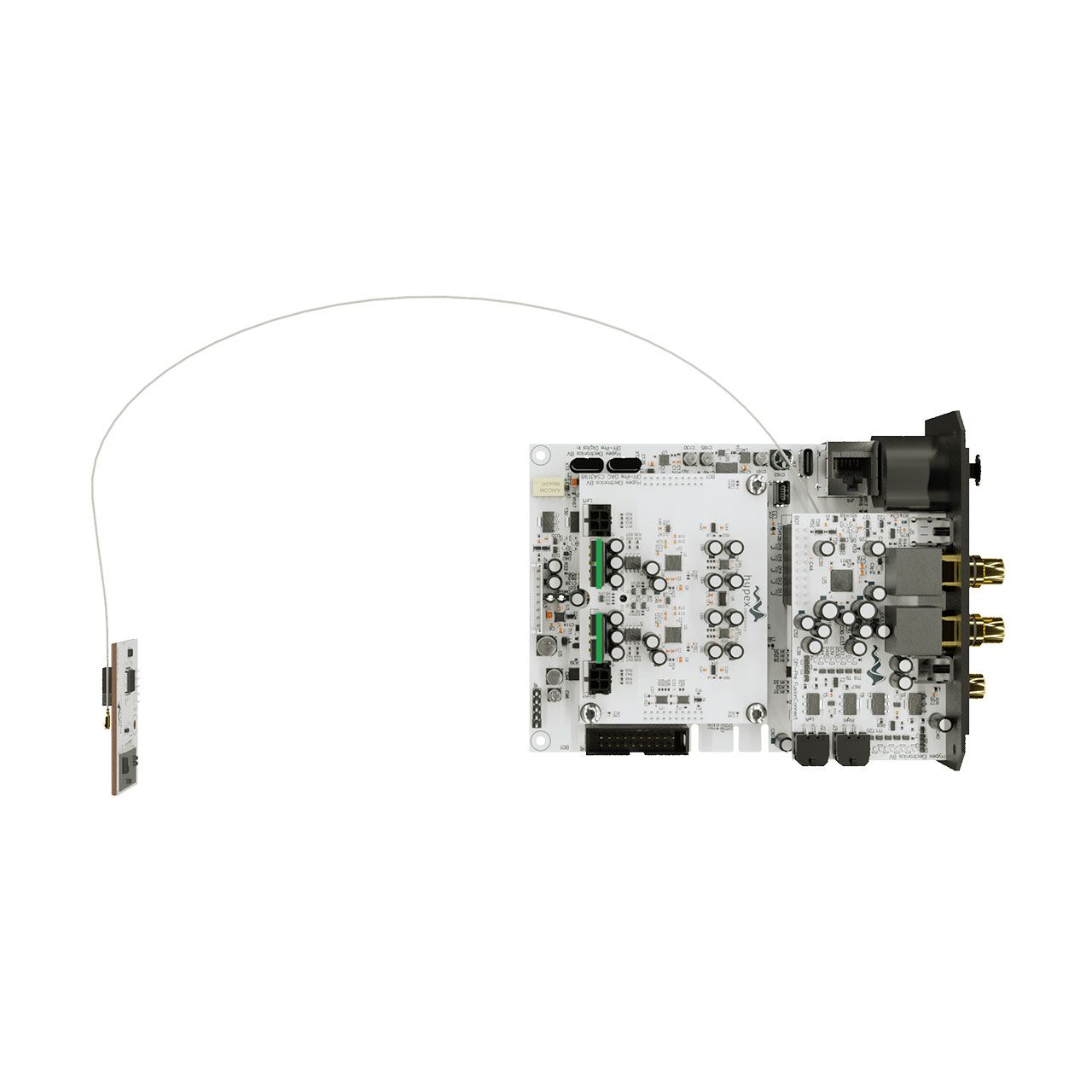

This kit contains:

  • • Mainboard with DAC module
  • • Fusion Connect board
  • • Bluetooth module
  • • Complete cable set
  • • Back plate
  • • All needed mounting materials
  • • Assembly instructions

Used Chips:

ADC IC AK5574 (4-to-2 mode) Used for FusionConnect
DAC ICs Dual CS43198 Two CS43198 in mono mode
SRC SRC4392
DSP ADSP21489 Used for DSD-decoding FusionConnect

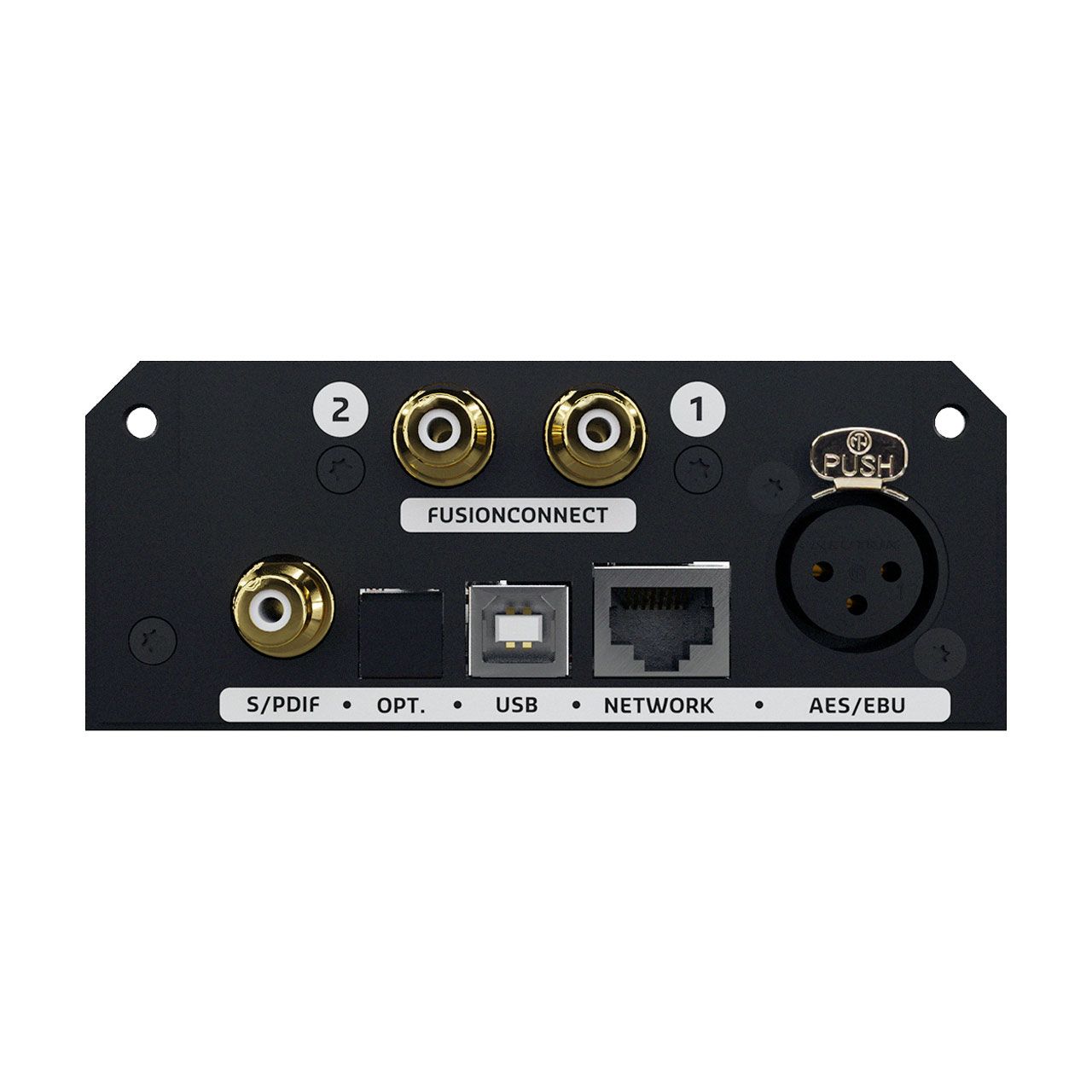

Features:

Inputs Selectable DAC-filters FusionConnect
S/PDIF Fast, low lat. (default) Master in master/slave setup
Optical Fast, linear Digital put-through analog output of pre-amplifier (via ADC)
USB Slow, low latency
AES/EBU Slow, linear
Bluetooth Non oversampling
Network


Audio performance data DAC:

All audio measurements are done with AES17 20kHz filter and no weighting.

Item Symbol Min Typ Max Unit Notes
Output level Vout     14 dBu (4.1 Vrms)
Distortion THD+N     -117.5 dB (@ 0 dBFS)
Signal-to-Noise ratio SNR     128.5 dB
Dynamic range DR     127 dB
Channel crosstalk       -147 dB


Audio performance data ADC:

All audio measurements are done with AES17 20kHz filter and no weighting.

Item Symbol Min Typ Max Unit Notes
Input level Vout     14 dBu (4.1 Vrms)
Distortion THD+N     -112 dB (@ -1 dBFS)
Signal-to-Noise ratio SNR     119 dB
Dynamic range DR     119 dB
Channel crosstalk       -139 dB
Bandwith FC     40 kHz


Supported formats:

Input PCM support DSD support Notes
S/PDIF Up to 192 kHz / 24 bits No
Optical (Toslink) Up to 192 kHz / 24 bits No
USB type B Up to 384 kHz / 32 bits DoP: up to DSD256
Native: up to DSD256

Network Up to 384 kHz / 32 bits DoP: up to DSD256
Native: up to DSD256
Note 1
Bluetooth 48 kHz / 16 bits No
AES/EBU Up to 192 kHz / 24 bits No


Note 1: An additional internally installed streaming board is connected to an internal USB port of the digital input board.
Supported formats depend on the chosen streaming board and software.



Fusion Connect:

Function PCM support DSD support Notes
S/PDIF (Output) 93.75 kHz / 24 bits No Note 2


Note 2: All formats, PCM and DSD, are converted to PCM 93.75 kHz



Please note: This product is only compatible with the DIY PreAmplifier
