NILAI500MONOKIT

Description
/Nilai® Class D technology is here!
The Nilai500DIY is the long-awaited successor to the acclaimed NC400. Its polished shiny exterior is true reflection of what is to be found inside. The engine room houses a brand new control-loop topology that really boosts performance to the next level. It outperforms Ncore by not less than 10 times!

The module comes with a fully discrete buffer stage and on-board voltage regulators, just like the NC400 it’s replacing. Together with carefully selected high-grade components, the Nilai500DIY is our best sounding amplifier to date. We have created a truly special technique which sets a new benchmark for high-end audio applications and is a truly unique amplifier module for our DIY community.

Combining the Nilai500DIY with the matching PS500DIY will result in the best possible ready-to-go DIY-experience possible!

With the easy to follow instructions you will be able to realize a high end power amplifier at a fraction of the cost and all of this can be done in just 30-60 minutes. Combined with our DIYclassD PreAmplifier kit you can create a complete set of superbly sounding equipment.

All you need to bring to the table is this box and a few tools: • Wire cutter (or combination plier)• 5.5 mm hex nut driver (or combination plier) • 7 mm hex nut driver (or combination plier) • 3.5 mm flat type screwdriver

Warranty: 5 years / 20.000h

Key Features

Ultra Low Distortion
Very Low Idle Power
Very Low Noise
Very Low Output Impedance
Incorporates Audiophile Components
Specifications:

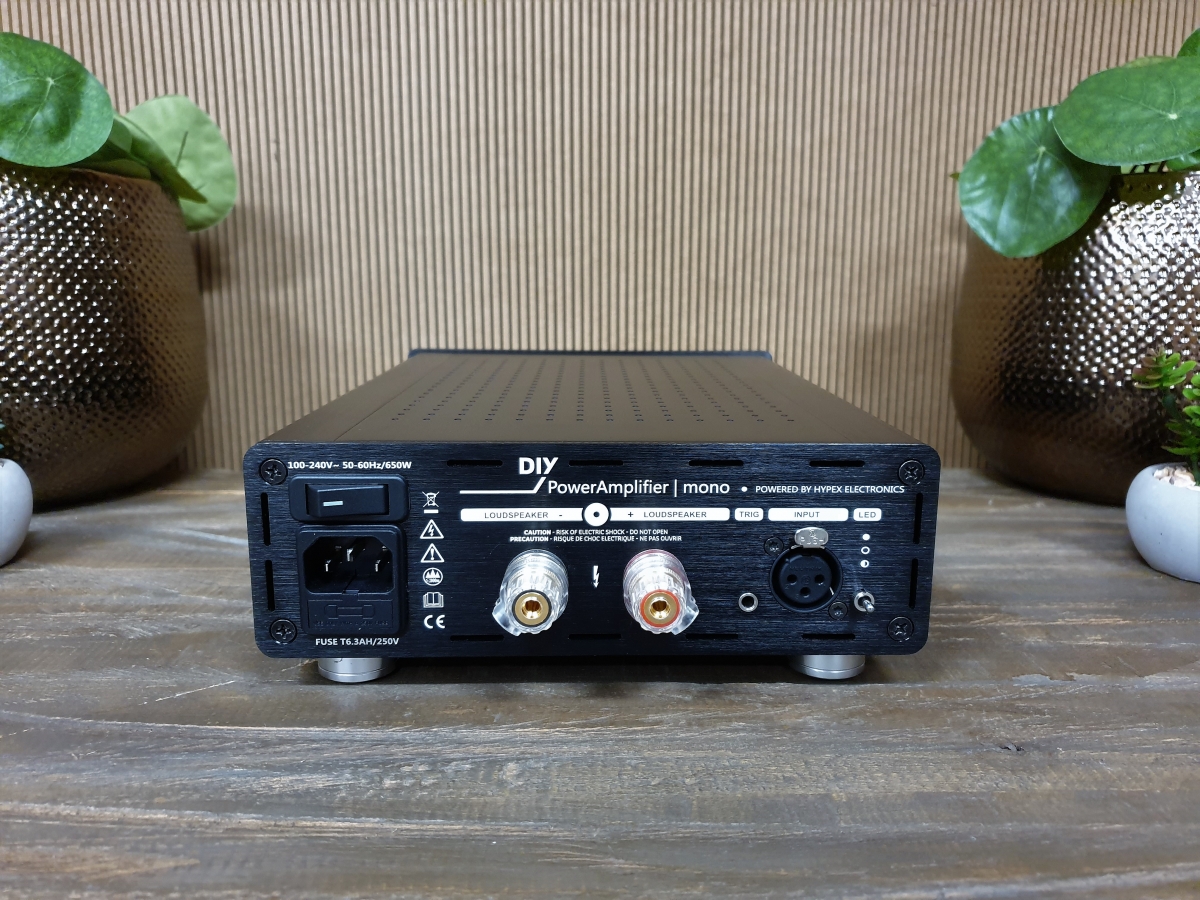

Inputs

1 x Balanced XLR
1 x Trigger 12V

Outputs

1 x Goldplated Bindingpost Set
       (Banana plug, Spade plug or Bare wire)

Specs
Technique Nilai
Power (2Ω) 500W x 2 @ 2Ω, 1 kHz, THD < 1%
Power (4Ω) 525W x 2 @ 4Ω, 1 kHz, THD < 1%
Power (8Ω) 260W x 2 @ 8Ω, 1 kHz, THD < 1%
Channels 1
Weight 3,45 kg
Dimensions mm 205*300*80 mm
Mains voltage input 100 - 240Vac
Automatic input voltage selection universal mains

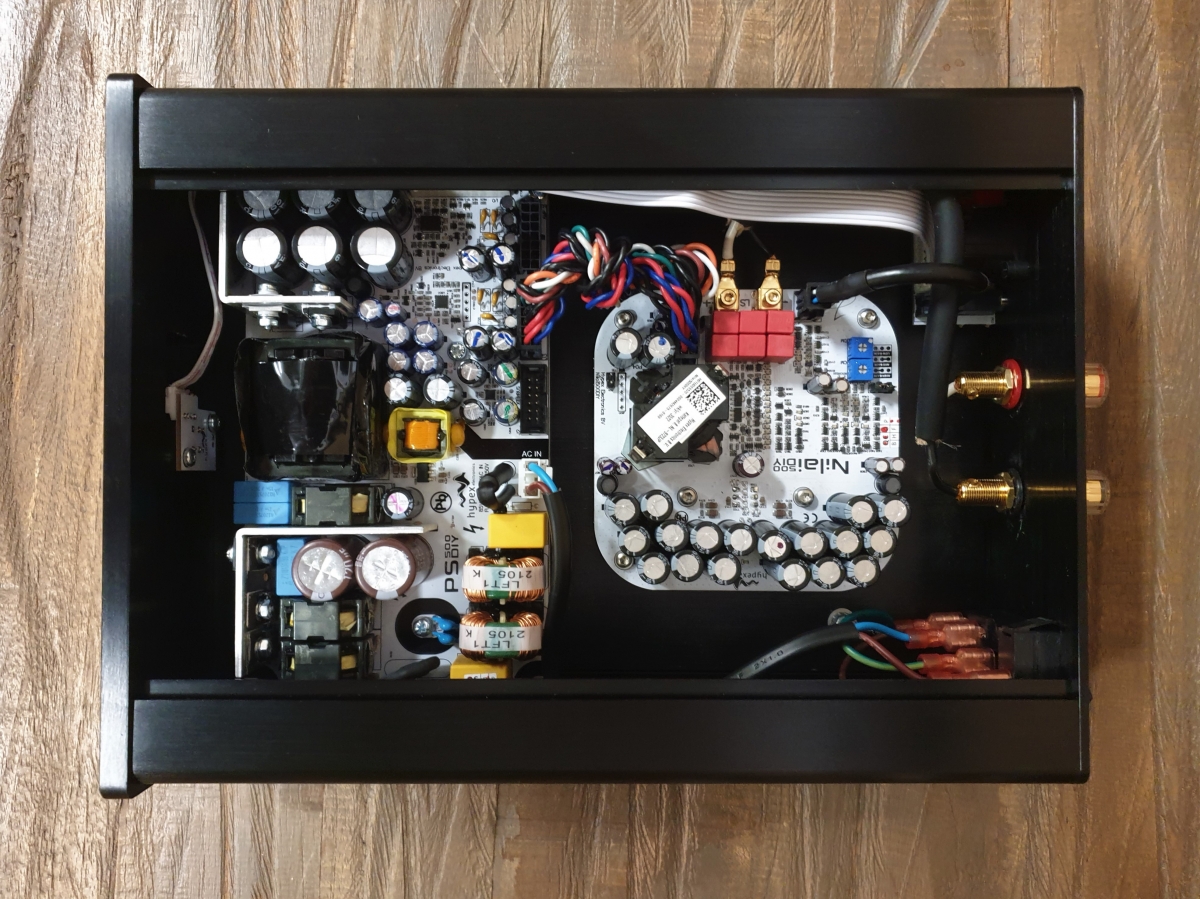

This kit contains:

Complete DIYclassD Nilai500DIY mono case “matte black”,
Complete internal cable harness,
PS500DIY power supply,
Nilai500DIY amplifier module,
Inputboard & Frontboard,
All needed mounting materials,
Assembly instruction,
1.5mm Allen key,
2.5mm Allen key,
TX-10 Torx key,
TX-20 Torx key
