NE85W04
Out of stock

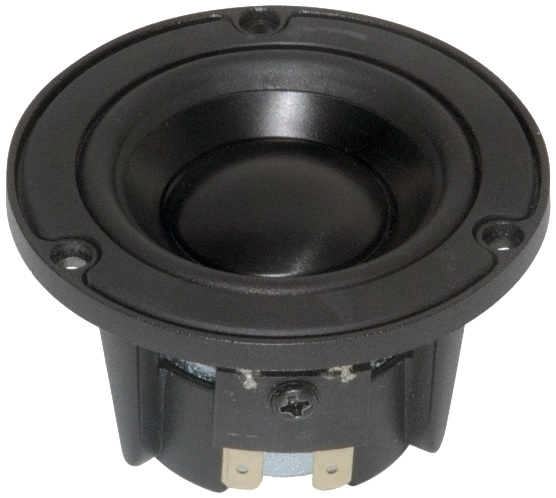

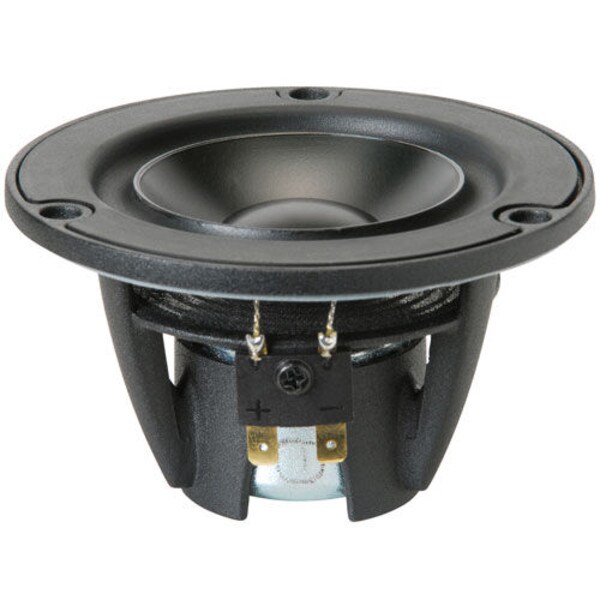

Peerless NE85W04, 85mm (3.4in / 3-3/8in) Aluminum Cone Neodymium Fullrange, with 26mm (1in) Voice Coil, 4ohm.
CA$46.78Each
- NE85W04
- PEERLESS
Peerless NE85W04, 85mm (3.4in / 3-3/8in) Aluminum Cone Neodymium Fullrange, with 26mm (1in) Voice Coil, 4ohm.
| Product Specifications | |
|---|---|
| Manufacturer | PEERLESS |
| Speaker Type | Aluminum Cone Neodymium Fullrange |
| Nominal Diameter | 8.5cm |
| Impedance | 4 ohms |
| Power Handling (RMS) | 25 W |
| Frequency Response | 100 - 20000 Hz |
| Sensitivity | 82.7 dB |
| Voice Coil Diameter | 26mm |

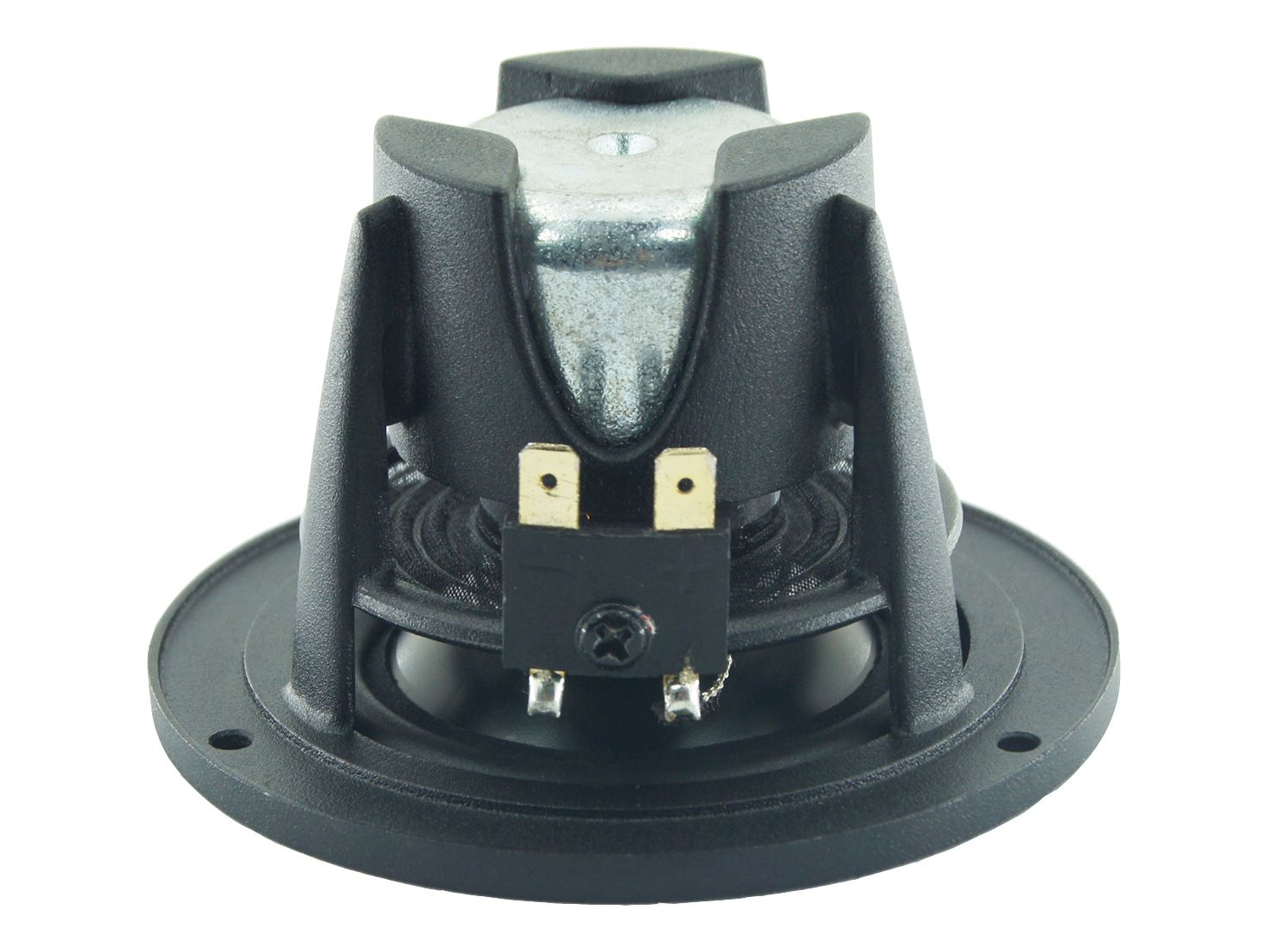

Tymphany's NE Series full-range drivers feature an innovative sculpted, open cast aluminum basket design that minimizes internal acoustic reflections and acts as the neodymium motor's heatsink.
Key Features
- Cast aluminum frame acts as a heatsink
- Sculpted design promotes cooling and reduces reflections
- High-strength compact neodymium motor
- Aluminum cone with half-roll rubber surround
- Long-throw voice coil on titanium former
- Copper pole piece cap for extended HF response
- 4 ohm nominal impedance
| FILENAME | ACTION |
|---|---|
| ne85w04-1.pdf | Download |
