Product Specifications | |
---|---|
Manufacturer | SB ACOUSTICS (PAIR) |

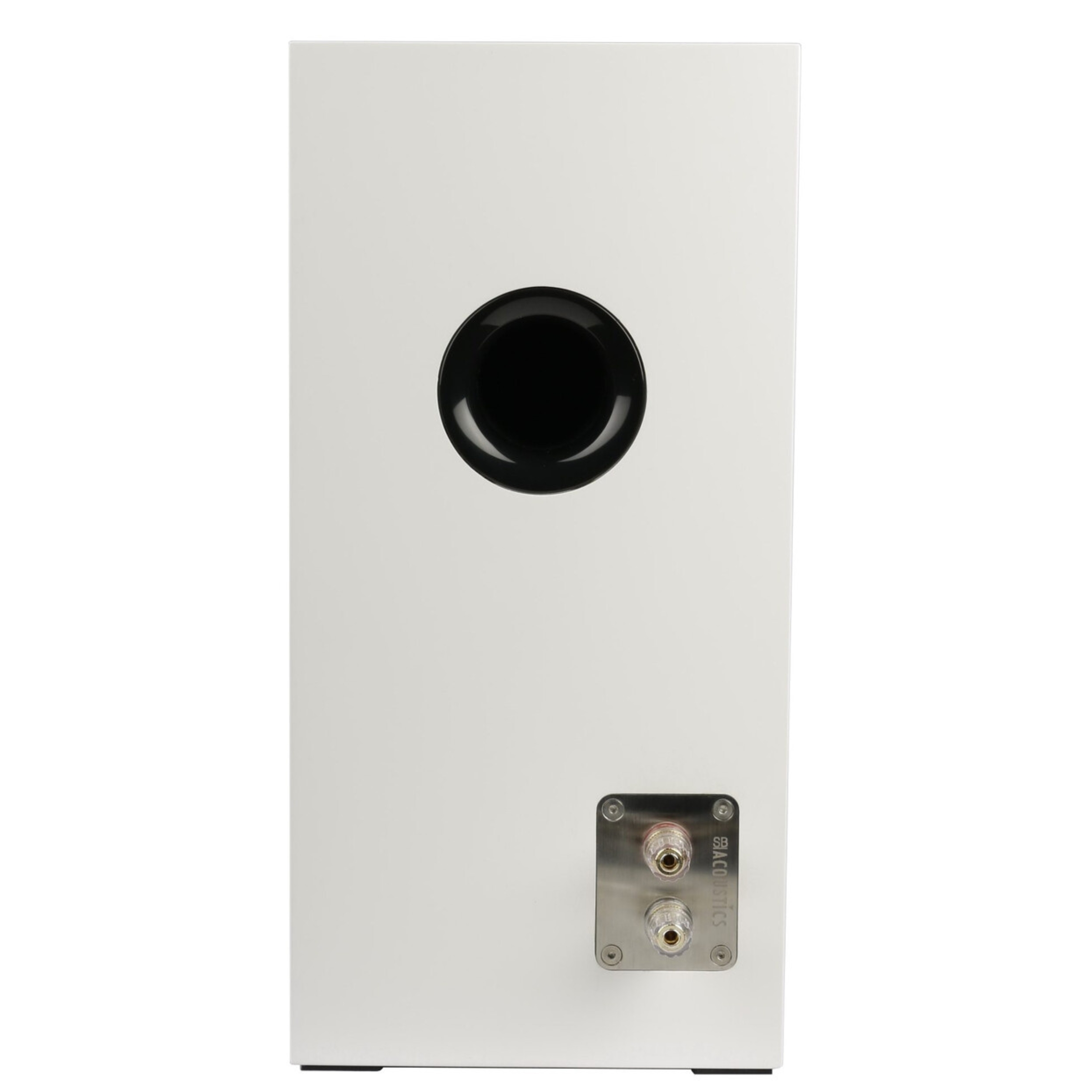

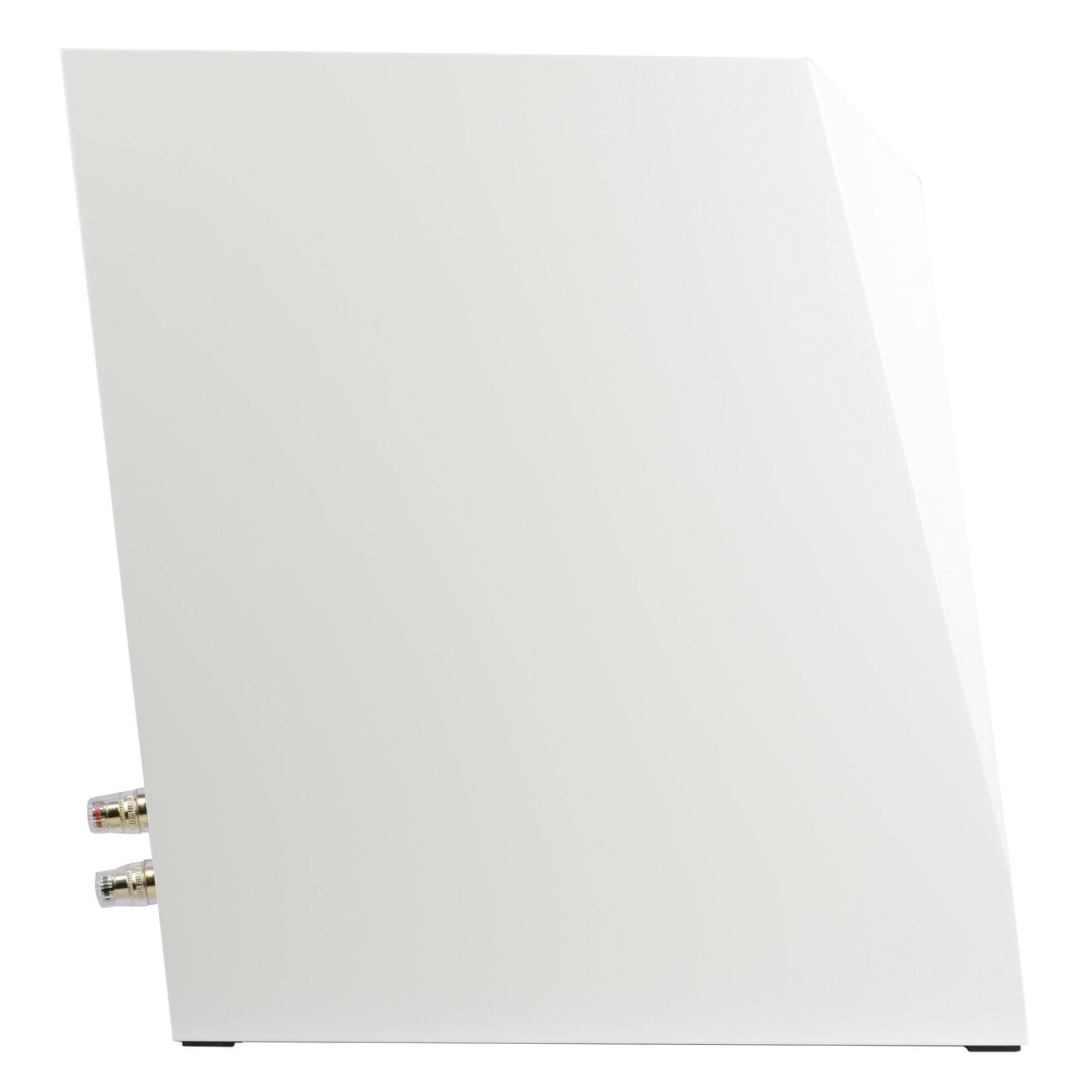

Summary | The ARA is a 2 way bass reflex in 19 L box. Frequency response is 36.5Hz to 25KHz. Sensitivity: 87db 1W/1M The tweeter is the SB Acoustics Satori TW29R. (TW29R-B is an option) The woofers are the SB Acoustics Satori MW16P-4. (MW16PNW-4 is an option) The low pass networks are 3rd order designs with compensation. The high pass network employs a conventional 2nd order filter with attenuation. The X-over frequency is 3KHz.While the ARA is the smaller brother of RINJANI with same design concept.PARTS ONLY. CABINETS NOT INCLUDED! |
KIT CONTENT | |||||
QT | PART # | ITEM | MANUFACTURER | ||

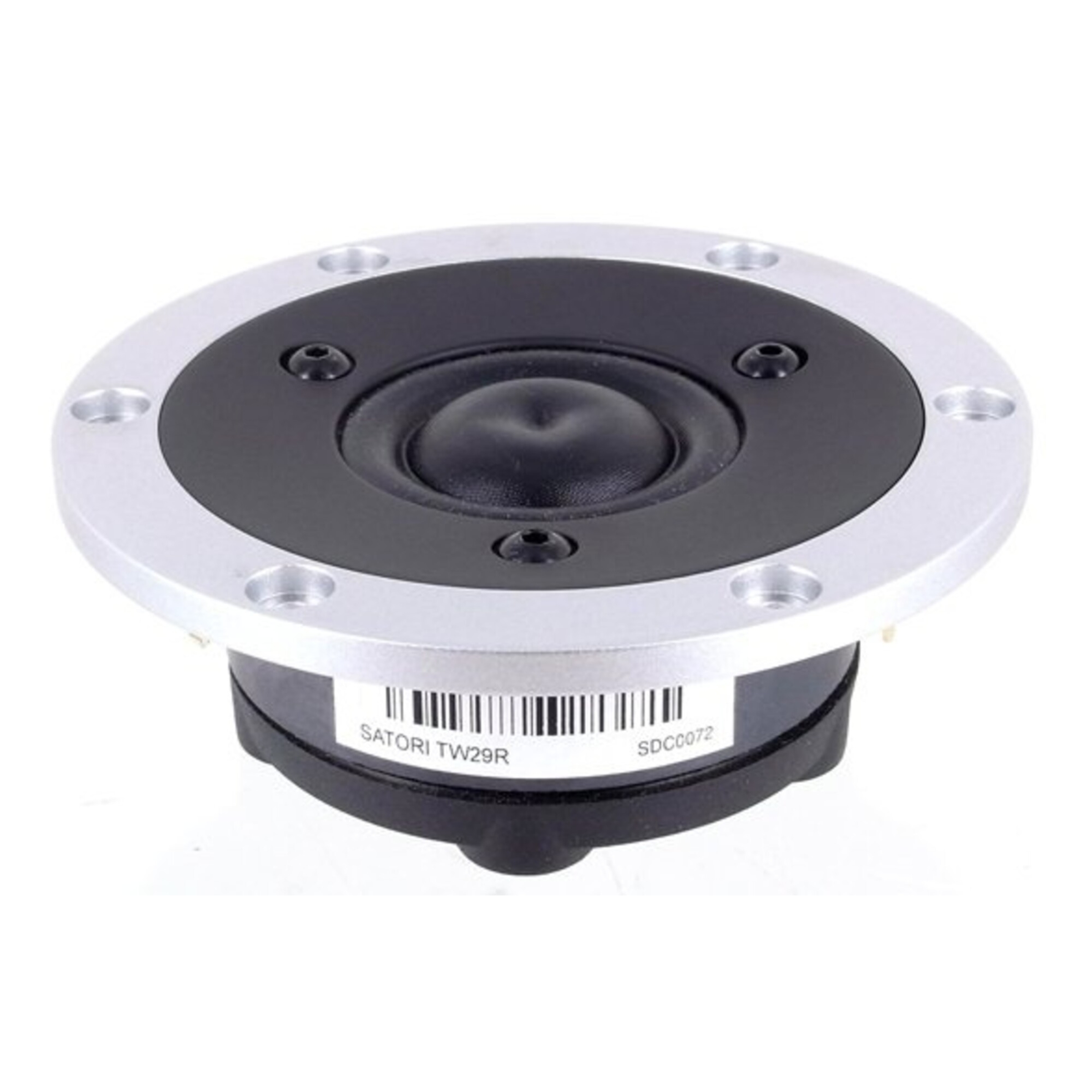

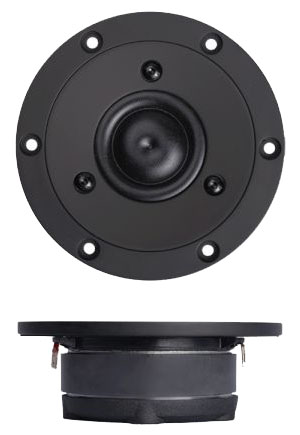

2 | TW29R | 25mm Ring 10cm SBA | SB ACOUSTICS | ||

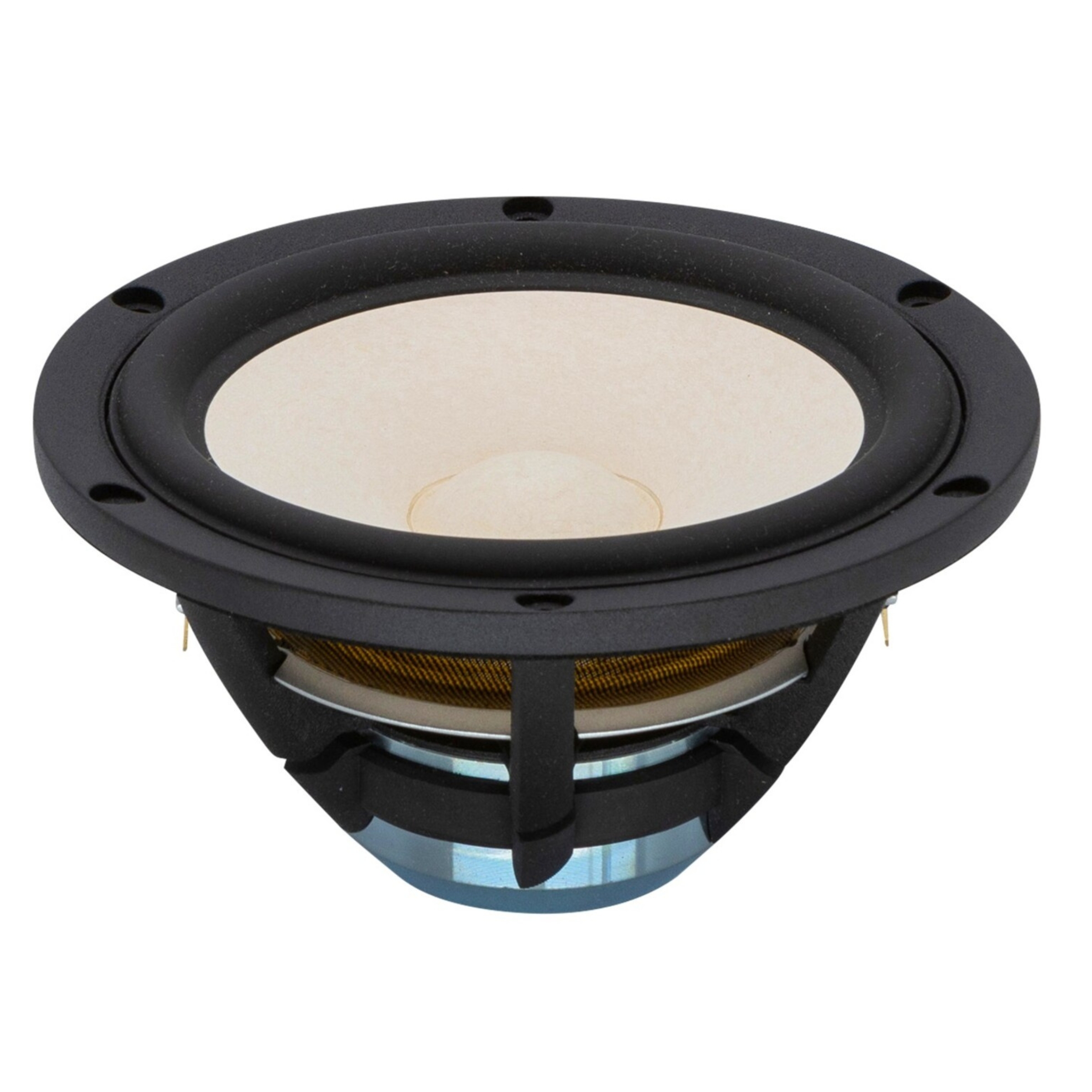

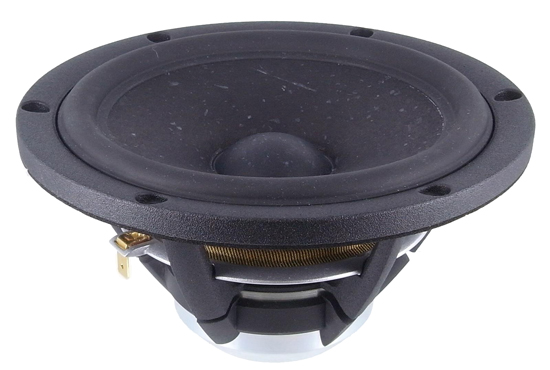

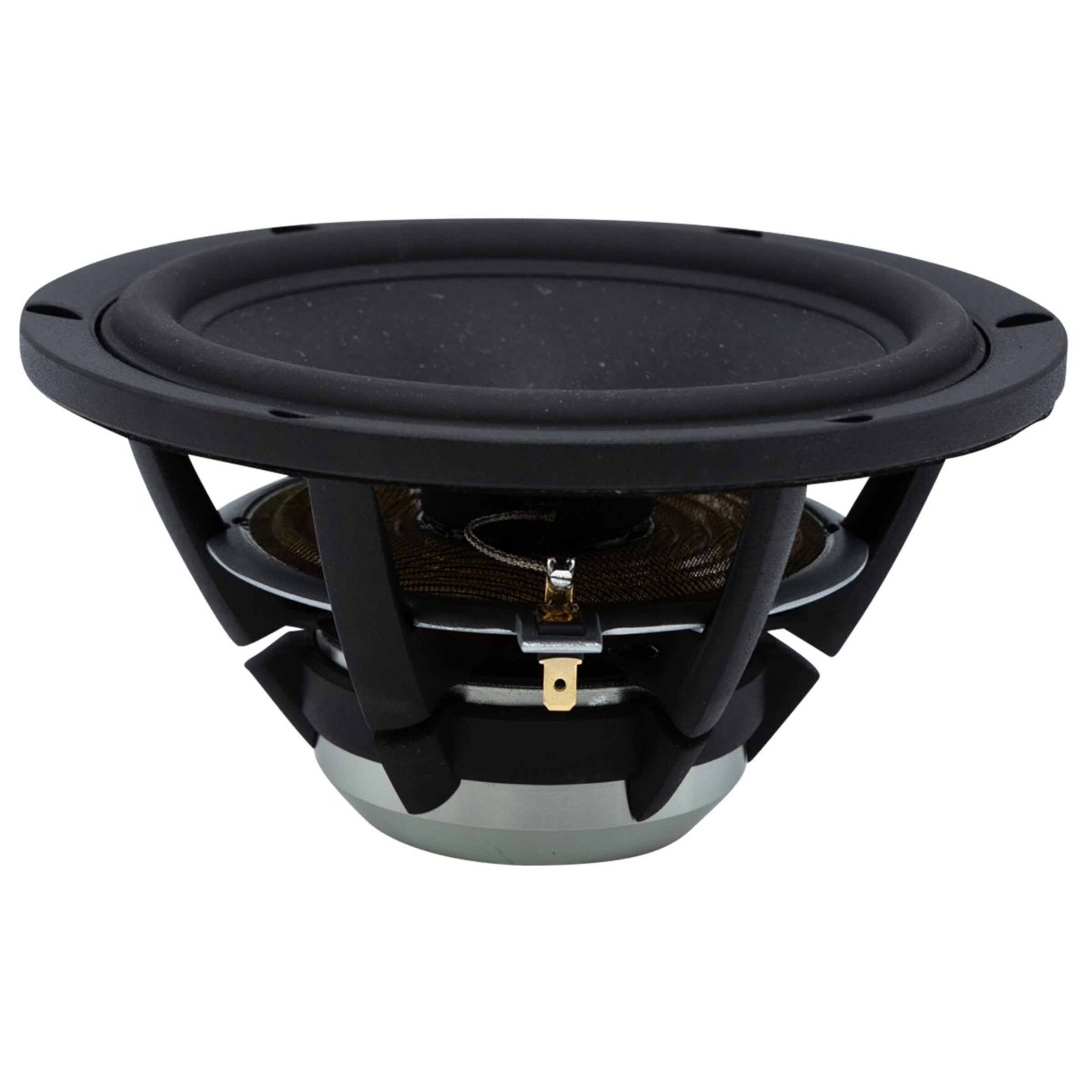

2 | MW16P-4 | 17cm 36mm Papy SBA | SB ACOUSTICS | ||
4 | 858-LU | Binding Post Gold 8x38mm | SOLEN | ||
2 | SBPP-SI | Plate Term. 104x104mm Silver | DAYTON AUDIO | ||
32 | OXSOCKET6X3/4 | Hex Socket Screw #6x3/4 | SOLEN | ||
12 | 6X3/4P | Pan Screw #6x3/4 | SOLEN | ||
2 | PSP2-BKNT | Precision Port Kit 2"x11" | PRECISION SOUND | ||
2 | POLYESTER | Fiberflex 38mmx12x60" | SOLEN | ||
8 | CLASSIC1.6 | Tin Plated OFC 2x1.6mm | SUPRA CABLES | ||
2 2 | GFD205-1614R GFD250-1614R | Fem. Disc. .205" 16/14 RED Fem. Disc. .250" 16/14 RED | SOLEN SOLEN | ||
2 | GFD205-1614B | Fem. Disc. .205" 16/14 BLACK | SOLEN | ||
2 | GFD110-1614B | Fem. Disc. .110" 16/14 BLACK | SOLEN | ||
2 | MO1000J1R5 | 1.5 ohm 10W | SOLEN | ||
2 | PB560 | 5.6 mfd 400v 22x33 | SOLEN | ||
4 | MO1000J2R7 | 2.7 ohm 10W | SOLEN | ||
2 | S20.20 | .20mH 0.8 10x19x38 | SOLEN | ||
2 | S201.1 | 1.2mH 0.8 13x25x51 | SOLEN | ||
2 | MO1000J3R3 | 3.3 ohm 10W | SOLEN | ||
2 | B05A100K156 | 15 mfd 100v 12x31 | SOLEN | ||
2 | B05A100K476 | 47 mfd 100v 16x34 | SOLEN | ||
2 | L141.2 | 1.2mH 1.5 19x38x76 | SOLEN | ||
2 | PB470 | 4.7 mfd 400v 20x33 | SOLEN | ||
2 | L14.62 | .62mH 1.5 16x32x64 | SOLEN | ||
2 | MO1000J6R8 | 6.8 ohm 10W | SOLEN | ||
1 | TW29-GRILL | TW29 Magnetic Grill (PAIR) | SB ACOUSTICS | ||
1 | MW16-GRILL | MR & MW16 Magnetic Grill (PAIR) | SB ACOUSTICS | ||

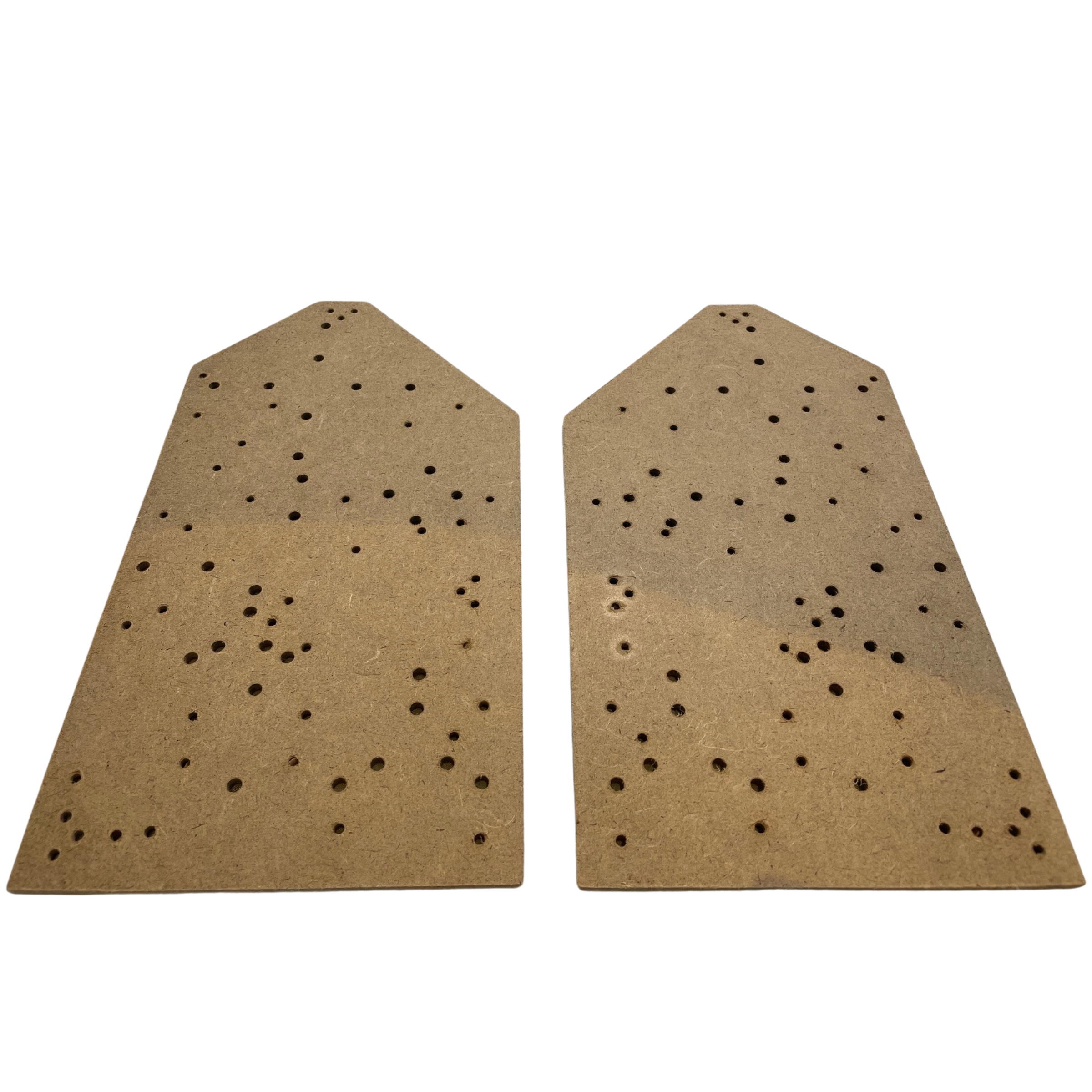

1 | ARA XVR BOARDS | Crossover Boards for ARA Kit (PAIR) | SOLEN | ||
6 | 322GDS | Crossover Terminals | SOLEN | ||
30 | TY5242MX | Ty-raps for Crossover Assembly | SOLEN |
