SB Acoustics Satori Ara Tx, 2way Kit Pair with MW16TX-4 and TW29TXN-B-8.
CA$1,979.65 Pair CA$2,329.00
Choose another model
  • Choose another model
  • MICRO (2way Bookshelf) CA$262.65 Pair CA$309.00
  • MICRO C (2way Bookshelf) CA$390.15 Pair CA$459.00
  • ARYA (2.5way Floorstanding) CA$959.65 Pair CA$1,129.00
  • RINJANI (2.5way Floorstanding) CA$1,767.15 Pair CA$2,079.00
  • RINJANI BE (2.5way Floorstanding) CA$2,464.15 Pair CA$2,899.00
  • ARA (2way Bookshelf) CA$1,274.15 Pair CA$1,499.00
  • ARA BE (2way Bookshelf) CA$1,894.65 Pair CA$2,229.00
  • SASANDU (3way Floorstanding) CA$3,416.15 Pair CA$4,019.00
  • RINJANI TX (2.5way Floorstanding) CA$2,872.15 Pair CA$3,379.00
  • SASANDU TX (3way Floorstanding) CA$4,155.65 Pair CA$4,889.00
  • GEMA (3way Monitor) CA$1,784.15 Pair CA$2,099.00
Product Specifications
Manufacturer SB ACOUSTICS (PAIR)
Summary

The ARA TX features the top of the line TeXtreme® midwoofer SATORI MW16TX-4 and pairs it with the TeXtreme® tweeter SATORI TW29TXN-B-8 for a visually and acoustically stunning match.

Compared to the ARA and ARA Be the crossover topology is realised differently on the ARA TX. In the low frequency section there is only one single component directly in series with the signal path to the 6½” SATORI MW16TX-4. This series inductor is followed by a number of parallel LCR-networks to further shape the response and for break up control as well as perfect integration to the 29mm Textreme® tweeter and optimised tweeter network.

The result is very open and transparent sound that is both natural and very relaxed. The bass is deep and very convincing for a stand mount speaker.

The ARA’s faceted baffle is specially designed to reduce high frequency diffraction and yields superb imaging qualities. The 7° reclined cabinet ensures good time alignment resulting in sublime staging and pin point placement of instruments.

PARTS ONLY. CABINETS NOT INCLUDED!



KIT CONTENT

QT PART # ITEM MANUFACTURER
2 TW29TXN-B-8 29mm Txtm 10cm SBA SB ACOUSTICS
2 MW16TX-4 17cm 36mm Txtm SBA SB ACOUSTICS
4 858-LU Binding Post Gold 8x38mm SOLEN
2 SBPP-SI Plate Term. 104x104mm Silver DAYTON AUDIO
32 OXSOCKET6X3/4 Hex Socket Screw #6x3/4 SOLEN
12 6X3/4P Pan Screw #6x3/4 SOLEN
2 PSP2-BKNT Precision Port Kit 2"x11" PRECISION SOUND
2 POLYESTER Fiberflex 38mmx12x60" SOLEN
8 CLASSIC1.6 Tin Plated OFC 2x1.6mm SUPRA CABLES

2

2

GFD205-1614R

GFD250-1614R

Fem. Disc. .205" 16/14 RED

Fem. Disc. .250" 16/14 RED

SOLEN
2 GFD205-1614B Fem. Disc. .205" 16/14 BLACK SOLEN
2 GFD110-1614B Fem. Disc. .110" 16/14 BLACK SOLEN
2 MO1000J2R7 2.7 ohm 10W SOLEN

2

4

PPE390

S20.27

3.9 mfd 630v 23x38

.27mH .8 10x19x38

SOLEN

SOLEN


2 MO1000J15R 15 ohm 10W SOLEN
2 MO1000J1R0 1.0 ohm 10W SOLEN
2 S201.5 1.5mH 0.8 13x25x51 SOLEN
2 MO1000J10R 10 ohm 10W SOLEN
2 PA4700 47 mfd 250v 37x53 SOLEN
2 L14.82 .82mH 1.5 19x38x76 SOLEN
4 S201.2 1.2mH 0.8 13x25x51 SOLEN
2 AOC1600G6R8 6.8 ohm 16W 2% 9x55mm NI SOLEN
2 PB2700 27 mfd 400v 34x53 SOLEN

2

2

2

2

MO1000J8R2

PB180

MO1000J1R2

PB330

8.2 ohm 10W

1.8 mfd 400v 16x25

1.2 ohm 10W

3.3 mfd 400v 17x33

SOLEN

SOLEN

SOLEN

SOLEN


1 TW29-GRILL TW29 Magnetic Grill (PAIR) SB ACOUSTICS
1 MW16-GRILL MR & MW16 Magnetic Grill (PAIR) SB ACOUSTICS

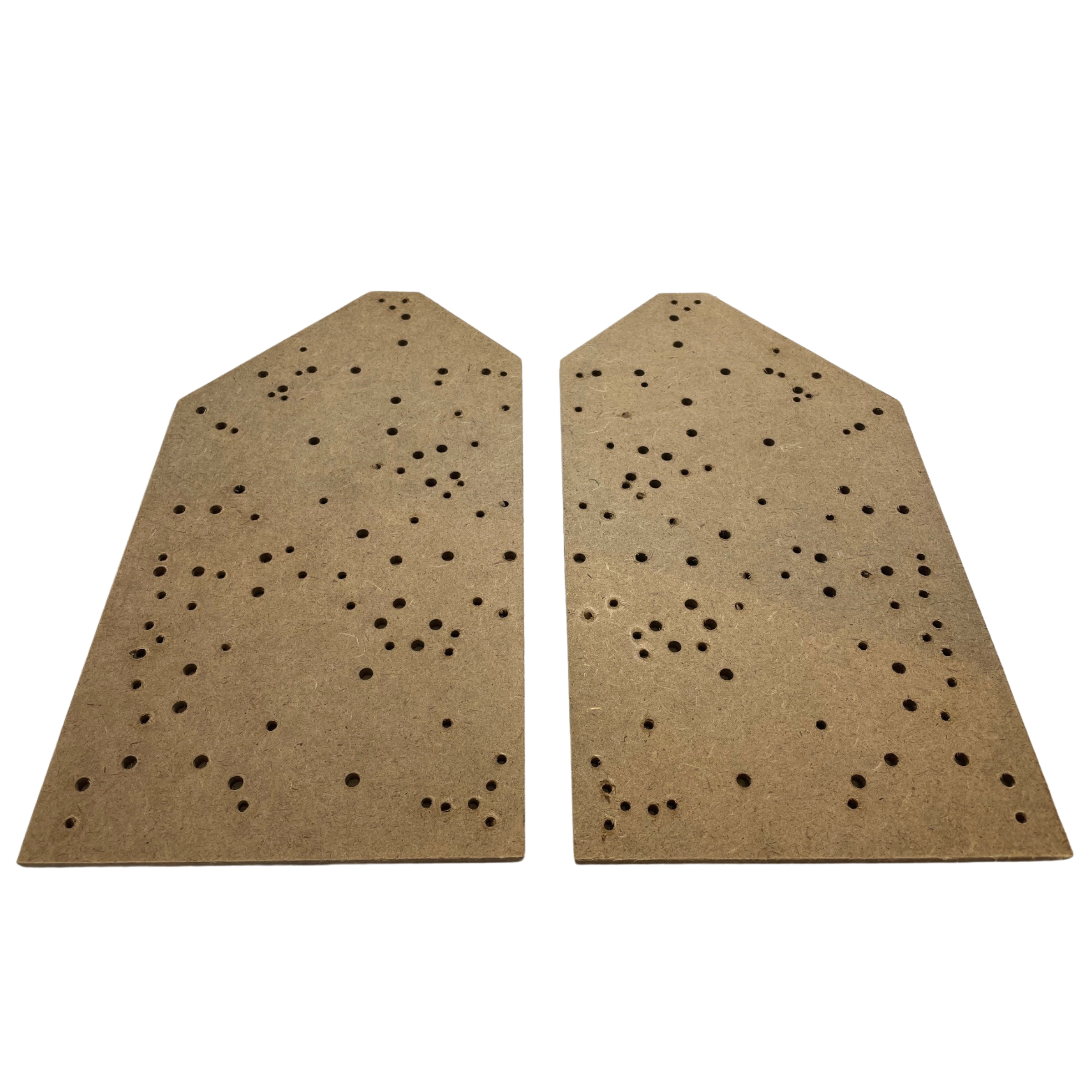

1 ARA TX XVR BOARDS Crossover Boards for ARA Tx Kit (PAIR) SOLEN
6 322GDS Crossover Terminals SOLEN
40 TY5242MX Ty-raps for Crossover Assembly SOLEN
FILENAME ACTION
ARA-TX-Crossover-Schematic.pdf Download
ARA-Cabinet-Drawing.pdf Download
