MW13TX-8

4 left in stock

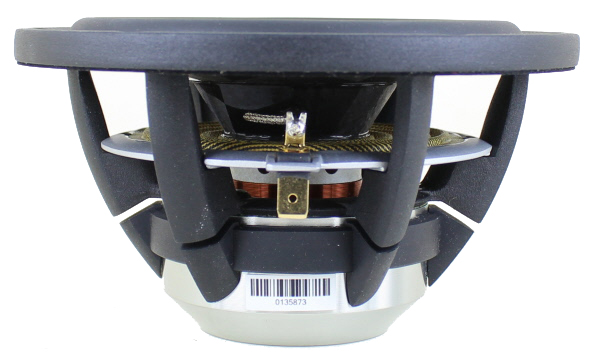

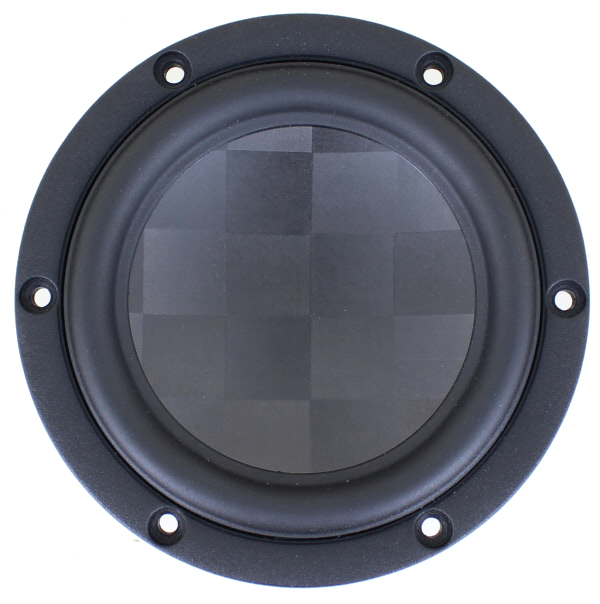

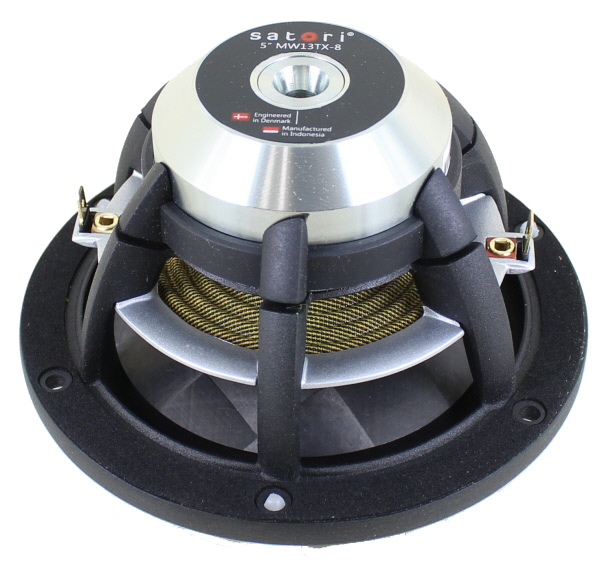

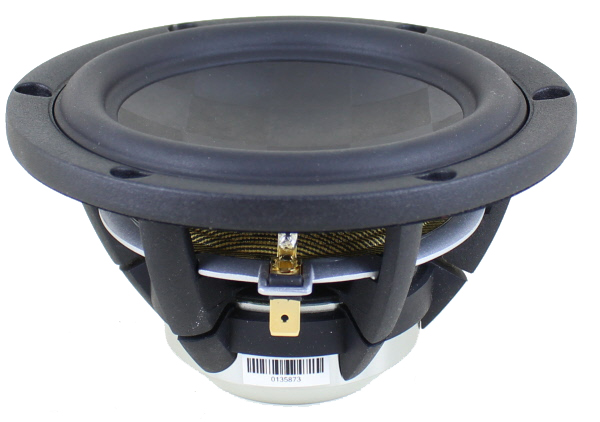

SB ACOUSTICS SATORI MW13TX-8, 13cm TEXTREME CONE NEODYMIUM MIDWOOFER 8OHM
CA$395.81each
Product Specifications
Manufacturer SB ACOUSTICS
Speaker Type Textreme Cone Neodymium Midbass
Nominal Diameter 13cm
Impedance 8 ohms
Power Handling (RMS) 40 W
Resonance Frequency 40 Hz
Sensitivity 87 dB
Voice Coil Diameter 31mm

SB ACOUSTICS SATORI MW13TX-8, 13cm TEXTREME CONE NEODYMIUM MIDWOOFER 8OHM Features Advanced TeXtreme® cone Vented aerodynamic cast aluminium chassis Soft low damping rubber surround Advanced BIMAX spider Powerful optimized low distortion neodymium motor system Extended copper sleeve on pole piece Non-conducting fiberglass voice coil former Vented pole piece and voice coil Light weight CCAW voice coil Long life silver lead wires Specs Nominal Impedance 8 Ω DC resistance, Re 6.0 Ω Voice coil inductance, Le 0.18 mH Effective piston area, Sd 70 cm2 Voice coil diameter 30.5 mm Voice coil height 15 mm Air gap height 5 mm Linear coil travel (p-p) 10 mm Magnetic flux density 1.08 T Magnet weight 0.1 kg Net weight .79 kg Free air resonance, Fs 40 Hz Sensitivity (2.83V/1m) 87 dB Mechanical Q-factor, Qms 4.99 Electrical Q-factor, Qes 0.34 Total Q-factor, Qts 0.32 Moving mass incl. air,Mms 7.3 g Force factor, Bl 5.7 Tm Equivalent volume, Vas 14.8 liters Compliance, Cms 2.19 mm/N Mechanical loss, Rms 0.4 kg/s Rated power handling* 40 W * IEC 268-5, T/S parameters measured on drive units that are broken in.

FILENAME ACTION
mw13tx8-1.pdf Download
