The highest quality speaker driver units that you can find.

MW16TX-8

4 left in stock

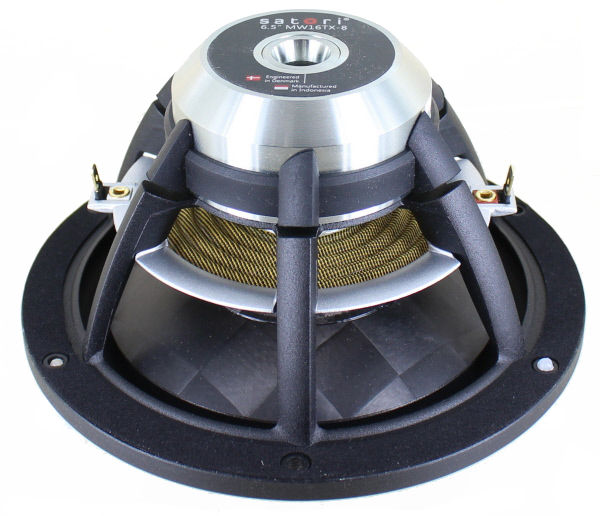

SB ACOUSTICS SATORI MW16TX-8, 17cm TEXTREME CONE NEODYMIUM WOOFER 8OHM
CA$429.38each
Product Specifications
Manufacturer SB ACOUSTICS
Speaker Type Textreme Cone Woofer
Nominal Diameter 17cm
Impedance 8 ohms
Power Handling (RMS) 60 W
Frequency Response 29.3 Hz
Sensitivity 87.5 dB
Voice Coil Diameter 36mm

SB ACOUSTICS SATORI MW16TX-8, 17cm TEXTREME CONE NEODYMIUM WOOFER 8OHM Features Advanced TeXtreme® cone Vented aerodynamic cast aluminium chassis Soft low damping rubber surround Advanced BIMAX spider Powerful optimized low distortion neodymium motor system Extended copper sleeve on pole piece Non-conducting fiberglass voice coil former Vented pole piece and voice coil Light weight CCAW voice coil Long life silver lead wires Specs Nominal Impedance 8 Ω DC resistance, Re 6.2 Ω Voice coil inductance, Le 0.2 mH Effective piston area, Sd 119 cm2 Voice coil diameter 36 mm Voice coil height 17 mm Air gap height 5 mm Linear coil travel (p-p) 12 mm Magnetic flux density 1.17 T Magnet weight 0.13 kg Net weight 1.01 kg Free air resonance, Fs 29.3 Hz Sensitivity (2.83V/1m) 87.5 dB Mechanical Q-factor, Qms 4.7 Electrical Q-factor, Qes 0.35 Total Q-factor, Qts 0.33 Moving mass incl. air,Mms 12.3 g Force factor, Bl 6.3 Tm Equivalent volume, Vas 48 liters Compliance, Cms 2.4 mm/N Mechanical loss, Rms 0.48 kg/s Rated power handling* 60 W * IEC 268-5, T/S parameters measured on drive units that are broken in.

FILENAME ACTION
mw16tx8.pdf Download
