SB12PFC-00

6 left in stock

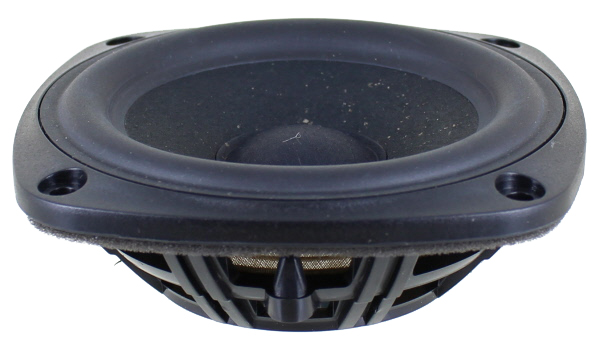

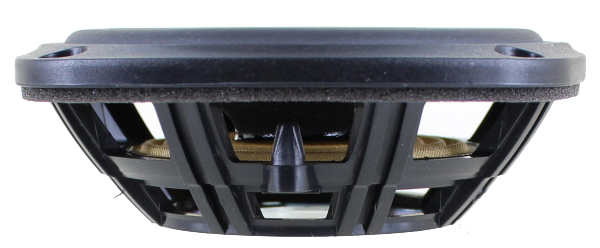

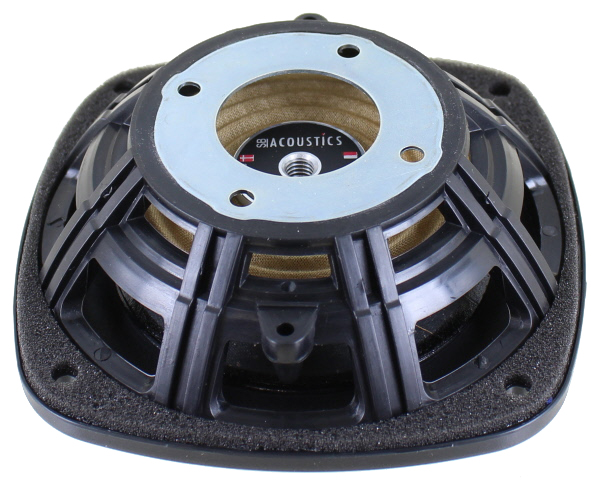

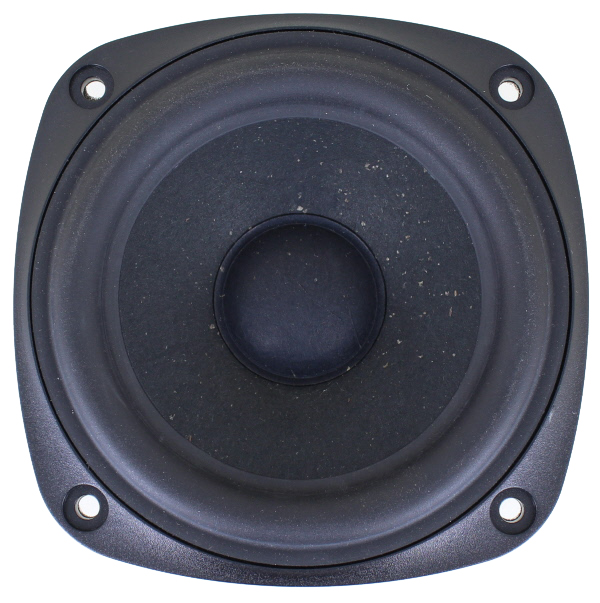

SB ACOUSTICS SB12PFC-00, 12cm FIBER CONE PASSIVE RADIATOR
CA$20.55each
Product Specifications
Manufacturer SB ACOUSTICS
Speaker Type Paper Cone Passive Radiator
Nominal Diameter 12cm
Impedance - ohms
Power Handling (RMS) - W
Frequency Response 34  Hz
Sensitivity - dB
Voice Coil Diameter - mm

SB ACOUSTICS SB12PFC-00, 12cm FIBER CONE PASSIVE RADIATOR Features Vented reinforced plastic chassis Proprietary cone material with natural fibres made in-house Low damping rubber surround Long stroke linear suspension Easily adjustable moving mass Specs Effective piston area, Sd 50 cm2 Free air resonance, Fs 34 Hz Compliance, Cms 1.2 mm/N Moving mass incl. air,Mms 18.8 g Mechanical loss, Rms 0.32 kg/s Mechanical Q-factor, Qms 12.5 Equivalent volume, Vas 4.2 liters Net weight 78 g Max Mechanical Cone Excursion, Xmech ±9 mm T/S parameters measured on drive units that are broken in.

FILENAME ACTION
sb12pfc00.pdf Download
