TIFA 8
- TIFA 8
- SB ACOUSTICS
SB Acoustics TIFA 8, 3way Floor Standing Loudspeaker Kit pair. (cabinets not included)
| Product Specifications | |
|---|---|
| Manufacturer | SB ACOUSTICS (PAIR) |
| Summary |
TIFA 8

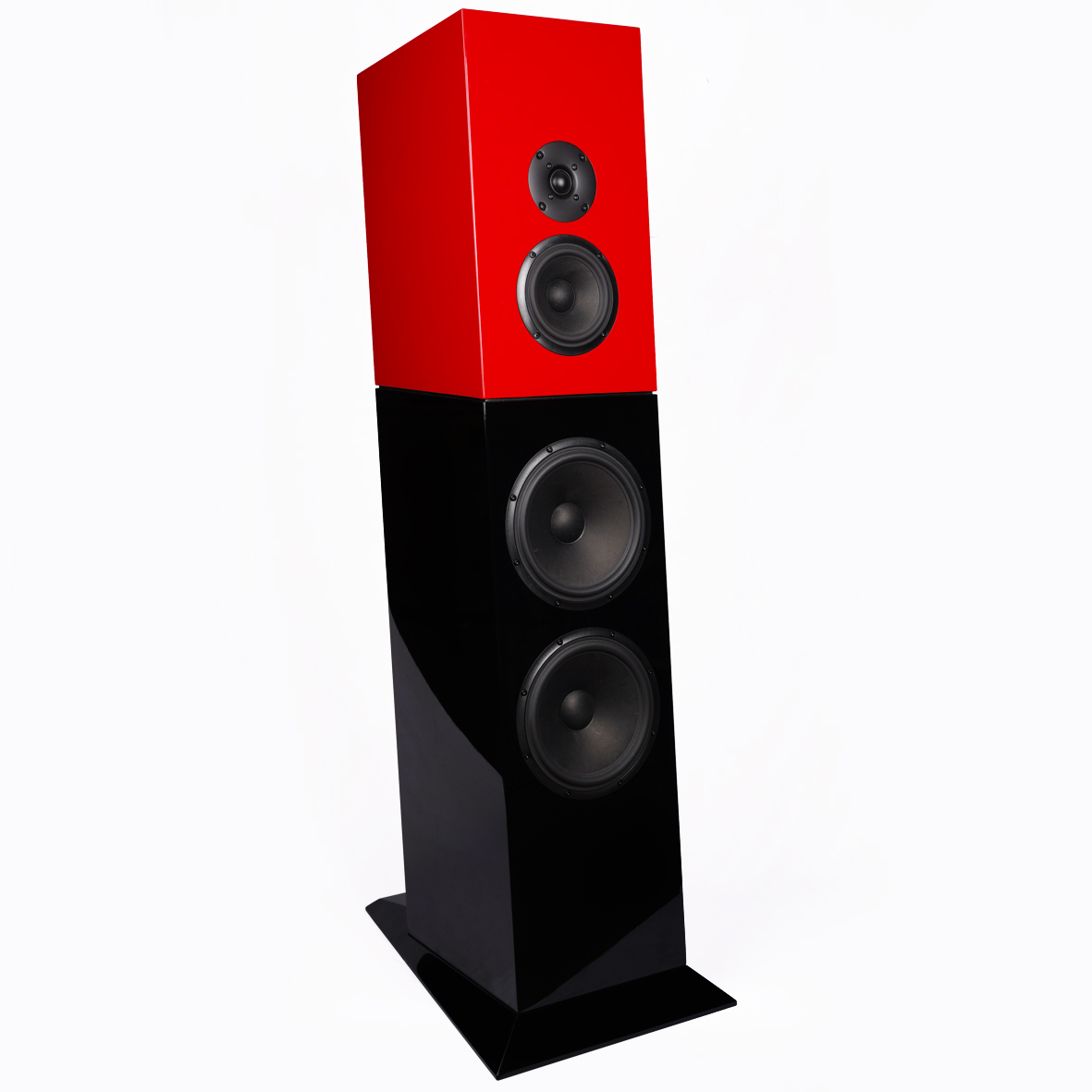

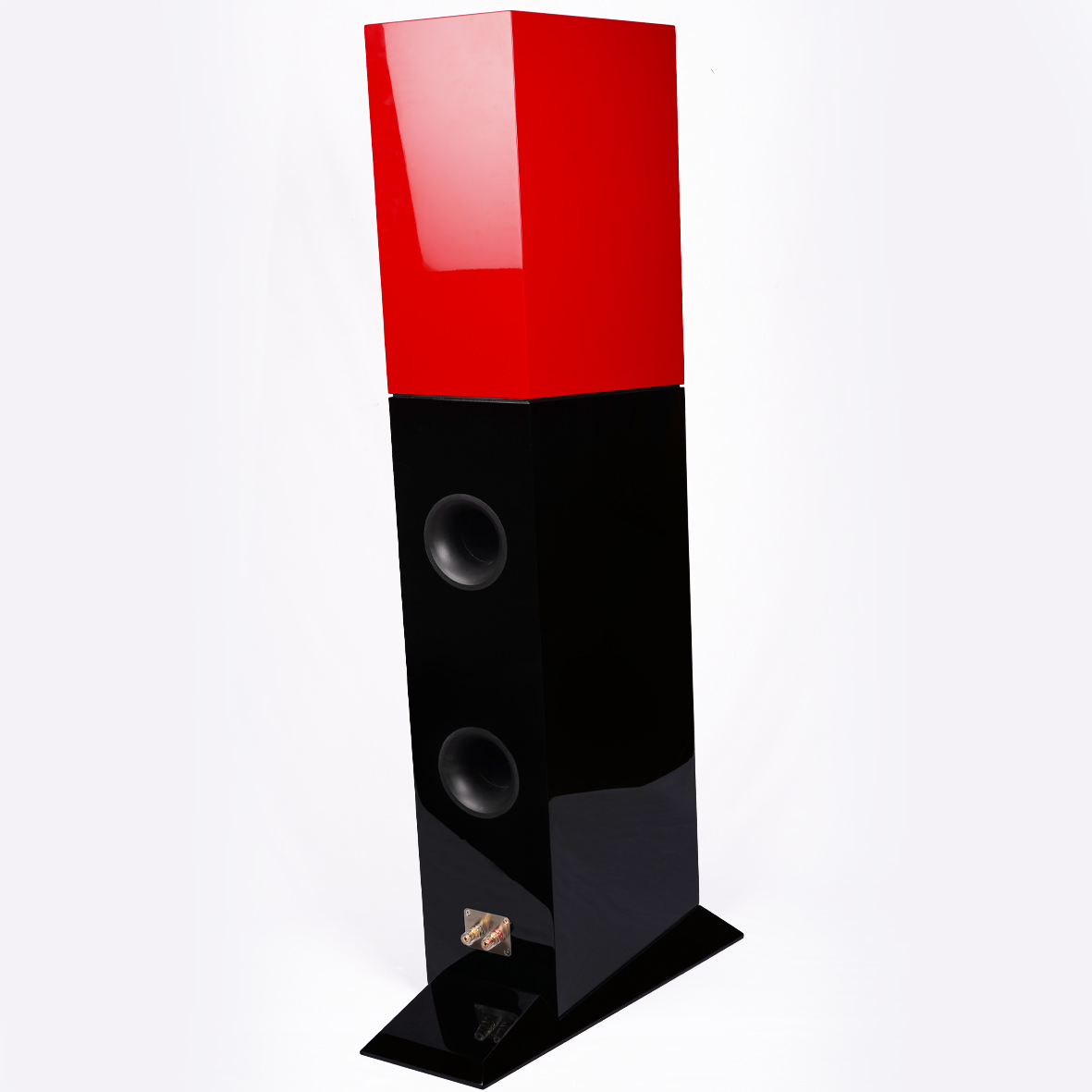

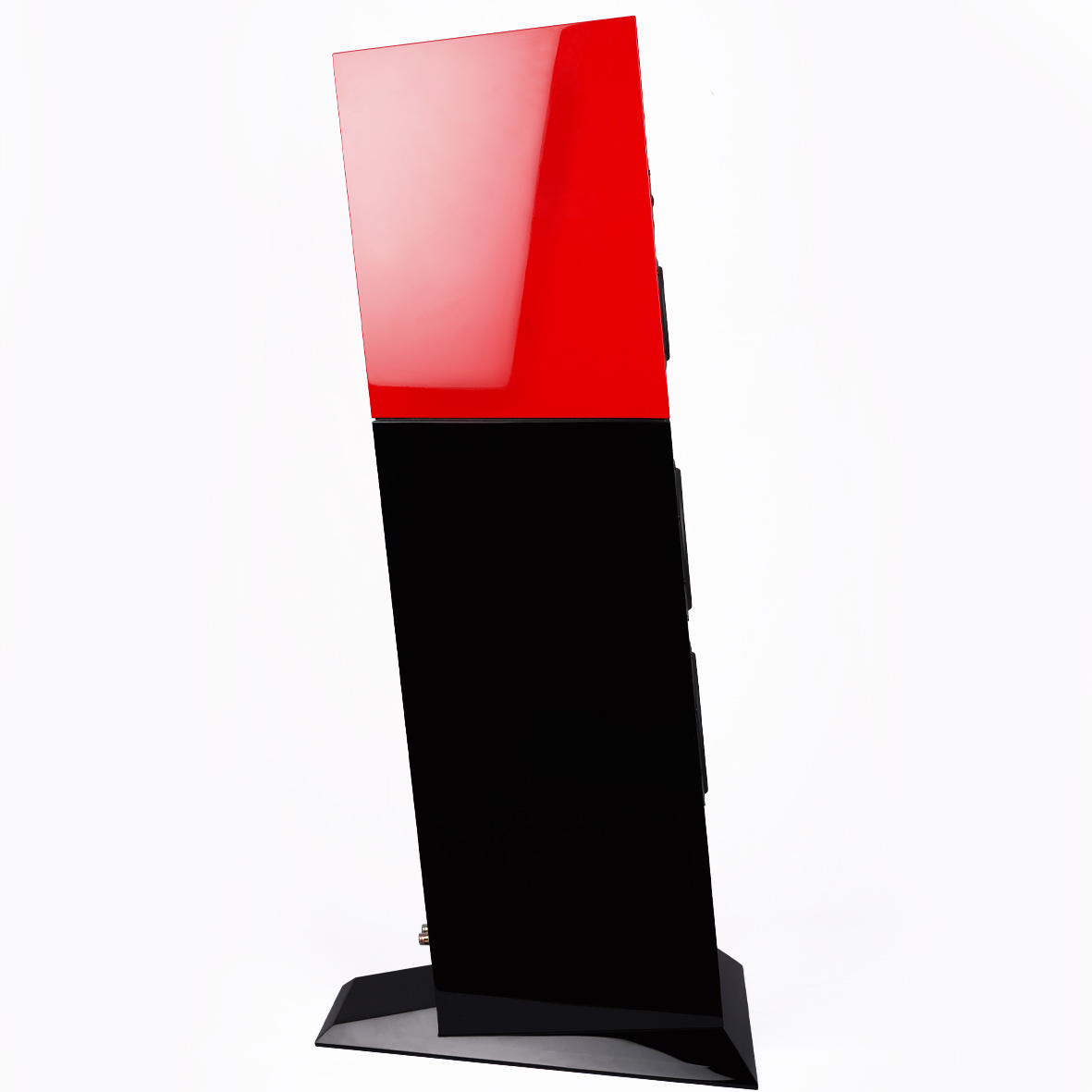

Tifa 8 is an impressive 3 way floor-standing speaker staying true to the unique Danish design language of the Tifa family. The Tifa 8 features a dedicated 6-inch natural fiber cone midrange housed in it’s own sealed midrange chamber. The highest octaves are handed off to the 26mm fine weave fabric soft dome known for it’s undistorted smooth and dynamic sound. Dual 8-inch woofer anchor the lower frequencies with deep, tight bass. The Tifa inclined cabinet design optimizes driver time alignment, offering precise imaging. Crafted with precision, the robust MDF construction and strategic bracing minimize vibrations, providing a pure, uncolored listening experience.
Specs
Open Source Kit Tifa 8 is an open source kit meaning the speaker is fully developed and documented by SB Acoustics and you are free to use the plans. PARTS ONLY. CABINETS NOT INCLUDED! |
| KIT CONTENT | |||||
| QT | PART # | ITEM | MANUFACTURER | ||

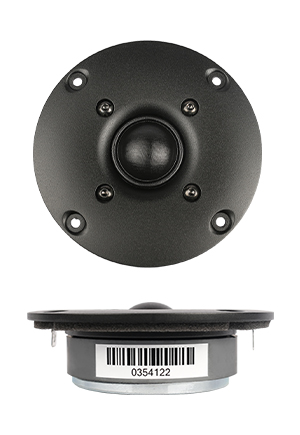

| 2 | SB26ST-C000-5 | 25mm Text 10cm SBA | SB ACOUSTICS | ||
| 2 | SB13PFCR25-8 | 15cm 25mm Fibe SBA | SB ACOUSTICS | ||
| 4 | SB20PFCR30-4 | 22cm 30mm Fibe SBA | SB ACOUSTICS | ||
| 2 | DBPPS-CMC | Dual Binding Post Plate Silver CMC | SOLEN | ||
| 4 | 858-LU | Binding Post Gold 8x38mm | SOLEN | ||
| 56 | OXSOCKET8X1 | Hex Socket Screw #8x1" | SOLEN | ||
| 12 | 6X3/4P | Pan Screw #6x3/4" | SOLEN | ||
| 20 | 10-24X1.25 | Sock Scr #10-24x1.25" | SOLEN | ||
| 20 | 10-24T | Tee Nut #10-24 | SOLEN | ||
| 8 | POLYESTER | Fiberflex 38mmx12x60" | SOLEN | ||
| 2 | PT-3FS | Flared Port 3"x6" | SOLEN | ||
| 28 | CLASSIC1.6 | Tin Plated OFC 2x1.6mm | SUPRA CABLES | ||
| 8 | GFD205-1614R | Fem. Disc. .205" 16/14 RED | SOLEN | ||
|
8 |
GFD110-1614B |
Fem. Disc. .110" 16/14 BLACK |
SOLEN |
||
| 2 | GRT5/16-1210R | Ring Type 5/16 12/10 RED | SOLEN | ||
|
2 |
GRT5/16-1210B |
Ring Type 5/16 12/10 BLACK |
SOLEN |
||
| 2 | MO1000J2R7 | 2.7 ohm 10W | SOLEN | ||
| 2 | PB560 | 5.6 mfd 400v 22x33 | SOLEN | ||
| 2 | MO1000J1R0 | 1.0 ohm 10W | SOLEN | ||
| 2 | S20.33 | .33mH 0.8 11x22x45 | SOLEN | ||
| 2 | S20.27 | .27mH 0.8 10x19x38 | SOLEN | ||
| 2 | MO1000J3R3 | 3.3 ohm 10W | SOLEN | ||
| 2 | S20.39 | .39mH 0.8 11x22x45 | SOLEN | ||
| 2 | PB4700 | 47 mfd 400v 44x60 | SOLEN | ||
| 2 | PB390 | 3.9 mfd 400v 18x33 | SOLEN | ||
| 2 | MO1000J10R | 10 ohm 10W | SOLEN | ||
| 2 | S20.39 | .39mH 0.8 11x22x45 | SOLEN | ||
| 2 | PB4700 | 47 mfd 400v 44x60 | SOLEN | ||
| 2 | PB390 | 3.9 mfd 400v 18x33 | SOLEN | ||
| 2 | S163.3 | 3.3mH 1.3 22x45x89 | SOLEN | ||
| 2 | PB150 | 1.5 mfd 400v 14x25 | SOLEN | ||
| 2 | PB1500 | 15 mfd 400v 29x45 | SOLEN | ||
| 2 | S145.6 | 5.6mH 1.6 25x51x102 | SOLEN | ||
| 2 | PB3900 | 39 mfd 400v 40x60 | SOLEN | ||
