ULTIMATE REVELATION

Name: ULTIMATE REVELATION
Brand: SCAN-SPEAK
SKU: ULTIMATE REVELATION
Price: 2030.65 CAD
Availability: InStock

(0)

In stock

Scan-Speak Ultimate Revelation, 2way MTM Kit Pair with 2x 15W/8530K01 and D2905/9700. (pair)

CA$2,030.65 ^Pair CA$2,389.00

Scan-Speak Kits

Choose another model

Choose another model
EXPERIENCE (2way MTM Floorstanding) CA$2,710.65 ^Pair CA$3,189.00
CCB5075 (2way Bookshelf) CA$993.65 ^Pair CA$1,169.00

2way Kits

Choose another model

Choose another model
BIJOU170 (2way Bookshelf) CA$690.02^Each
A42RW (2way Bookshelf) CA$449.65 ^Pair CA$529.00
A52RW (2way Bookshelf) CA$602.65 ^Pair CA$709.00
EXPERIENCE (2way MTM Floorstanding) CA$2,710.65 ^Pair CA$3,189.00
A26 (2way Monitor) CA$1,741.65 ^Pair CA$2,049.00
BIFROST (2way Bookshelf) CA$2,166.65 ^Pair CA$2,549.00
EXOTIC (2way Bookshelf) CA$3,645.65 ^Pair CA$4,289.00
FROY MKIII (2way MTM Bookshelf) CA$3,161.15 ^Pair CA$3,719.00
IDUNN (2way Bookshelf) CA$942.65 ^Pair CA$1,109.00
MIMIR (2way Bookshelf) CA$849.15 ^Pair CA$999.00
ODIN MKIII (2way MTM Bookshelf) CA$3,662.65 ^Pair CA$4,309.00
THOR (2way MTM Transmission Line) CA$3,611.65 ^Pair CA$4,249.00
TRYM (2way Bookshelf) CA$2,809.15 ^Pair CA$3,299.00
ANANYA (2way MTM Floorstanding) CA$4,045.15 ^Pair CA$4,759.00
MANTIKA 2 (2way MTM Floorstanding) CA$908.65 ^Pair CA$1,069.00
ALTO GENESIS SAT (2way Bookshelf) CA$381.42^Pair
ALTO LINE (2way Floorstanding) CA$608.27^Pair
ALTO1 (2way Bookshelf) CA$408.87^Pair
ALTO2 (2way Floorstanding) CA$420.44^Pair
ARIA (2way Bookshelf) CA$573.59^Each
ARIA LIGHT (2way Bookshelf) CA$283.19^Each
ARIA MHT (2way Bookshelf) CA$1,785.78^Pair
ARIA2 (2way MTM Bookshelf) CA$903.00^Each
ARIA2 LIGHT (2way MTM Bookshelf) CA$333.75^Each
BIJOU (2way Bookshelf) CA$1,463.57^Pair
CLOU (2way Floorstanding) CA$566.37^Pair
COUPLET (2way MTM Bookshelf) CA$1,612.40^Pair
COUPLET LIGHT (2way MTM Bookshelf) CA$574.62^Pair
FONTANA (2way Floorstanding) CA$1,610.24^Pair
FONTANELLA SAT (2way Bookshelf) CA$1,515.72^Pair
GRAND ORGUE (2way Floorstanding) CA$2,401.27^Pair
MB208/H (2way MTM Monitor) CA$262.33^Each
NANO MK2 SAT (2way Bookshelf) CA$171.83^Each
PETIT ORGUE (2way Monitor) CA$1,038.81^Pair
PORTRAIT (2way On-Wall) CA$260.06^Pair
STELLA LIGHT (2way Floorstanding) CA$362.65^Pair
STUDIO 1 (2way Monitor) CA$988.24^Each
TABULA (2way Shelf) CA$267.29^Each
TOPAS (2way Transmission Line) CA$2,237.99^Pair
VIB170AL (2way Floorstanding) CA$1,216.53^Pair
VIB2000GF (2way Floorstanding) CA$1,134.17^Pair
BRAGI (2way MTM Bookshelf) CA$1,401.65 ^Pair CA$1,649.00
MICRO (2way Bookshelf) CA$262.65 ^Pair CA$309.00
MICRO C (2way Bookshelf) CA$390.15 ^Pair CA$459.00
ARA (2way Bookshelf) CA$1,274.15 ^Pair CA$1,499.00
ARA BE (2way Bookshelf) CA$1,894.65 ^Pair CA$2,229.00
KOURTISANE4.2 (2way Bookshelf) CA$645.15 ^Pair CA$759.00
ARA TX (2way Bookshelf) CA$1,979.65 ^Pair CA$2,329.00
KOMPACTE (2way Bookshelf) CA$823.65 ^Pair CA$969.00
CCB5075 (2way Bookshelf) CA$993.65 ^Pair CA$1,169.00
APHEL (2way Floorstanding) CA$1,159.40 ^Pair CA$1,364.00
LUCID (2way Bookshelf) CA$3,416.15 ^Pair CA$4,019.00
ACUITY (2way Bookshelf) CA$3,516.65 ^Pair CA$4,149.00
JOLLITY (2way Bookshelf) CA$662.15 ^Pair CA$779.00
JOY (2way Bookshelf) CA$1,274.15 ^Pair CA$1,499.00
EXPRESSION (2way Bookshelf) CA$569.00^Pair
PURE CA$850.00 ^Pair CA$1,000.00
MURA 5B CA$199.00 ^Pair CA$244.00
TOY DSP CA$1,997.50 ^Pair CA$2,350.00
TOY PASSIVE CA$1,848.75 ^Pair CA$2,175.00
HORIZON CA$1,115.00 ^Pair CA$1,315.00
STUDIO 2 CA$706.50^Each
ZYKLOP CA$898.67^Each
LABELLE CR CA$1,017.14^Each

Quantity

SKU: ULTIMATE REVELATION
Brand: SCAN-SPEAK

Scan-Speak Ultimate Revelation, 2way MTM Kit Pair with 2x 15W/8530K01 and D2905/9700. (pair)

Product Specifications

Manufacturer

SCAN-SPEAK

Summary

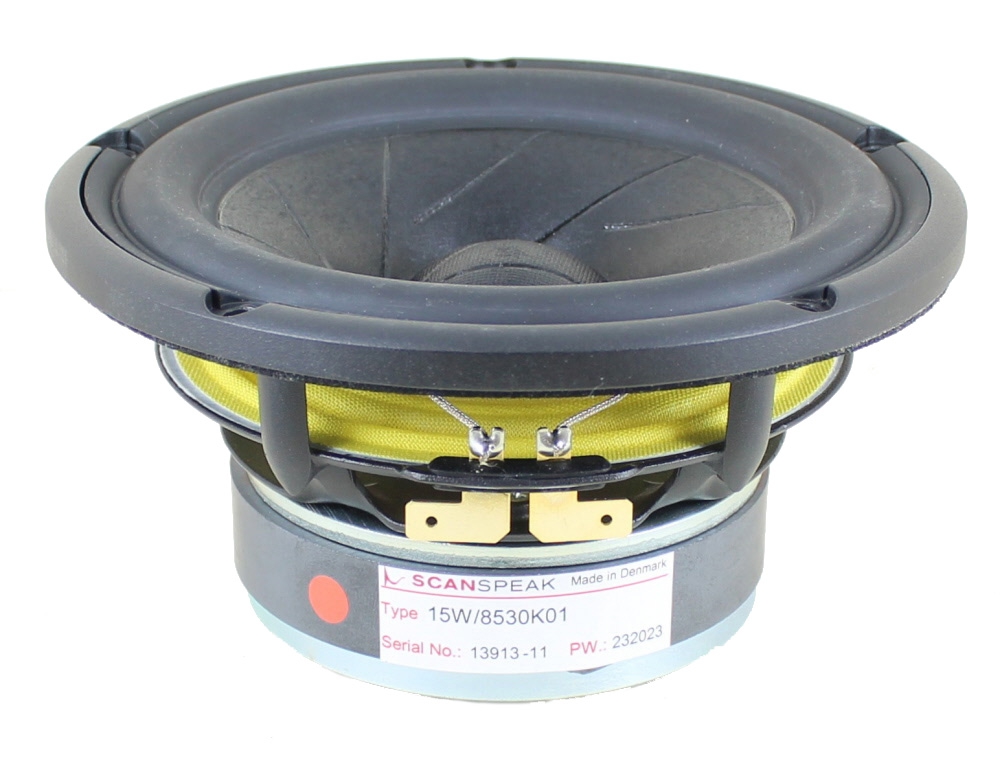

The Ultimate Revelation is a two way floor standing D'Appolito bass reflex enclosure. This is the best sounding two way period! The image and the bass response are incredible. Frequency response 35Hz to 30KHz Efficiency: 90.5db 1w/1m. The tweeter is the D2905/9700 28mm silk dome, based on the Revelator. The Woofers are the 15W/8530K01 Revelators, long stroke 5.5 inches with treated and choped paper cone. The crossover is a third-order Butterworth at 1.8kHz with zobel and L-pad.

KIT CONTENT

QT	PART #	ITEM	MANUFACTURER
4	15W/8530K01	15cm 38mm Pape SCA	SCAN-SPEAK
8	322GDS	Crossover Term.	SOLEN
8	858-LU	Binding Post Gold 8mmX38mm	SOLEN
2	D2905/9700	28mm Text 10cm SCA	SCAN-SPEAK
2	L14.16	.16 mH 1.5 14x29x57	SOLEN
2	L14.47	.47 mH 1.5 16x32x64	SOLEN
28	M22759/11-14-0	Cu/Ag 14awg Teflon Black	SOLEN
28	M22759/11-14-2	Cu/Ag 14awg Teflon Red	SOLEN
8	M4TN	Tee Nut 4mm	SOLEN
8	M4X25H	Socket Screw 4mmx25mm	SOLEN
20	M5TN	Tee Nut 5mm	SOLEN
20	M5X35H	Socket Screw 5mmx35mm	SOLEN
8	MISSTR	Mirror Image Spike	SOLEN
2	MO1000J1R2	1.2 Ohms 10 W	SOLEN
2	MO1000J24R	24 Ohms 10 W	SOLEN
2	MO1000J3R9	3.9 Ohms 10 W	SOLEN
2	PA2000	20 mfd 250v 28x43	SOLEN
2	PA5100	51 mfd 250v 38x53	SOLEN
2	PB2700	27 mfd 400v 34x53	SOLEN
2	PB910	9.1 mfd 400v 25x38	SOLEN
2	POLYESTER	Fiberflex 38mmx12x60	SOLEN
2	PT-3FL	Parabolic Port Tube 3	SOLEN
2	S20.20	.20 mH 0.8 10x19x38	SOLEN

FILENAME	ACTION
ssurkit_new.pdf	Download

ULTIMATE REVELATION

Add a review

Be the first one to review this product.

Related Products

D2905/9700

15W/8530K01
