ODIN MKIII

Out of stock

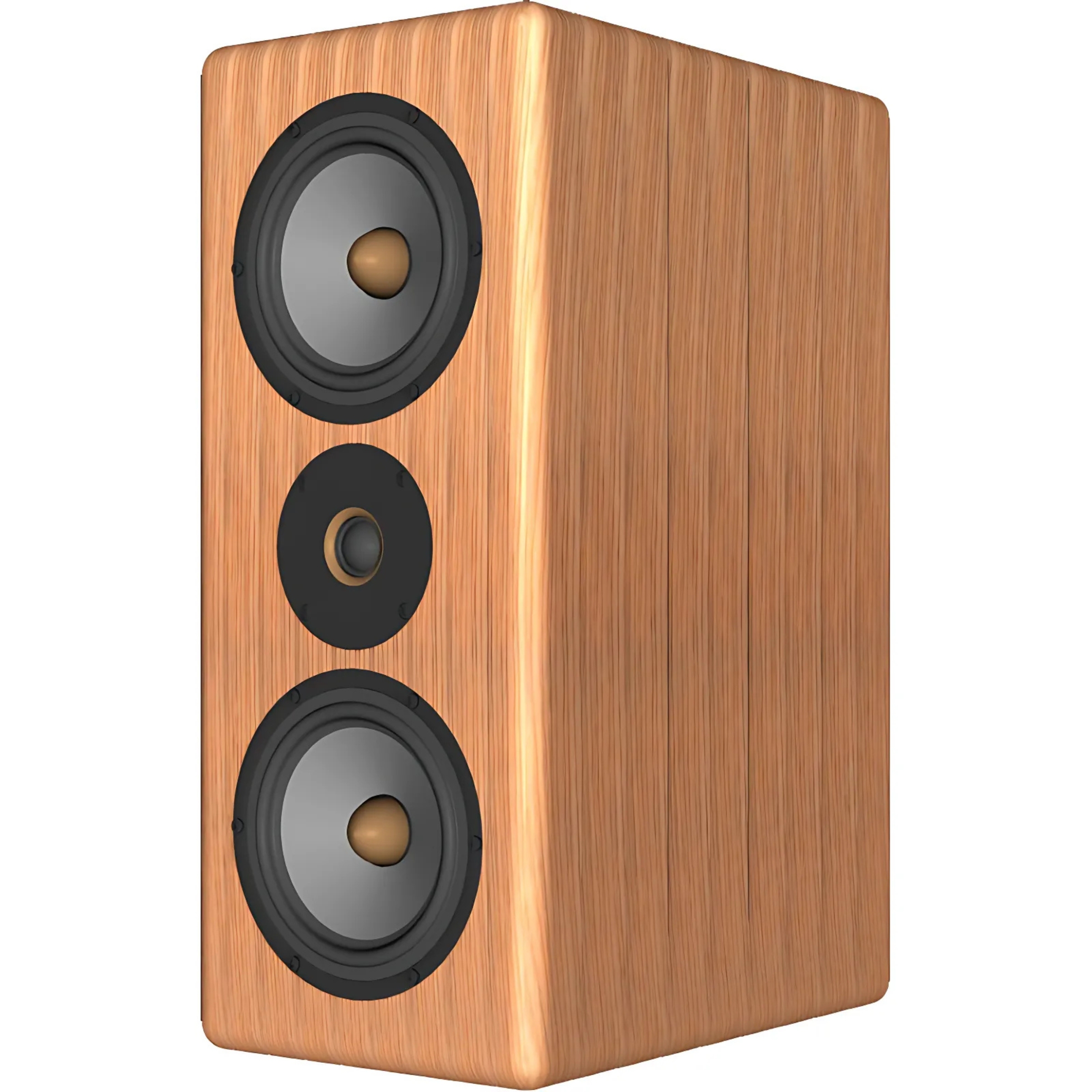

Seas Excel Odin mkIII, 2way MTM Kit Pair with 2xW18E001 & T25-002.
CA$2,685.15 each CA$3,159.00
Product Specifications
Manufacturer SEAS PRESTIGE
Summary The Seas Odin mk3 is a completely redesigned version of the
very popular Odin kit.
It is an 34 litres two way D'Appolito bass reflex enclosure.
Several hundred hours of laboratory testing and listening
have gone in to this system. You lterally can't tell where
the woofers leave off and the tweeter begins.
Frequency response 33Hz to 25KHz Efficiency: 89db 1w/1m.
The tweeter is the Seas T25-002 Millennium from the excel line.
The Woofers are the Seas Excel W18E001 magnesium cone 6.5 inches.
The low pass filter is a 3rd order with a second order zero. An addition network is placed
in parallel with the woofers to serve the dual purpose of tailoring the frequency
response and removing the magnesium cone frequency peak.
The high pass network is a third order Butterworth with an additional impedance
compensation network. The X-over frequency is 2.5Khz.
The Odin mk3 was designed by Dr. Joseph D'Appolito, and developed as a companion
kit to the Thor transmission line system.
Also available in sheilded form for Home theater application.

KIT CONTENT
QT PART # ITEM MANUFACTURER
4 858-LU Binding Post Gold 8mmX38mm SOLEN
1 ACOUS FOAM Conv Foam 30mmx40x80 SOLEN
12 CLASSIC1.6 Tin Plated OFC 2x1.6mm SUPRA CABLES
2 L121.0 1.0 mH 1.9 22x45x89 SOLEN
8 M4TN Tee Nut 4mm SOLEN
8 M4X25H Socket Screw 4mmx25mm SOLEN
24 M5TN Tee Nut 5mm SOLEN
24 M5X35H Socket Screw 5mmx35mm SOLEN
2 MO1000J12R 12 Ohms 10 W SOLEN
4 MO1000J1R0 1.0 Ohms 10 W SOLEN
2 MO1000J2R2 2.2 Ohms 10 W SOLEN
2 PB1800 18 mfd 400v 31x45 SOLEN
2 PB220 2.2 mfd 400v 16x27 SOLEN
4 PB820 8.2 mfd 400v 24x38 SOLEN
2 PT-3FS Flared Port 3 SOLEN
2 S18.15 .15 mH 1.0 10x19x38 SOLEN
2 S18.22 .22 mH 1.0 11x22x45 SOLEN
2 T25-002 26mm Sono 11cm SEA SEAS EXCEL
4 W18E001 18cm 39mm Mg SEA SEAS EXCEL
FILENAME ACTION
odinkit.pdf Download
