L26ROY04
- L26ROY04
- SEAS EXTREME

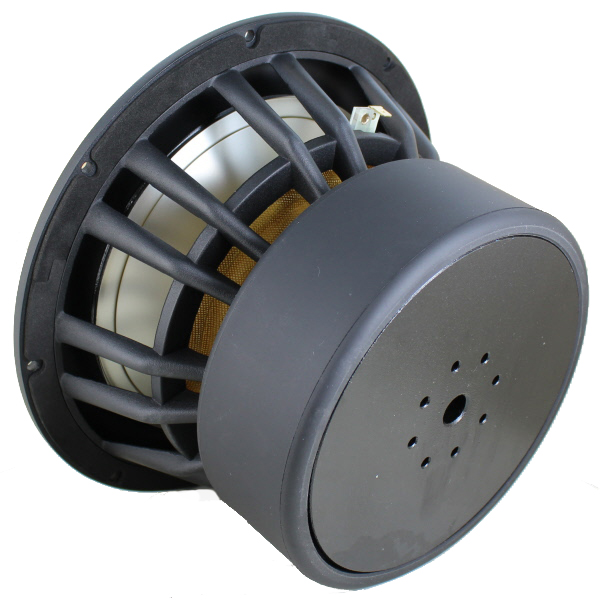

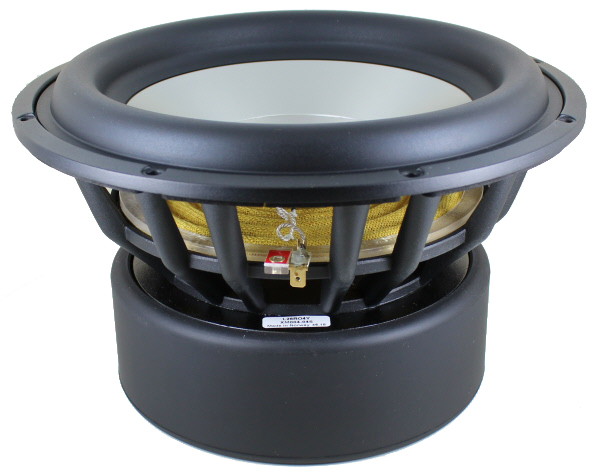

Seas Extreme L26ROY, 269mm (10in) Aluminum Cone Subwoofer, with 56mm Voice Coil XM004, 4ohm.
| Product Specifications | |
|---|---|
| Manufacturer | SEAS EXTREME |
| Speaker Type | Aluminum Cone Subwoofer |
| Nominal Diameter | 27cm |
| Impedance | 4 ohms |
| Power Handling (RMS) | - W |
| Frequency Response | 20 - 1000 Hz |
| Sensitivity | 88 dB |
| Voice Coil Diameter | 56mm |
Extremely stiff and rigid aluminium cone gives tremendous bass precision.
The cone and the long throw low loss rubber surround show no sign of the familiar cone edge resonance and distortion associated with soft cones.
Lead-out wires symetrically stitched to the spider to avoid resonances. Total suspension designed to assure stability for extreme excursions.
2-layer, extremely long, high temperature voice coil wound on a glass fiber voice coil former gives a high power handling capacity.
Cu-cap around the pole pieces reduce non linear and modulation distortion and increase overload margin.
Extra large magnet system provides high efficiency and low Q.
Extremely stiff and stable injection moulded metal basket keeps the critical components in perfect alignment.
Large windows in the basket both above and below the spider reduce sound reflection, air flow noise and cavity resonance to a minimum.
| FILENAME | ACTION |
|---|---|
| l26roy.pdf | Download |
