19TAFDG08
3 left in stock

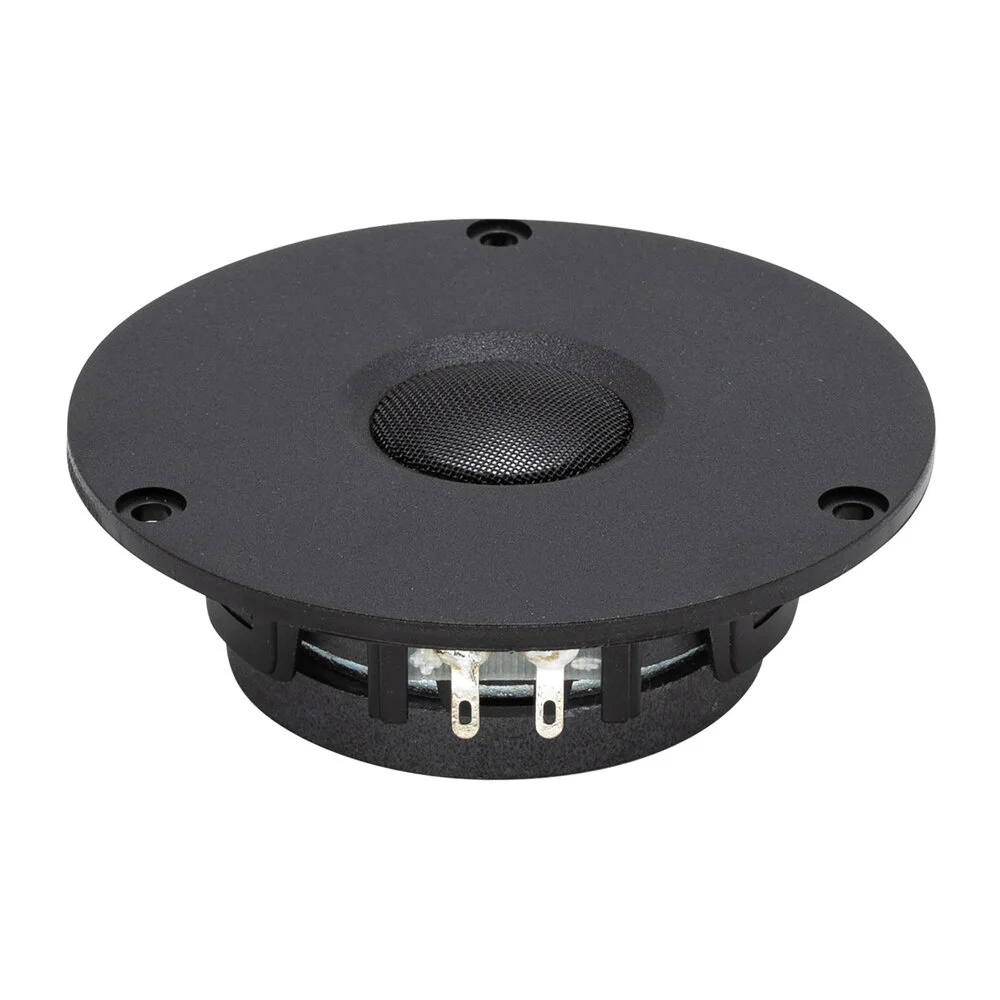

Seas Prestige 19TAFDG, 19mm (0.75in / 3/4in) Aluminum Dome Tweeter, H0532, 8ohm, 94mm Faceplate
CA$83.44Each
- 19TAFDG08
- SEAS PRESTIGE
Seas Prestige 19TAFDG, 19mm (0.75in / 3/4in) Aluminum Dome Tweeter, H0532, 8ohm, 94mm Faceplate
| Product Specifications | |
|---|---|
| Manufacturer | SEAS PRESTIGE |
| Tweeter Type | Aluminum Dome Tweeter |
| Cone / Dome Diameter | 19 mm |
| Impedance | 8 ohms |
| Power Handling (RMS) | 220 W (short term) | 90 W (long term) |
| Recommended Frequency Range | 4000 – 20000Hz |
| Characteristic Sensitivity (2.83V, 1m) | 88 dB |
| Weight | 0.3Kg |
19mm High Fidelity dome tweeter with smooth, extended frequency
response.
Aluminium diaphragm suspended by a specially designed soft Sonotex surround
which allows a low fundamental frequency.
Double magnet reduces stray fields around the magnet system and allows the unit
to be used in close proximity to a CRT. The double magnet also gives a higher
sensitivity.
Fine mesh grid protects the diaphragm and carries a phase plate which compensates
for a slight axial roll off towards 20 kHz.
Voice coil windings immersed in magnetic fluid increase short term power handling
capacity and reduce the compression at high power levels.
| FILENAME | ACTION |
|---|---|
| 19tafdg.pdf | Download |
