27TBCD/GBDXT
- 27TBCD/GBDXT
- SEAS PRESTIGE

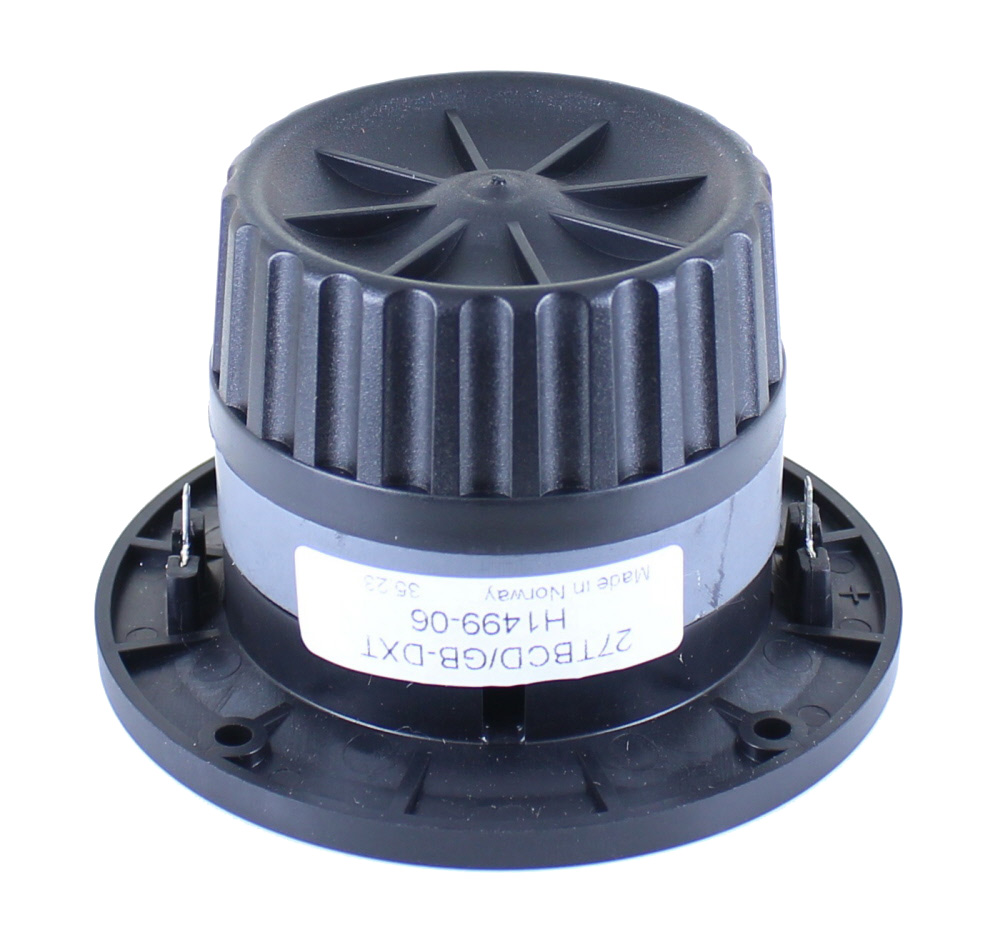

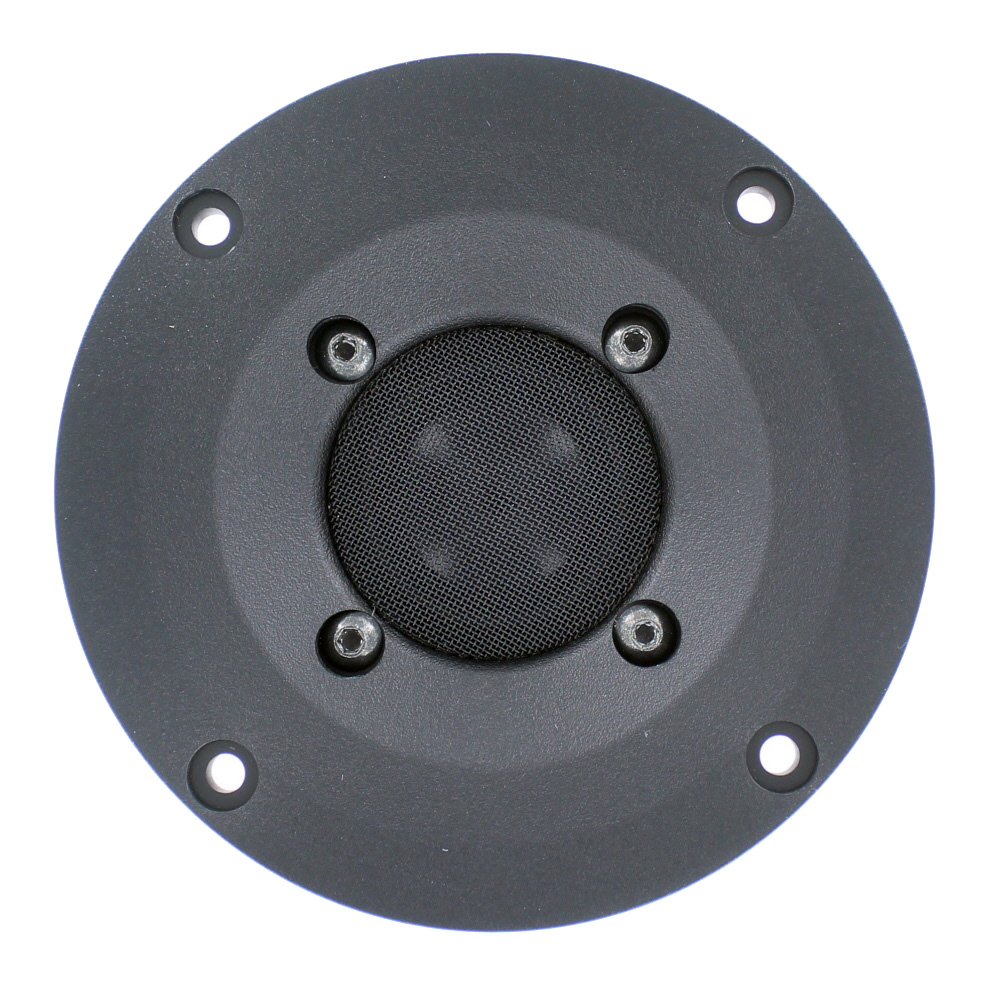

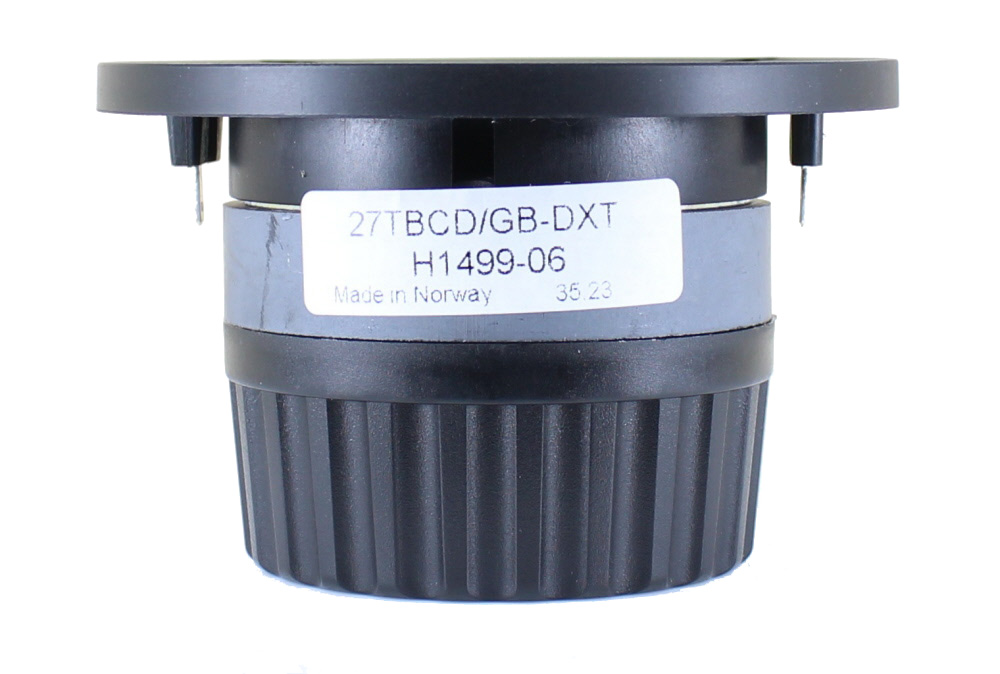

Seas Prestige 27TBCD/GBDXT, 26mm (1in) Aluminum Magnesium DXT Dome Tweeter, H1499, 6ohm, 104mm Faceplate
| Product Specifications | |
|---|---|
| Manufacturer | SEAS PRESTIGE |
| Tweeter Type | Aluminum Magnesium DXT Dome Tweeter |
| Cone / Dome Diameter | 26mm |
| Impedance | 6 ohms |
| Power Handling (RMS) | 150 W (short term) | 55 W (long term) |
| Frequency Response | 2000 - 25000 Hz |
| Sensitivity (1W, 1m) | 92 dB |
27TBCD/GB-DXT is a High Definition aluminium/magnesium alloy dome tweeter with DXT® lens.
An optimally shaped dome and a wide SONOMAX surround, both maufactured by SEAS, ensure excellent performance and consistency.
The compensation magnet increases the sensitivity and reduces the magnetic strayfield and allows use in close proximity to CRT screens.
A fine mesh grid protects the diaphragm.
Stiff and stable rear chamber with optimal acoustic damping allows the tweeter to be
used with moderately low crossover frequencies.
This revolutionary DXT® tweeter addresses the major issues regarding directivity control in traditional loudspeaker designs. DXT® solves several well-know issues regarding; directivity control, off-axis response, integration with midrange units and baffle diffractions.
| FILENAME | ACTION |
|---|---|
| 27tbcdgbdxt.pdf | Download |
