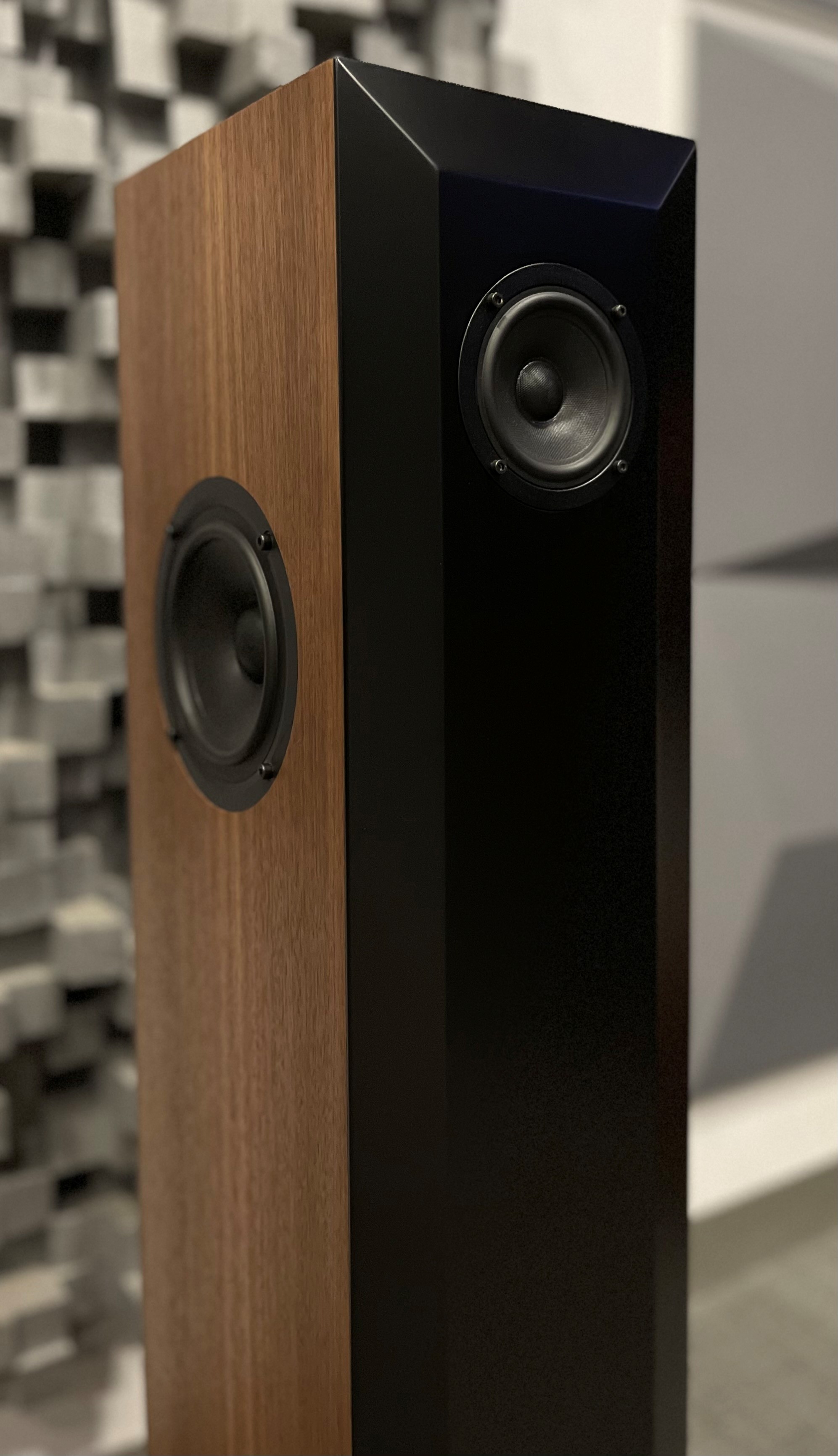

Solen HORIZON, 2way Speaker Kit using the Scan-Speak Discovery 15W/4434G00 (2x) and 10F/8424G00.
The Solen Horizon speaker kit was designed with the goal of having the characteristics of a single driver speaker wihout compromising the low end.
It uses a 10cm Scan-Speak extended range driver from 300Hz and up and a pair of side firing 15cm woofers that takes care of the low end.
The low tuning of the bottom firing port allows the speaker to provide great in-room bass extension in small to medium room while still having decent power handling.
The Solen Horizon offers a smooth sound signature for long listening session. It sounds much bigger than it actually is and provide a nice and wide soundstage.
HIGHLIGHTS
- Great in-room bass extension
- Smooth sound signature
- Small floorstanding from factor
SPECIFICATIONS
- EXTENDED DANGE DRIVER : Scanspeak 10F/8424G00

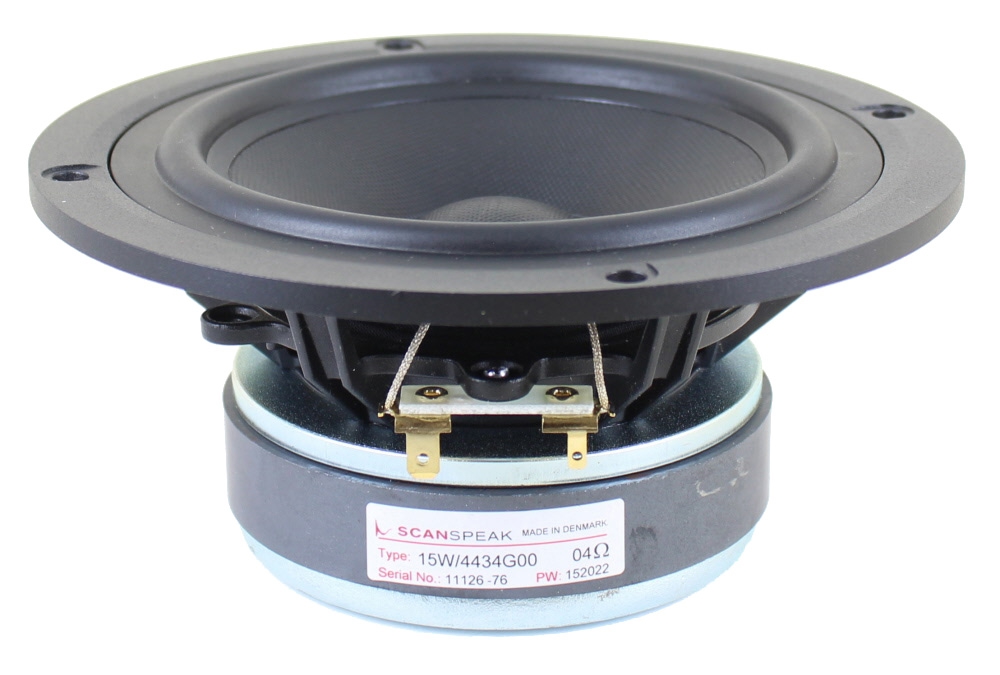

- LOW FREQUENCY DRIVER : 2x Scanspeak 15W/4434G00
- FREQUENCY RESPONSE ON AXIS (±3dB) : 90* Hz - 17 kHz
- LOW FREQUENCY EXTENSION (-10dB IN A TYPICAL ROOM): 30 Hz
- SENSITIVITY IN-ROOM (2.83V/1m): 85 dB
- IMPEDANCE : 8Ω (minimum 6.0Ω at 1KHz)
- EXTERNAL DIMENSIONS (HxWxD) : 940 x 184 x 254 mm (37 x 7¼ x 10 in)
- RECOMMENDED AMPLIFIER POWER : 50W+ at 8Ω
- WEIGHT : 15.9 kg (35 lbs) each
*See Frequency Response page for more information.
Solen offers the detailed plans if you want to build the cabinets yourself.
We also have professionally assembled and painted cabinet.
!!! NO ASSEMBLY INCLUDED !!!
!!! CABINETS NOT INCLUDED !!!
!!! HORIZON CROSSOVER BOARDS ARE INCLUDED !!!
Available Cabinets:
HORIZON BOX WALNUT = Natural Walnut Veneer with Black Front and Back Baffles Satin Finish Cabinets.
| KIT CONTENT |
| QT | PART # | ITEM | MANUFACTURER |
| 2 | 10F/8424G00 | 100mm GLASS FIBER CONE FULLRANGE, 8 OHMS | SCAN-SPEAK |
| 4 | 18W/4434G00 | 180mm GLASS FIBER CONE MIDBASS, 4 OHMS | SCAN-SPEAK |
| 2 | HORIZON BOARD | CROSSOVER BOARD FOR HORIZON SOLEN SPEAKER KIT | SOLEN |
| 2 | PA3300 | 33mfd Fast Capacitors 250v PA Series Metallized Polypropylene | SOLEN |
| 2 | PA2000 | 20mfd Fast Capacitors 250v PA Series Metallized Polypropylene | SOLEN |
| 2 | S204.7 | 4.7mH 20awg, 1.75ohms DCR, 16mm H x 64mm D | SOLEN |
| 2 | S20.51 | 0.51mH 20awg, 0.49ohms DCR, 11mm H x 45mm D | SOLEN |
| 2 | S20.10 | 0.10mH 20awg, 0.14ohms DCR, 10mm H x 38mm D | SOLEN |
| 2 | S165.1 | 5.1mH 16awg, 0.86ohms DCR, 22mm H x 89mm D | SOLEN |
| 2 | AOC1600G2R7 | 2.7 Ohms 16W 2% AchrOhmiC Non-Inductive Wirerwound Resistors | SOLEN |
| 2 | AOC1600G4R3 | 4.3 Ohms 16W 2% AchrOhmiC Non-Inductive Wirerwound Resistors | SOLEN |
| 2 | MO1000J11R | 11 Ohms 10W 5% Link Non-Inductive Metal Oxyde Resistors | SOLEN |
| 24 | TY5242MX | Tie Wrap 3.6mm x 21cm | SOLEN |
| 6 | 322GDS | DUAL CROSSOVER TERMINAL | SOLEN |
| 1 | POLYESTER | White Polyester Fiberflex 1.5"x12"x42" 6.2oz | SOLEN |
| 2 | PT-2.5F | Flared Port Tube, 2-1/2"D x 8-1/2"L | SOLEN |
| 170 | SCE41BSC | VERSATILE RUBBER FOAM GASKET | SOLEN |
| 2 | OP-4 | Outrigger Speaker Spike Set ABS (4x) | DAYTON AUDIO |
| 4 | 858-LU | CMC 16mm D BINDING POST GOLD PLATED 35mm L SHAFT | SOLEN |
| 6 | GFD110-1614B | BLACK Fem. Disc. .110 16/14 Gold Plated Brass | SOLEN |
| 6 | GFD205-1614R | RED Fem. Disc. .205 16/14 Gold Plated Brass | SOLEN |
| 20 | CLASSIC1.6 | Tin Plated OFC 2x1.6mm Speaker Wire | SUPRA CABLES |
| 2 | GRT5/16-1210B | BLACK Ring Type 5/16 12-10 Gold Plated Brass | SOLEN |
| 2 | GRT5/16-1210R | RED Ring Type 5/16 12-10 Gold Plated Brass | SOLEN |
| 20 | 8-32x1.00 | #8-32 x 1" Socket Head Bolt Black | SOLEN |
| 20 | 8-32EZLOK | 8-32 E-Z Lok Wood Insert | SOLEN |
| 8 | OXSOCKET6X3/4 | #6 x 3/4" Hex Socket Head Screw Black | SOLEN |
| 16 | OXSOCKET8X1 | #8 x 1" Hex Socket Head Screw Black | SOLEN |
| 8 | 6X3/4P | #6 x 3/4" Pan Screw Black | SOLEN |
| FILENAME | ACTION |
|---|---|
| SOLEN HORIZON - SPEAKER KIT MANUAL V01.pdf | Download |
