Solen PURE, 2way Speaker Kit using the Scan-Speak Discovery 18W/4434G00 and D2608/9130.
The Solen Pure speaker kit was designed with the goal of having a crossover with no parts in parallel. The crossover is
composed of a 1st order network with some filters to get a flatter frequency response. The tonality of the Solen Pure is fairly
neutral with a slight warm tendency. The small rise starting at 12kHz gives a nice airy and sparkly sound. The bass is well
defined and controlled. The main strong point of the Solen Pure is the big and wide soundstage they provide when
correctly positioned in the room. The sound easily goes beyond the speakers. The Solen Pure are designed to be listened to
slightly off-axis (small toe-in to no toe-in depending on tonality preference).
HIGHLIGHTS
- Big and wide soundstage
- Strong and controlled bass
- Smooth yet detailed sound
SPECIFICATIONS
- HIGH FREQUENCY DRIVER : Scanspeak D2608/9130
- LOW FREQUENCY DRIVER : Scanspeak 18W/4434G00
- FREQUENCY RESPONSE ON AXIS (±3dB) : 50 Hz - 22 kHz
- LOW FREQUENCY EXTENSION (-10dB IN A TYPICAL ROOM): 35 Hz
- SENSITIVITY IN-ROOM (2.83V/1m): 88 dB
- IMPEDANCE : 4Ω (minimum 3.7Ω at 200Hz)
- EXTERNAL DIMENSIONS (HxWxD) : 386.5x222.5x292.05 mm (15¼x8¾x11½ in)
- RECOMMENDED AMPLIFIER POWER : 50W+ at 4Ω
- WEIGHT : 10.6 kg (23.4 lbs) each
Solen offers the detailed plans if you want to build the cabinets yourself.
We also have professionally assembled and
painted cabinet.
!!! NO ASSEMBLY INCLUDED !!!
!!! CABINETS NOT INCLUDED !!!
5 Versions of the Cabinets are available:
PURE BOX FP = Flat Pack MDF unassembled
PURE BOX BS = Black Satin Finish Cabinets
PURE BOX WS = White Satin Finish Cabinets
PURE BOX OAK = Natural Oak Veneer with White Front Baffle Satin Finish Cabinets
PURE BOX WALNUT = Natural Walnut Veneer with Black Front Baffle Satin Finish Cabinets
| KIT CONTENT |
| QT | PART # | ITEM | MANUFACTURER |
| 2 | D2608/9130 | 26mm SILK DOME TWEETER, 8 OHMS | SCAN-SPEAK |
| 2 | 18W/4434G00 | 180mm GLASS FIBER CONE MIDBASS, 4 OHMS | SCAN-SPEAK |

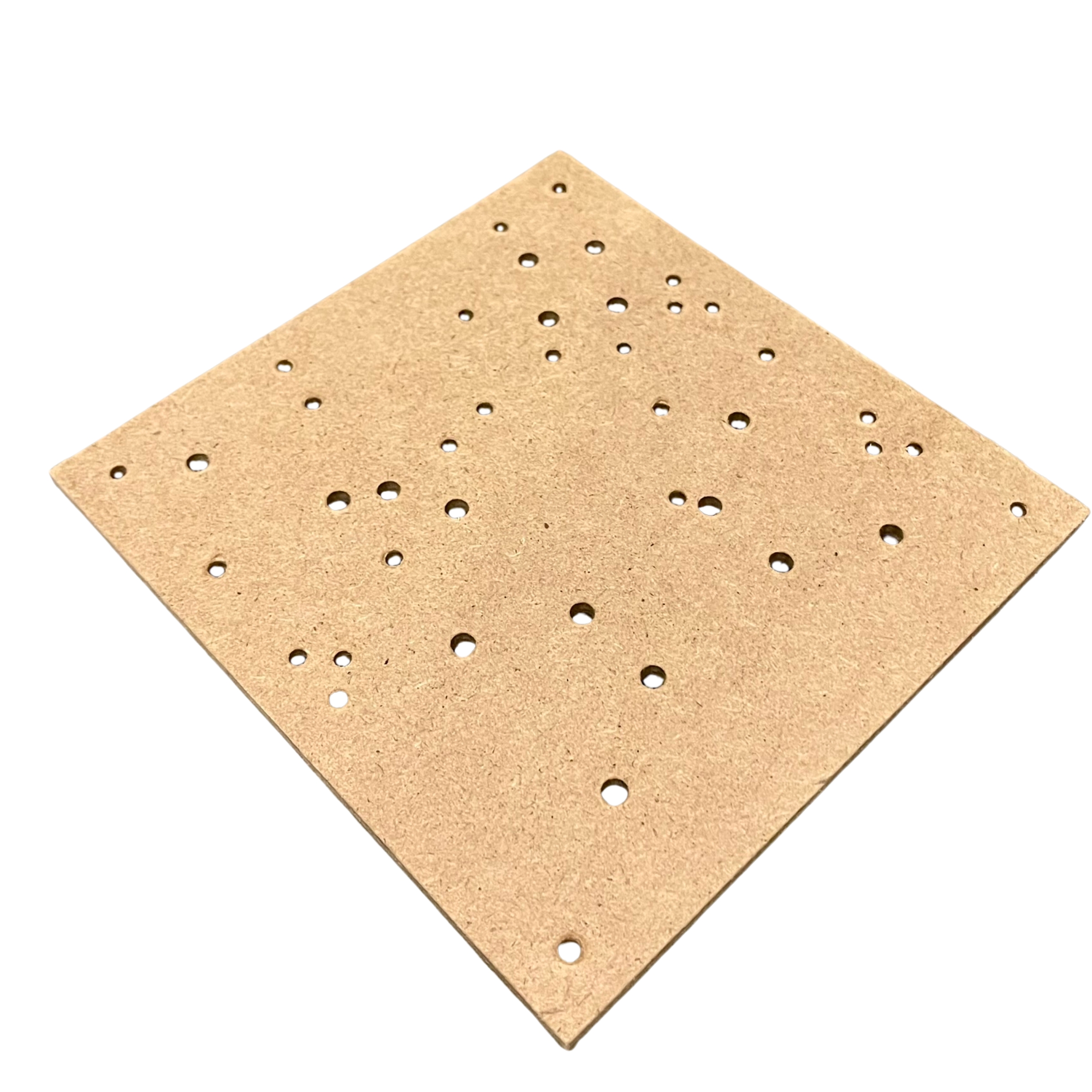

| 2 | PURE BOARD | CROSSOVER BOARD FOR PURE SOLEN SPEAKER KIT | SOLEN |
| 2 | SA470 | 4.7mfd 100v Film/Foil Polypropylene Caps | SOLEN |
| 2 | PPE056 | 0.56mfd Fast Capacitors 630v PPE Series Metallized Polypropylene | SOLEN |
| 2 | L141.1 | 1.1mH 14awg Litz, 0.33ohms DCR, 19mm H x 76mm D | SOLEN |
| 2 | L16.20 | 0.20mH 16awg Litz, 0.18ohms DCR, 13mm H x 51mm D | SOLEN |
| 2 | AOC1600G2R4 | 2.4 Ohms 16W 2% AchrOhmiC Non-Inductive Wirerwound Resistors | SOLEN |
| 2 | AOC1600G6R2 | 6.2 Ohms 16W 2% AchrOhmiC Non-Inductive Wirerwound Resistors | SOLEN |
| 6 | 322GDS | DUAL CROSSOVER TERMINAL | SOLEN |
| 12 | TY5242MX | Tie Wrap 3.6mm x 21cm | SOLEN |
| 2 | PT-2FP | Speaker Cabinet Parabolic Port Tube 51mm x 150mm (2"x6") | SOLEN |
| 1 | DAMPING PAD HALF | Black Alsphat Saturated Felt, Self Adhesive 39"x19.5"x1/8" | SOLEN |
| 1 | FLEX-XEL S-125 HALF | Recycled Felt Absorbing Product 40"x20"x7/8" | SOLEN |
| 40 | SCE41BSC | VERSATILE RUBBER FOAM GASKET | SOLEN |
| 2 | DBPPB-CMC | DUAL BINDING POST PLATE BLACK CMC | SOLEN |
| 4 | 858-LU | CMC 16mm D BINDING POST GOLD PLATED 35mm L SHAFT | SOLEN |
| 4 | GFD110-1614B | BLACK Fem. Disc. .110 16/14 Gold Plated Brass | SOLEN |
| 4 | GFD110-1614R | RED Fem. Disc. .110 16/14 Gold Plated Brass | SOLEN |
| 2 | GFD205-1614R | RED Fem. Disc. .205 16/14 Gold Plated Brass | SOLEN |
| 2 | GRT5/16-1210B | BLACK Ring Type 5/16 12-10 Gold Plated Brass | SOLEN |
| 2 | GRT5/16-1210R | RED Ring Type 5/16 12-10 Gold Plated Brass | SOLEN |
| 4 | M22759/11-14-0 | Cu/Ag 14awg Teflon Black | SOLEN |
| 4 | M2275911-14-2 | Cu/Ag 14awg Teflon Red | SOLEN |
| 3 | M22759/11-16-0 | Cu/Ag 16awg Teflon Black | SOLEN |
| 3 | M22759/11-16-2 | Cu/Ag 16awg Teflon Red | SOLEN |
| 28 | OXSOCKET8X1 | #8 x 1" Hex Socket Head Screw Black | SOLEN |
| 8 | 6X3/4P | Pan Srew #6x3/4" | SOLEN |
