SBPG-CF
- SBPG-CF
- SOLEN

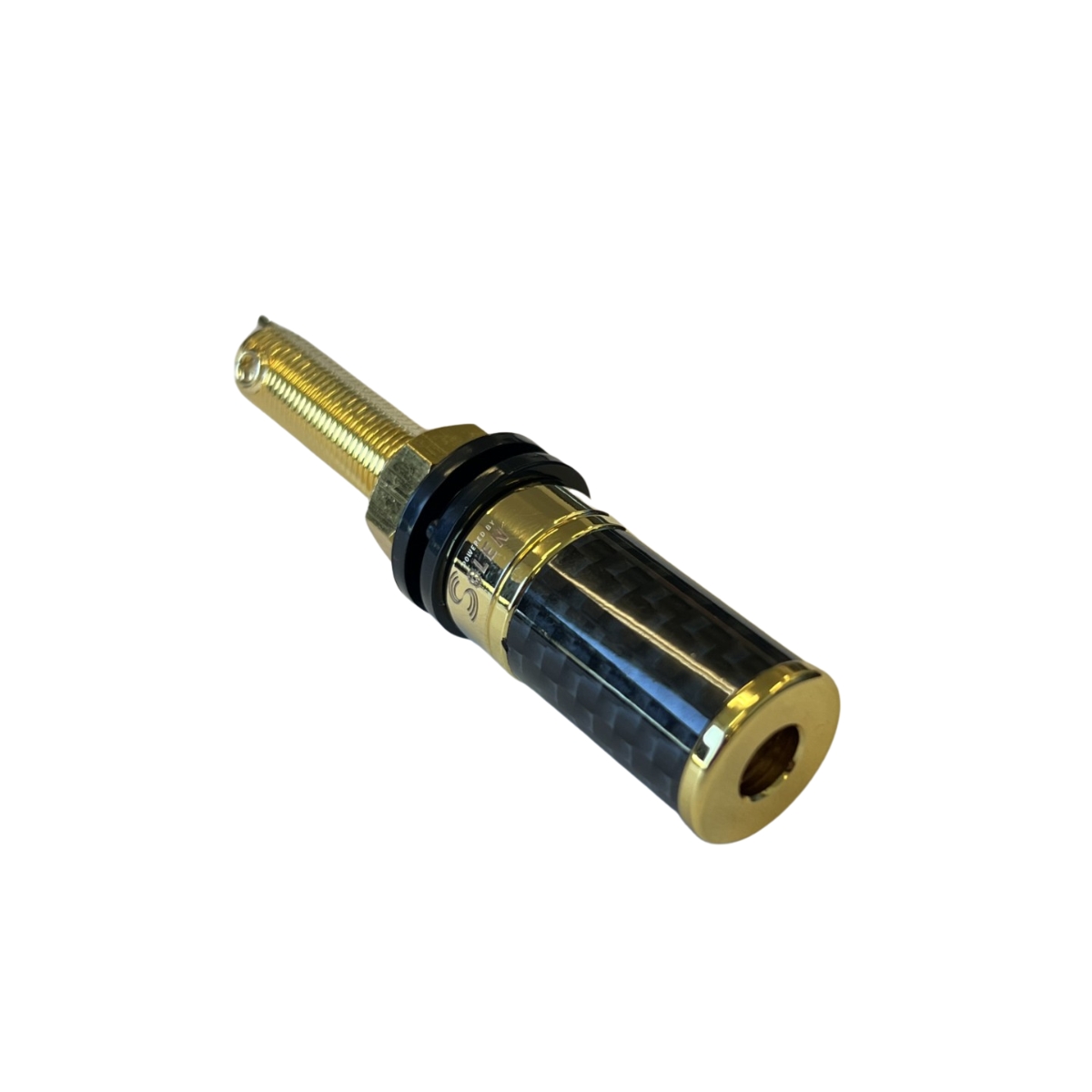

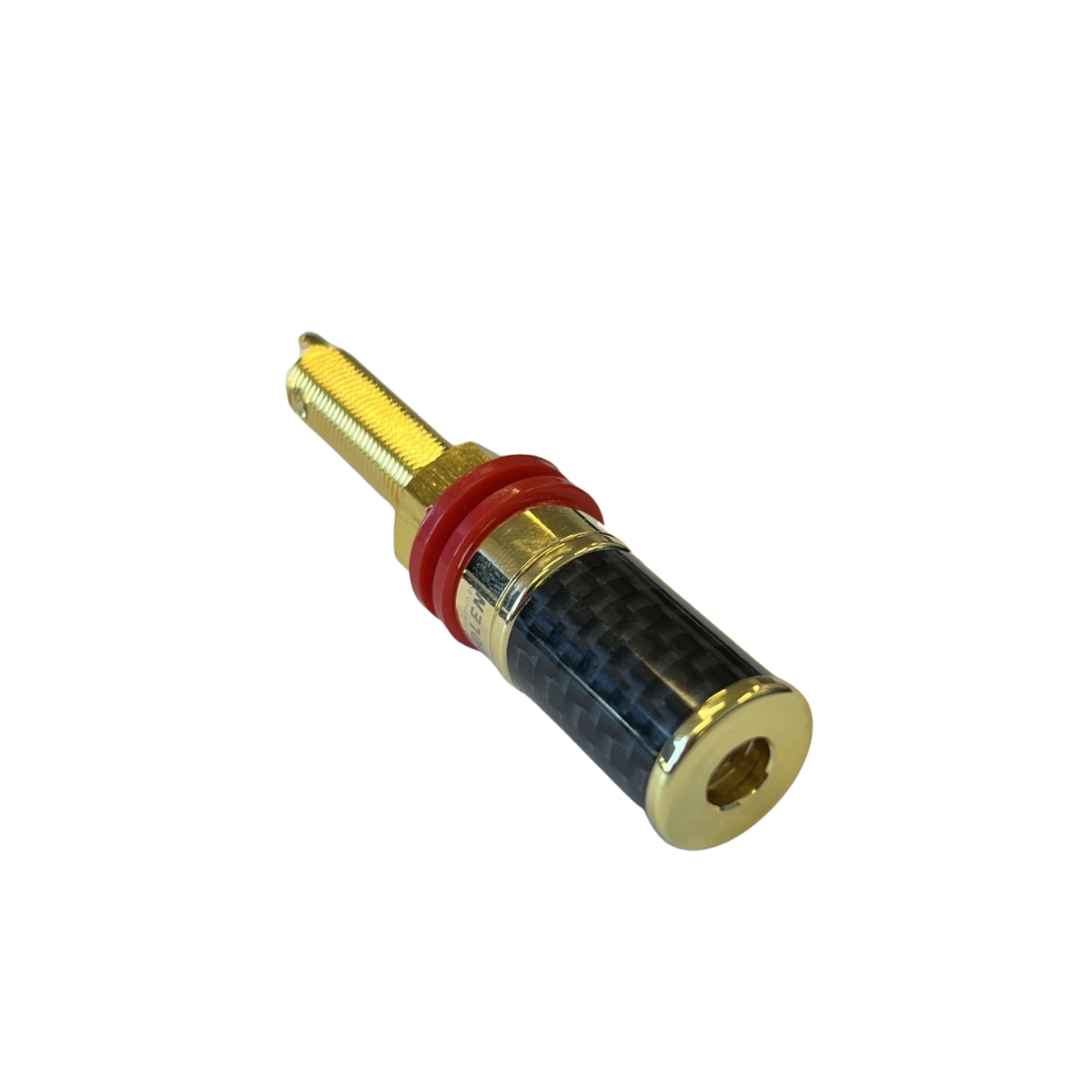

Solen SBPG-CF, High Quality Brass Gold and Carbon Fiber Binding Post.
| Product Specifications | |
|---|---|
| Manufacturer | SOLEN |
| Summary | Binding Post Beryllium Copper Brass / Gold / Carbon Fiber |
Summary: . High Performance Audio Binding Post Connectors
. Carbon Fiber / Beryllium Copper Gold-Plated Brass
. Protection of high-quality housing
Features: . Connections: Set-screw
. Five way binding post specially designed to increase contact area and effect stable more transmission.
. Unique main body design that ensures very firm wire connections that can be soldered or fixed by set screw.
. Material: Binding Post Body Beryllium Copper Brass Gold Plated / Housing-Carbon Fiber Brass
Specifications:
. Specifications: Max. Wire diameters up to 4.0mm.
. Specifications: Accepts 4.0mm Banana Plug and/or Spade.
. Mounting Insulation set POM(Red, Black),16mm ±0.1mm diameter X 3mm± 0.1mm thick.
. Body: 65mm ± 0.2mm overall length.
. Use of open holes: 12mm ±0.5mm.
. Maximum applicable panel thickness : 24mm.
. 16mm D Binding Post Gold Plated 35mm L shaft.
Solen Binding Post Gold Plated Beryllium Copper Brass, Sold Individually not in pair.
