SP1-700-HT
2 left in stock

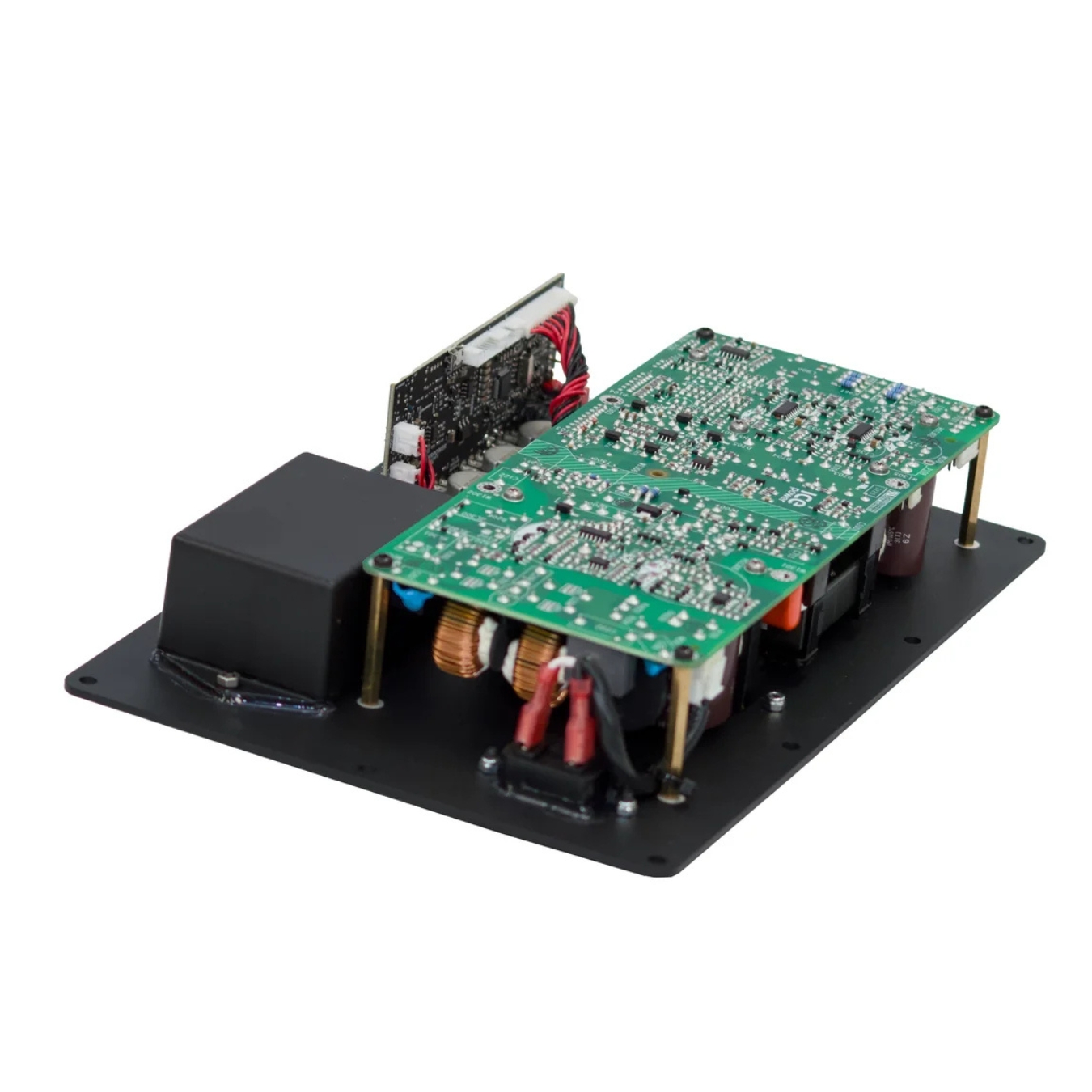

SPEAKER POWER SP1-700-HT, 700w Class D Subwoofer Plate Amplifier.
CA$798.00Each
- SP1-700-HT
- SPEAKERPOWER
SPEAKER POWER SP1-700-HT, 700w Class D Subwoofer Plate Amplifier.
Mono Block Subwoofer Plate Amplifier
Home Theater (HT)
STABLE at 2 ohms
1000W @ 2.7 ohms
700W at 4 ohms
350W at 8 ohms
53 VRMS (75 Vp) at Hi-Z
Subwoofer DSP Controls
OVERVIEW:
- This product is uniquely designed to produce high power output at extremely low frequencies, making it perfect for meeting the demands of synthesized bass and explosive special effects in both music and cinema. Its long-term durability ensures excellent performance every time.
- Utilizing Full Bridge Outputs allows for consistent high-power output by eliminating current pumping.
- The MONOBLOCK architecture ensures consistent and powerful performance.
FEATURES:
3-MODE SWITCH
- ON - Amplifier ON
- AUTO - Signal Sense, Amplifier ON with signal (20 min. timeout)
- OFF-12V - Amplifier OFF, 12V TRIGGER enables amp
CONNECTIONS
- 3.5mm minijack 12V TRIGGER (IN / THRU)
- DUAL RCA (Single-ended) Summing with LFE
- XLR (Balanced) with Looping out (THRU)
- IEC C13 AC mains connector
- NL-4 SPEAKON auxiliary speaker connector
LED INDICATION
- GREEN - ON, Amplifier ready to pass signal
- RED - STBY, Amplifier is in low-power standby
ROTARY CONTROLS
- GAIN - 0dB (MAX) to MUTE (MIN), 316mV input sensitivity at MAX GAIN
- LF ADJUST - 25Hz Peaking Filter ("Bass Boost", CUT-12dB, BOOST+12dB)
- X-OVER - 60Hz to OUT (500Hz)
- DELAY - 0ms to 20ms
SPECIFICATIONS:
- AMPLIFIER TOPOLOGY CLASS-D
- POWER SUPPLY 1000W
- FREQUENCY REPSONSE 5Hz to 500Hz (+-1.5dB)
- AMPLIFIER GAIN 45dB
- AC MAINS 100 - 265VAC 50/60Hz (Universal)
- STANDBY POWER DRAW 1W
- COOLING ALUMINUM HEATSINK
- INPUT SENSITIVITY 316mV (at MAX GAIN)
- INPUT IMPEDANCE 10K (unbalanced) / 20K (balanced)
- OUTPUT IMPEDANCE <0.01 ohm 5Hz-500Hz
- DIMENSIONS
- HEIGHT 10.75 in. (273 mm)
- DEPTH 2.0 in. ( 51 mm)
- WIDTH 7.2 in. (183 mm)
- WEIGHT 3 LBS (1.4 kg)
