SP2-8000-HT
In stock
SPEAKER POWER SP2-8000-HT, 2x 2600w Class D Subwoofer Standalone Rackmount Amplifier. !!! ITEM NOT ACTUALLY IN STOCK, ALLOW 2 TO 3 WEEKS FOR DELIVERY !!!
CA$4,699.16Each
- SP2-8000-HT
- SPEAKERPOWER
SPEAKER POWER SP2-8000-HT, 2x 2600w Class D Subwoofer Standalone Rackmount Amplifier.
Dual Mono Block Subwoofer Rack Amplifier
Home Theater (HT)
19" Rack Mount - 2RU
Power Rating Per Channel:
STABLE at 1 ohm
4000W at 2 ohms
2600W at 4 ohms
1500W at 8 ohms
115 VRMS (162 Vp) at Hi-Z
Independent Subwoofer DSP Controls per channel
OVERVIEW:
- This product is uniquely designed to produce high power output at extremely low frequencies, making it perfect for meeting the demands of synthesized bass and explosive special effects in both music and cinema. Its long-term durability ensures excellent performance every time.
- Utilizing Full Bridge Outputs allows for consistent high-power output by eliminating current pumping.
- The DUAL MONOBLOCK architecture ensures consistent and powerful performance.
FEATURES:
3-MODE SWITCH
- ON - Amplifier ON
- AUTO - Signal Sense, Amplifier ON with signal (20 min. timeout)
- OFF/TRIG - Amplifier OFF, 12V TRIGGER enables amp

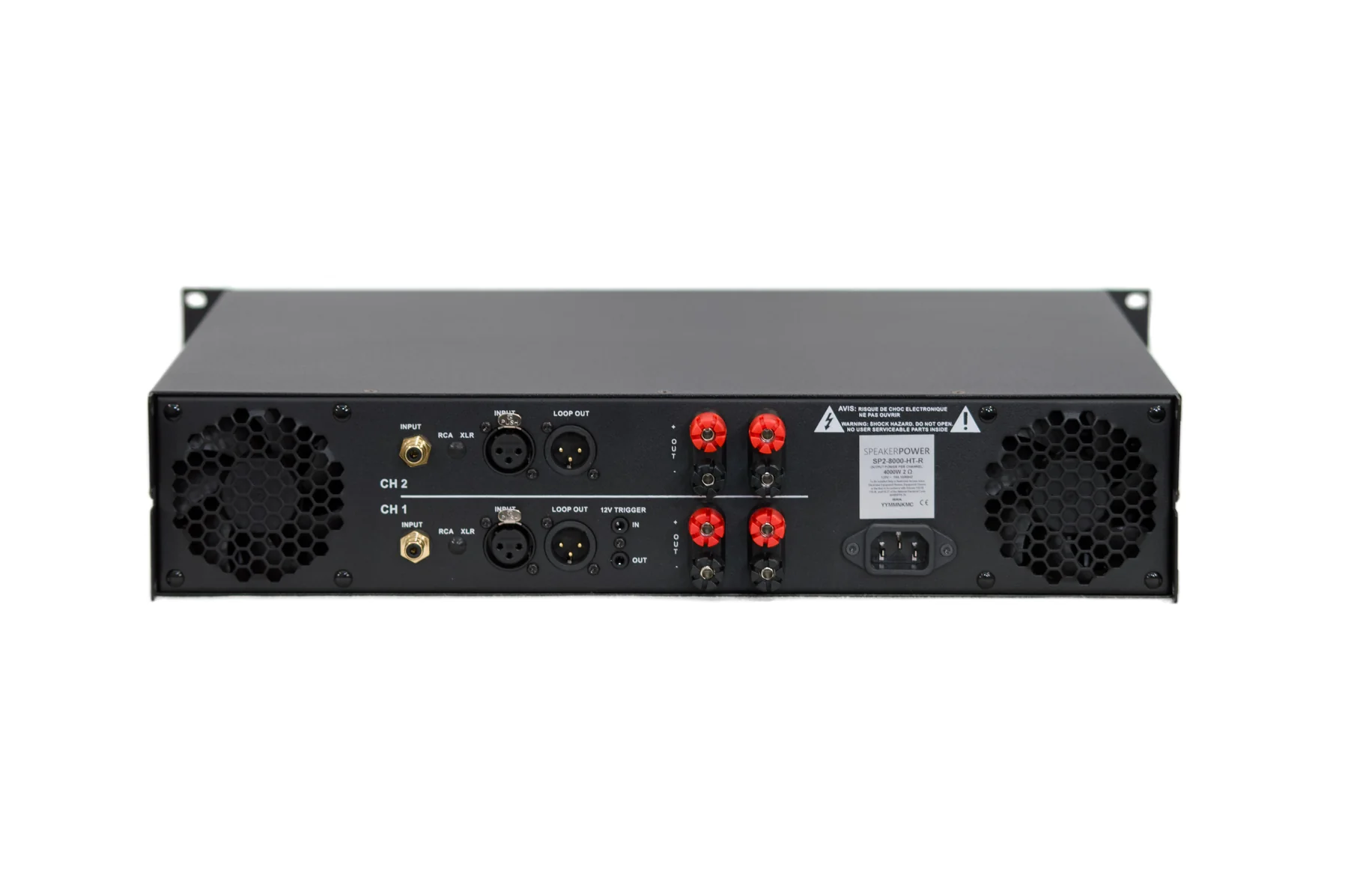

CONNECTIONS
- 3.5mm minijack 12V TRIGGER (IN / THRU)
- RCA (Single-ended) per channel
- XLR (Balanced) with Looping out (THRU) per channel
- IEC C13 AC mains connector
- Two paralleled binding posts (5-way, up to 12AWG) per channel
LED INDICATION
- GREEN - ON, Amplifier ready to pass signal
- RED - STBY, Amplifier is in low-power standby
ROTARY CONTROLS
- GAIN - 0dB (MAX) to MUTE (MIN), 316mV input sensitivy at MAX GAIN
- LF ADJUST - 40Hz Tone Shelf ("Bass Boost", CUT-12dB, BOOST+12dB)
- CROSSOVER - 60Hz to OUT (500Hz)
- DELAY - 0ms to 20ms
SPECIFICATIONS:
- AMPLIFIER TOPOLOGY CLASS-D
- POWER SUPPLY 4000W per monoblock module
- FREQUENCY REPSONSE 5Hz to 500Hz (+-1.5dB)
- AMPLIFIER GAIN 45dB
- AC MAINS 100 - 125VAC 50/60Hz (120VAC ONLY)
- STANDBY POWER DRAW 20W
- COOLING EXTRUDED ALUMINUM HEATSINK per module
- FANS TEMPERATURE ACTIVATED, turn on at 175F (80C) internal
- INPUT SENSITIVITY 316mV (at MAX GAIN)
- INPUT IMPEDANCE 10K (unbalanced) / 20K (balanced)
- OUTPUT IMPEDANCE <0.01 ohm 5Hz-500Hz
- DIMENSIONS
- HEIGHT 3.5 in. ( 88.9 mm) - 2 RACK UNITS (2RU)
- WIDTH 19 in. (482.6 mm)
- DEPTH 14.5 in. (368.3 mm)
- WEIGHT 22 LBS (9.97 kg)
