DR45N
2 left in stock

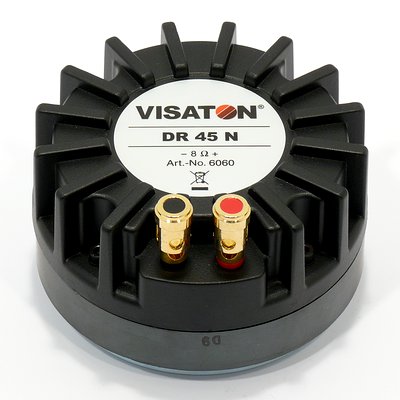

Visaton DR45N, 40mm (1.5in / 1-1/2in) Titanium Compression Driver, 8ohm, #6060, 1in Throat.
CA$672.00Each
- DR45N
- VISATON
Visaton DR45N, 40mm (1.5in / 1-1/2in) Titanium Compression Driver, 8ohm, #6060, 1in Throat.
| Product Specifications | |
|---|---|
| Manufacturer | VISATON |
| Tweeter Type | Titanium Compression Driver |
| Cone / Dome Diameter | 40mm |
| Impedance | 8 ohms |
| Power Handling (RMS) | 100 W |
| Frequency Response | 500 - 12000 Hz |
| Sensitivity | 102 dB |
| Voice Coil Diameter | 40mm |
Professional 1" driver with titanium dome, in conjunction with the exponential horn system M 300, as midrange driver above 800 Hz.
The 40 mm aluminium-voice-coil and the heavy duty magnet drive are making this system suitable for professional horn-driver units with the required high efficiency and high power handling.
The very linear frequency response of this horn-driver unit is also matching the demands of highly professional high end applications.
| FILENAME | ACTION |
|---|---|
| DR45N.pdf | Download |
