FRS708
4 left in stock

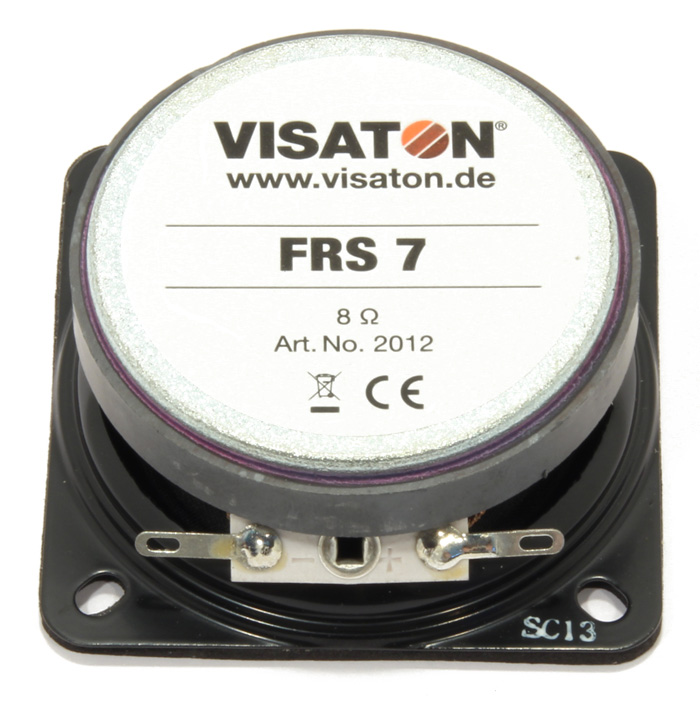

Visaton FRS7, 67mm (2.5in / 2-1/2in) Paper Cone Fullrange, with 14mm voice Coil, #2012, 8ohm.
CA$20.66Each
- FRS708
- VISATON
Visaton FRS7, 67mm (2.5in / 2-1/2in) Paper Cone Fullrange, with 14mm voice Coil, #2012, 8ohm.
| Product Specifications | |
|---|---|
| Manufacturer | VISATON |
| Speaker Type | Paper Cone Fullrange |
| Nominal Diameter | 6.7cm |
| Impedance | 8 ohms |
| Power Handling (RMS) | 8 W |
| Frequency Response | 200 - 20000 Hz |
| Sensitivity | 88 dB |
| Voice Coil Diameter | 14mm |
6.5 cm (2.5") fullrange speaker with balanced frequency response and very good highs. Especially suitable as built-in speaker for music reproduction and as driver for 100 V network column speakers. Outstandingly high efficiency compared to the small size. Equivalent to model FRS 7 A - 8 Ohm, but with soldering lugs 2.7 x 0.3 mm (+) and 2.7 x 0.3 mm (-).
64 IP protection class for front side when built into a sealed enclosure (gluing of the loudspeaker and a front cover (grille) might be necessary)
Typical applications
- Narrow network column speakers
- Monitoring speaker for electronic devices
- Model construction
- Electronic musical instruments
Attributes
- Waterproof membrane
- metal design
- 100 °C temperature resistant
| FILENAME | ACTION |
|---|---|
| FRS708 SPEC SHEETS.pdf | Download |
Be the first one to review this product.
