Visaton K28.40H, 28mm x 40mm (1.125in / 1-1/8in x 1.5in / 1-1/2in) Enclosure Mounted Textile Cone Fullrange, with 14mm Voice Coil #2945, 8ohm.
Product Specifications | |
---|---|
Manufacturer | VISATON |
Speaker Type | Textile Cone Fullrange |
Nominal Diameter | 2.8 x 4cm |
Impedance | 8 ohms |
Power Handling (RMS) | 2 W |
Frequency Response | 390 - 20000 Hz |
Sensitivity | 79 dB |
Voice Coil Diameter | 14mm |

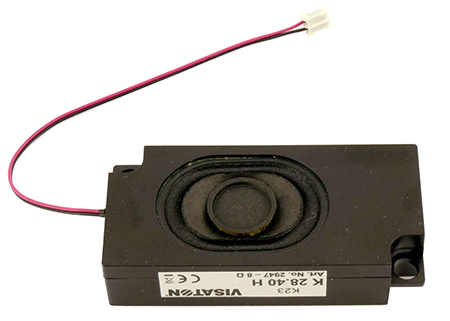

2.8 cm x 4 cm (1.1” x 1.6”) speaker with paper cone in a rectangular cabinet with 3M VHB 5915 adhesive tape (25 mm x 40 mm) on rear side for quick and easy installation.
Small dimensions due to neodymium magnet. Connection realised by a 120 mm long cable and JST PHR-2 connector. With well-balanced sound transmission.
FILENAME | ACTION |
---|---|
K2840H.pdf | Download |
