PAW30ND
2 left in stock

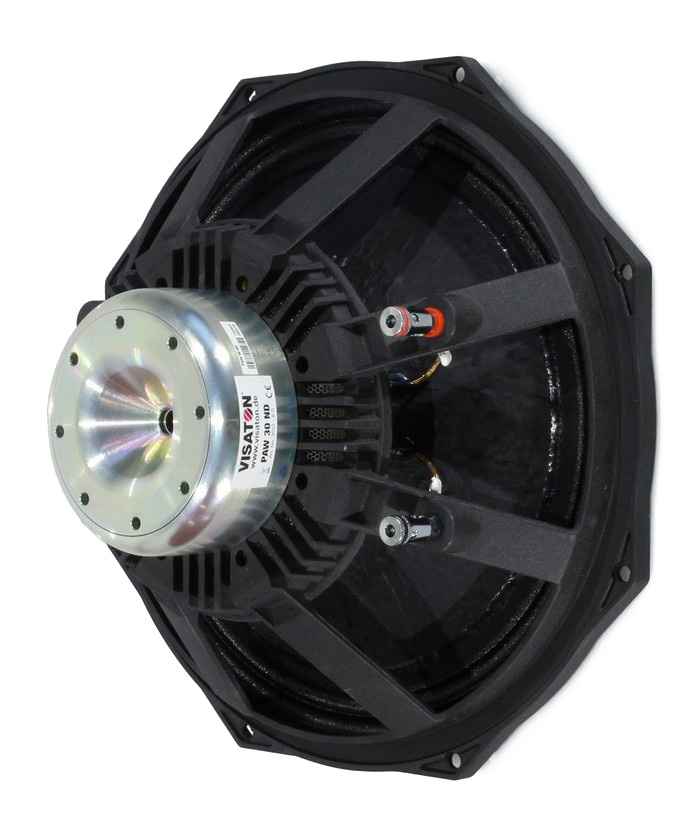

Visaton PAW30ND, 329mm (13in) Paper Cone Pro Midbass, with 75mm Voice Coil, #3052, 8ohm.
CA$557.57Each
- PAW30ND
- VISATON
Visaton PAW30ND, 329mm (13in) Paper Cone Pro Midbass, with 75mm Voice Coil, #3052, 8ohm.
| Product Specifications | |
|---|---|
| Manufacturer | VISATON |
| Speaker Type | Paper Cone Pro Midbass |
| Nominal Diameter | 32.9cm |
| Impedance | 8 ohms |
| Power Handling (RMS) | 400 W |
| Frequency Response | 45 - 5500 Hz |
| Sensitivity | 93 dB |
| Voice Coil Diameter | 75mm |
30 cm (12") bass midrange for PA applications.
Attributes
- Octagonal die cast basket
- Paper membrane
- 75 mm voice coil for high power handling
- Til voice coil former
- Vented spider
- Additional vented air gap (8 holes)
- 10 mm t-yoke venting
- M shape surround for high excursion
- Connex spider
- EVA gasket
- Neodymium magnet
- Impedance control ring (aluminum)
| FILENAME | ACTION |
|---|---|
| PAW30ND.pdf | Download |
