Visaton SUB T-25.50, Subwoofer Kit using the Visaton TIW250XS.
For the high-end TIW 250 XS - 8 Ohm woofer we recommend one of two cabinet sizes: either a small, space saving version with a net volume of 30 litres (SUB T-25.30) or a somewhat larger version with 50 litres net volume and a lower tuning (SUB T-25.50).
As one would expect, the SUB T-25.50 provides warmer, deeper bass, and the lower limiting frequency is 25 Hz, considerably lower than for the SUB T-25.30. But it is particularly in smaller rooms that the 30 litre version comes into its own. The missing low-bass (approx. 3 dB at 35 Hz) can easily be compensated for by applying a little electronic bass boost. Of course, the maximum volume level will be slightly lower as a result.

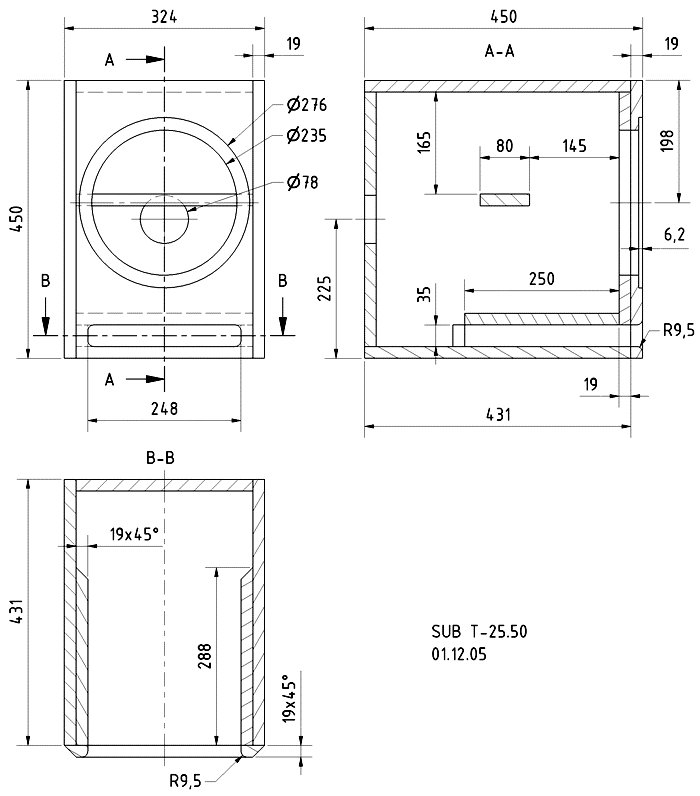

Assembly
The cabinet can be built in two stages:

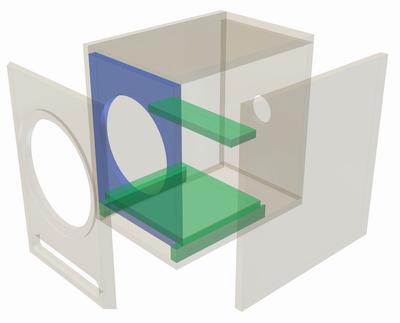

First the cut-to size pieces are butt-glued without the double baffle (outer front panel) and the necessary openings for the woofer and terminals cut out. If an amplifier module is to be used, the cut-out required for fitting it is cut into the rear wall. If no amplifier unit is to be used, fit the RPT15GCS connection terminal in the rear wall.
Next, the outer front panel can be glued in place. The rounded parts of the bass reflex port are intended to reduce flow noise at higher output levels.
Depending on how the amplifier module is built, it may be necessary to physically separate the loudspeaker space from the amplifier module inside the cabinet. In this case, the cabinet will have to be made larger so as not to steal any space from the woofer enclosure.
Inner damping
The damping material is evenly distributed in the cabinet.
| KIT CONTENT |
| QT | PART # | ITEM | MANUFACTURER |
| 1 | TIW250XS | 27cm Fiber Cone Woofer, 8 ohms, #1342 | VISATON |
| 1 | RPT15GCS | ROUND GOLD PLATED BINDING POST CUP | SOLEN |
| 3 | POLYESTER | White Bonded Polyester Batting, 12" off a roll of 42", x1.5"(38mm) | SOLEN |
| 6 | OXSOCKET10X1.25 | #10x1.25 Hex Socket Screw Black | SOLEN |
| 4 | OXSOCKET8X1 | #8x1 Hex Socket Screw Black | SOLEN |
| 3 | CLASSIC2.5 | Tin Plated OFC 2x2.5mm Speaker Wire | SUPRA CABLES |
| 1 | GFD205-1614R | RED Fem. Disc. .205 16/14 Gold Plated Brass | SOLEN |
| 1 | GFD205-1614B | BLACK Fem. Disc. .205 16/14 Gold Plated Brass | SOLEN |
| 4 | YRF | YUNG RUBBER FOOT 38mmD x 19mmH | SOLEN |
| 4 | 10X3/4P | Pan Srew #10x3/4" | SOLEN |
!!! CABINET NOT INCLUDED !!!
!!! THIS SUBWOOFER KIT CAN BE TRANSFORMED INTO AN ACTIVE SUBWOOFER BY ADDING A PLATE AMPLIFIER LIKE THE DAYTON AUDIO SPA300-D OR THE SPA250DSP !!!
