BM165.408
- BM165.408
- VOLT

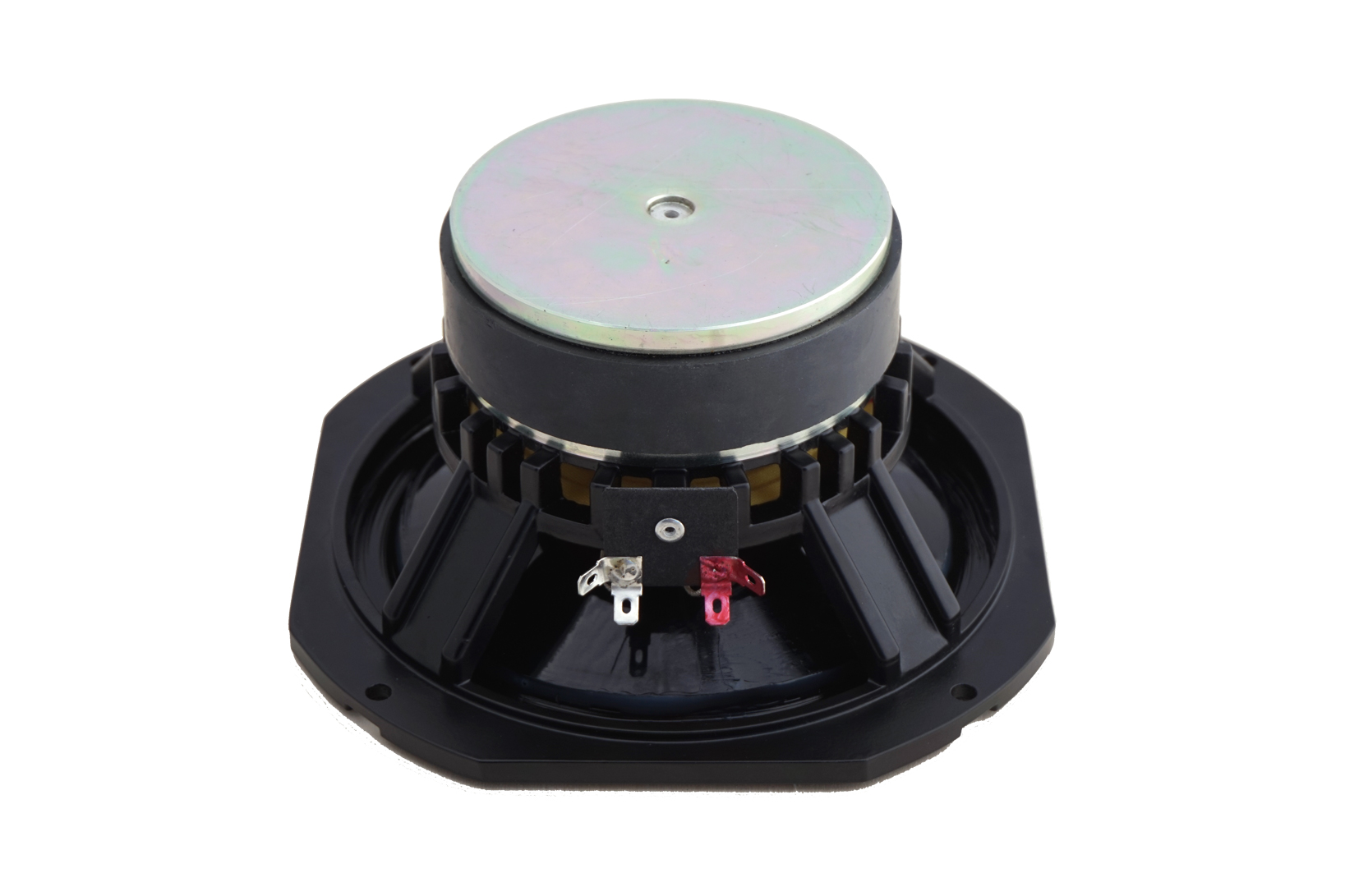

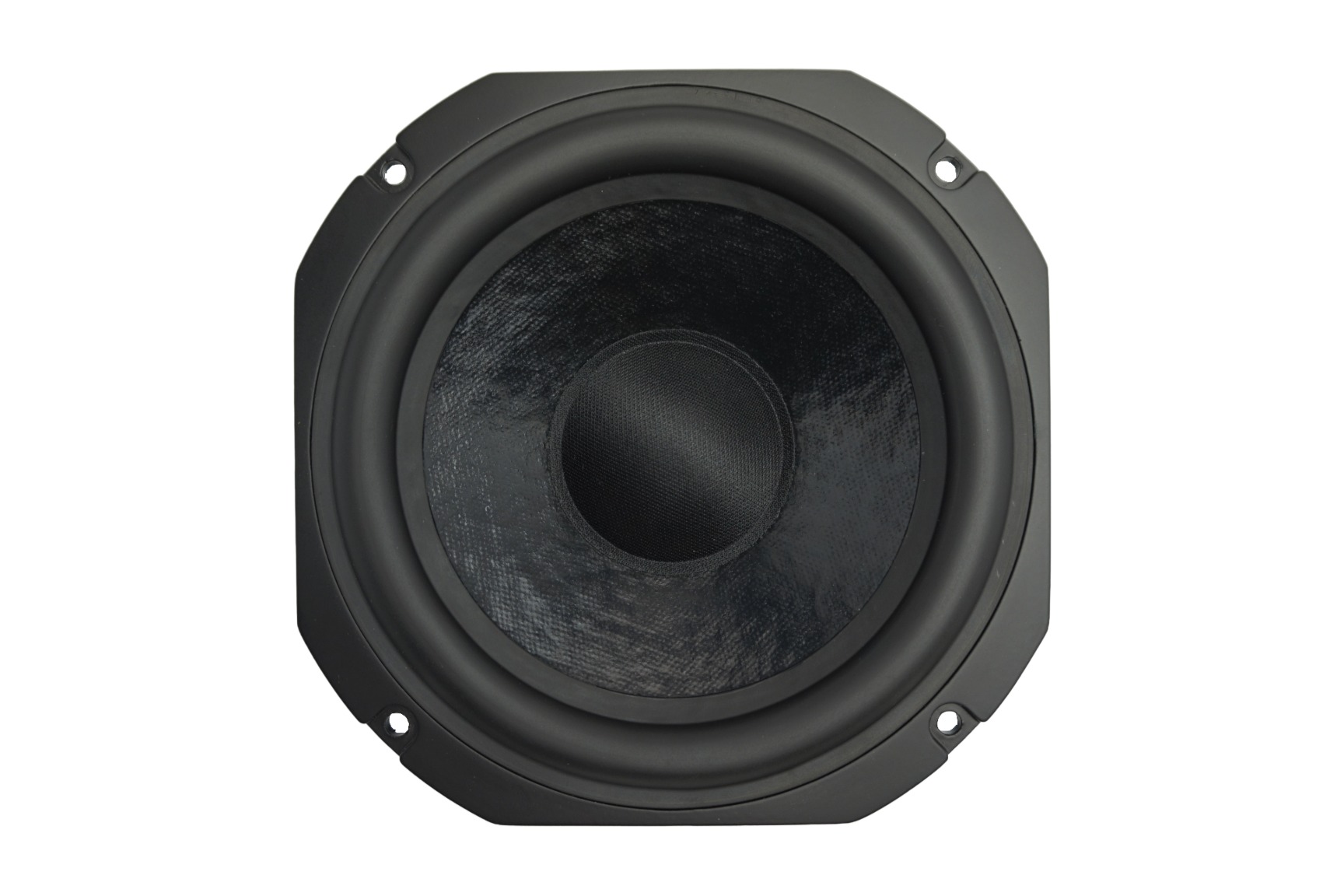

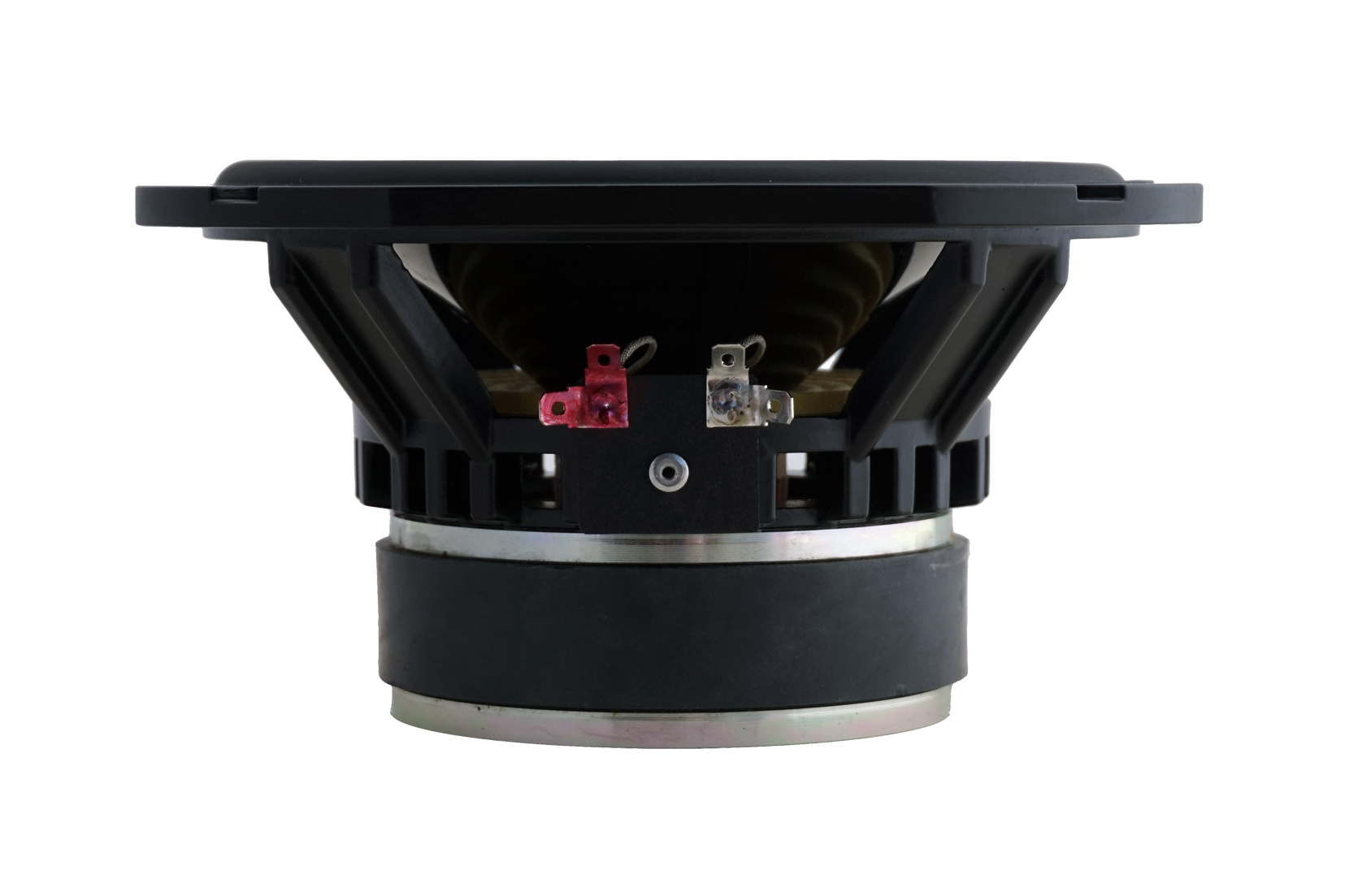

Volt Loudspeakers BM165.4, 189mm (7.5in / 7-1/2in) Treated Paper Cone Mid-Bass, with 38mm Voice Coil, 89db, 8ohm.
| Product Specifications | |
|---|---|
| Manufacturer | VOLT |
| Speaker Type | Paper Cone Mid-Bass |
| Nominal Diameter | 17cm |
| Impedance | 8 ohms |
| Power Handling (RMS) | 100 W |
| Frequency Response | 50 - 3000 Hz |
| Sensitivity | 89 dB |
| Voice Coil Diameter | 38mm |
Critically Doped Paper Pulp Cone
with double low-loss mirrored rear suspensions and diecast aluminium vented chassis
Designed for compact 2- way studio monitors, the BM165.4 (6.5") is a critically doped paper pulp cone unit developed for bass/midrange applications that require minimal colouration and low distortion over a wide frequency range. It uses a symmetrical field magnet system for large linear excursion capability with low distortion and mirrored double rear suspensions ensuring transient stability at high drive levels. The Thiele-Small parameters are optimised for relatively small enclosures to give a bass performance that complements the extended mid-band enabling optimum 2-way systems. The diecast aluminium chassis is vented below the suspensions to increase cooling airflow to the voice coil and magnet.
| FILENAME | ACTION |
|---|---|
| BM165.4_V1.pdf | Download |
