Volt Loudspeakers SB2550, 285mm (11in) Paper Cone Subwoofer, 8ohm
Product Specifications | |
---|---|
Manufacturer | VOLT |
Speaker Type | Paper Cone Subwoofer |
Nominal Diameter | 28cm |
Impedance | 8 ohms |
Power Handling (RMS) | 200 W |
Frequency Response | 18 - 500 Hz |
Sensitivity | 86 dB |
Voice Coil Diameter | 50mm |

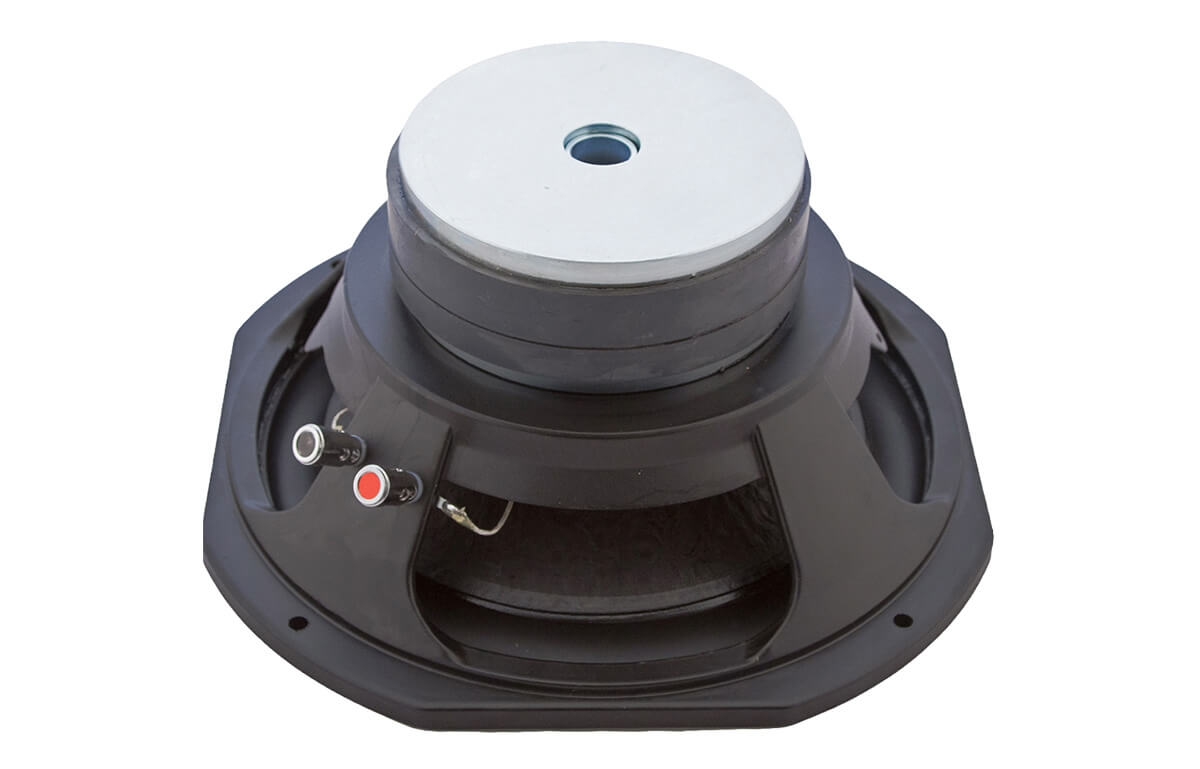

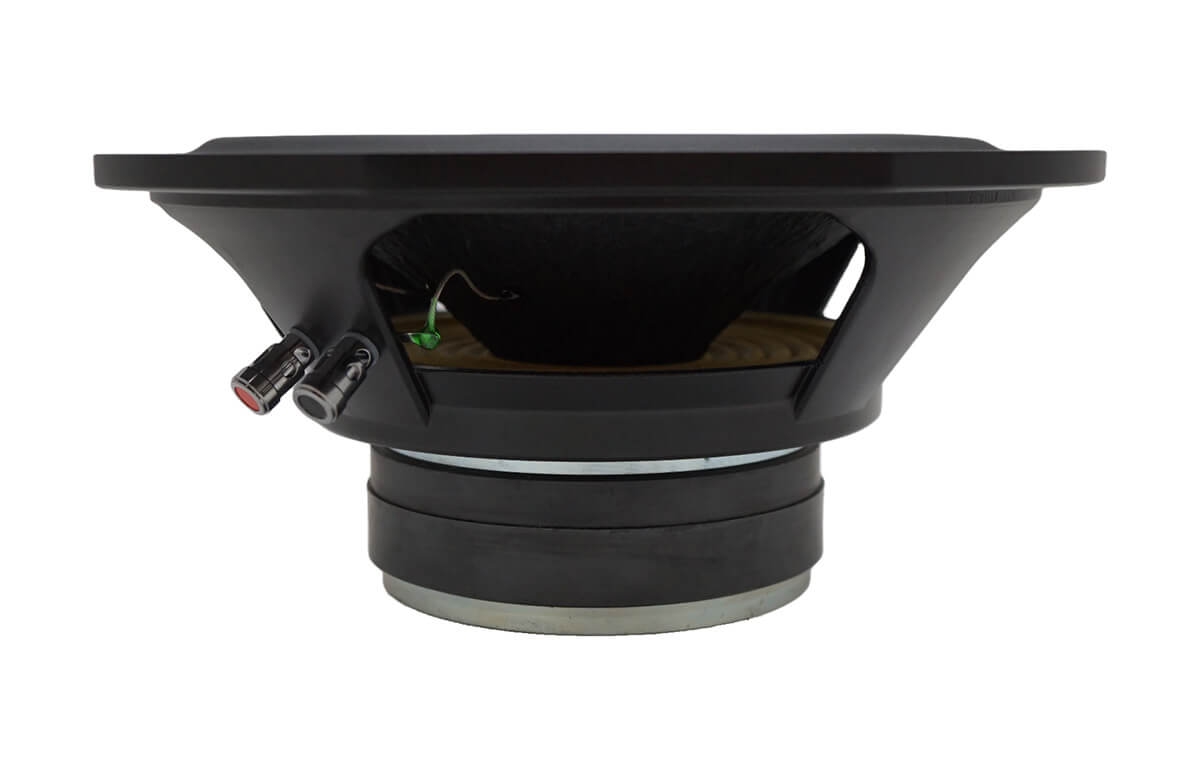

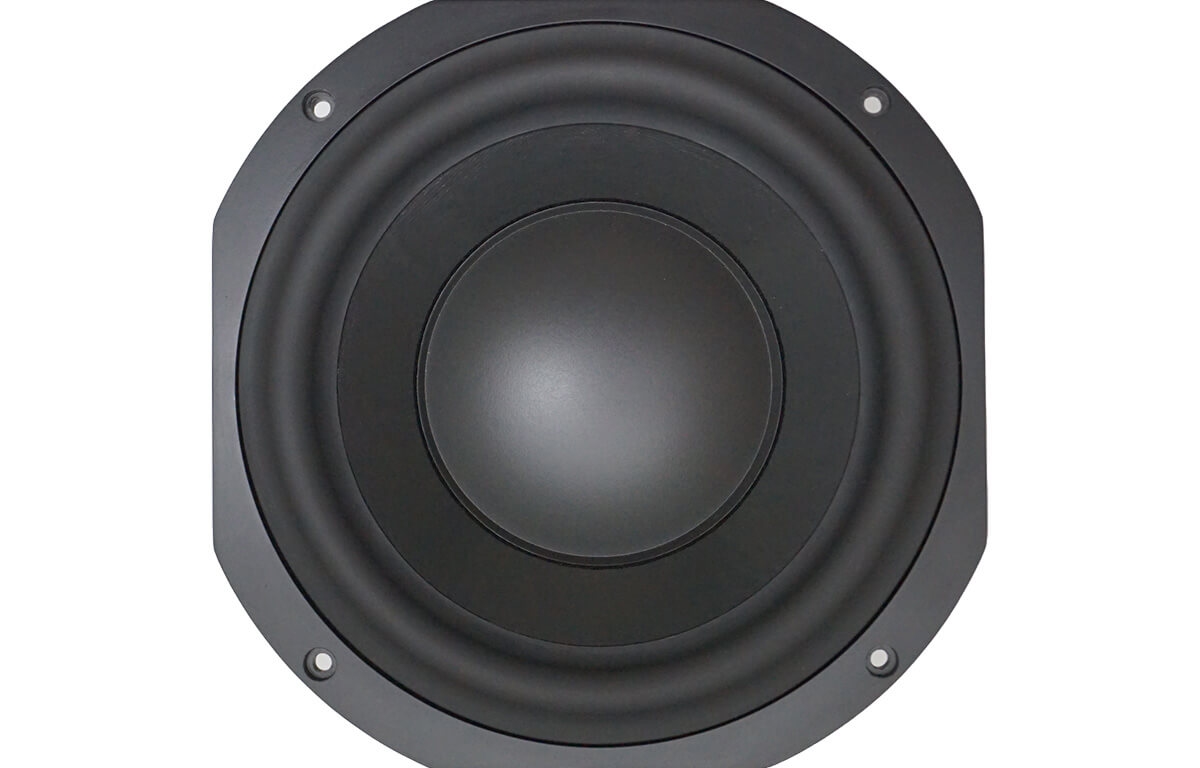

The SB2550 uses a heavy, doped cone, large rubber surround and a rigid plastic dustcap that can make high excursions with true piston movement. The stacked magnet assembly is rear vented for cooling and is deep enough to allow exceptional peak to peak travel well in excess of the substantial linear capability without bottoming out.
FILENAME | ACTION |
---|---|
b2549.pdf | Download |
