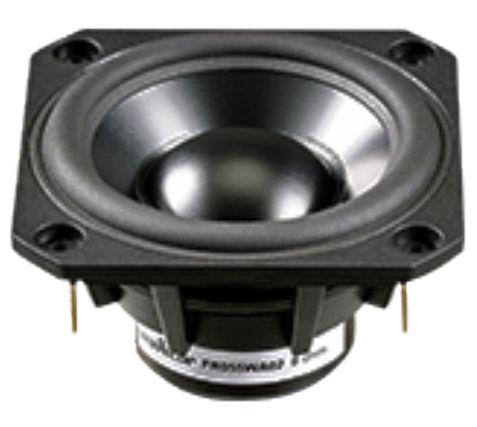

Wavecor FR055WA05, 55mm (2in) Aluminum Cone Neodymium Fullrange, 64 ohm.
The two 64 ohm fullrange transducers FR055WA05 (2”) and FR084WA03 (3.25") share same design ideas, performance targets, and applications. Both were designed for high quality Line Arrays, with 8 transducers connected in parallel (8 ohm system impedance), or 16 in parallel for 4 ohm system impedance.
FEATURES
True full-range designs with on-axis output to beyond 20 kHz
Copper cap on center pole to reduce voice coil inductance and to minimize variations in voice coil inductance as a function of voice coil position (FR084WA03 only)
Black anodized alu cone for better heat transfer
Vented polymer chassis for lower air flow speed reducing audible distortion
Vented voice coil former for reduced distortion and compression
Heavy-duty black fiber glass voice coil bobbin to reduce mechanical losses resulting in better dynamic performance and low-level details
Large motor with 22 mm voice coil diameter for better control and power handling
Low-loss suspension (high Qm) for better reproduction of details and dynamics
Black motor parts for better heat transfer to the surrounding air
Conex spider for better durability under extreme conditions
Gold plated terminals to ensure long-term trouble free connection
Delivered with foam gasket attached for hassle-free mounting and secure cabinet sealing
| FILENAME | ACTION |
|---|---|
| 64_ohm_fullranges.pdf | Download |
