FR070WA02
8 left in stock

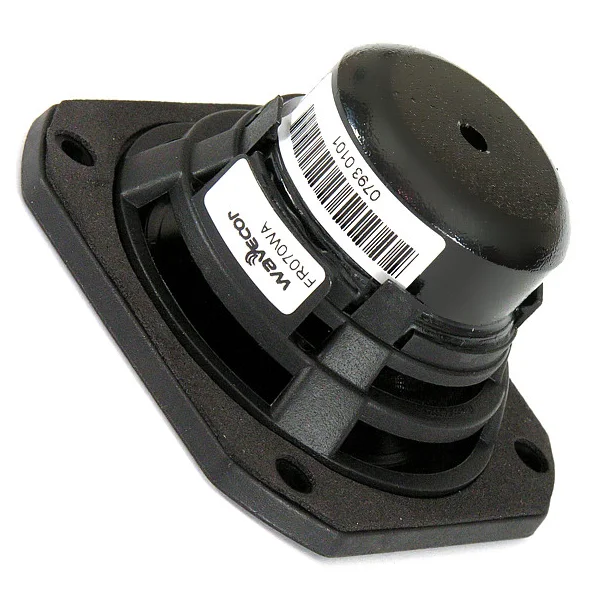

Wavecor FR070WA02, 70mm (2.5in / 2-1/2in) Aluminum Cone Fullrange, with 22mm Voice Coil, 8ohm.
CA$91.70Each
- FR070WA02
- WAVECOR
Wavecor FR070WA02, 70mm (2.5in / 2-1/2in) Aluminum Cone Fullrange, with 22mm Voice Coil, 8ohm.
| Product Specifications | |
|---|---|
| Manufacturer | WAVECOR |
| Speaker Type | Aluminum Cone Fullrange |
| Nominal Diameter | 7cm |
| Impedance | 8 ohms |
| Power Handling (RMS) | 10 W |
| Frequency Response | - Hz |
| Sensitivity | 84 dB |
| Voice Coil Diameter | 22mm |
The 2.75” transducers FR070WA01 (4 ohm) and FR070WA02 (8 ohm) were designed especially for high quality multimedia and lifestyle speakers, where sound reproduction without compromises is required. Ideal for combining with the Wavecor SW070WA 2.75” subwoofers.
Features
- True full-range design with on-axis output to beyond 25kHz
- Dual neodymium magnet structure for high efficiency and almost ideal magnetically shielding
- Copper cap on center pole to reduce voice coil inductance and to minimize variations in voice coil inductance as a function of voice coil position
- Black anodized alu cone for better heat transfer
- Optimized off-axis response
- Vented polymer chassis for lower air flow speed reducing audible distortion
- Vented voice coil former for reduced distortion and compression
- Heavy-duty black fiber glass voice coil bobbin to reduce mechanical losses resulting in better dynamic performance and low-level details
- Large motor with 22 mm voice coil diameter for better control and power handling
- Low-loss suspension (high Qm) for better reproduction of details and dynamics
- Black motor parts for better heat transfer to the surrounding air
- Conex spider for better durability under extreme conditions
- Gold plated terminals to ensure long-term trouble free connection
| FILENAME | ACTION |
|---|---|
| FR070WA01_02.pdf | Download |
