SW070WA01
14 left in stock

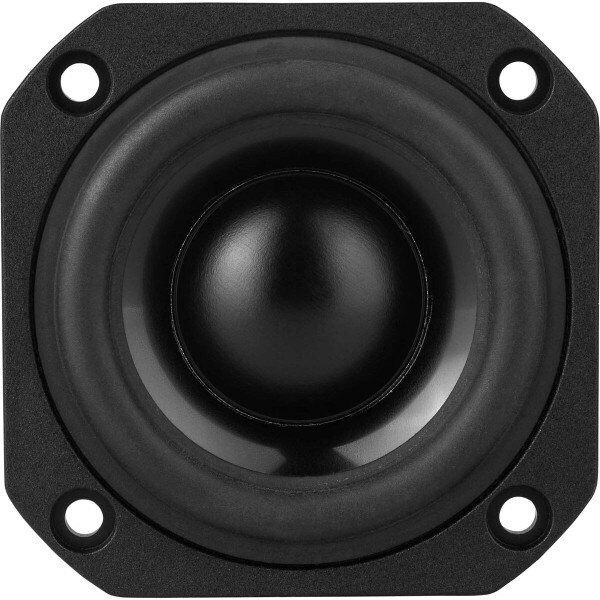

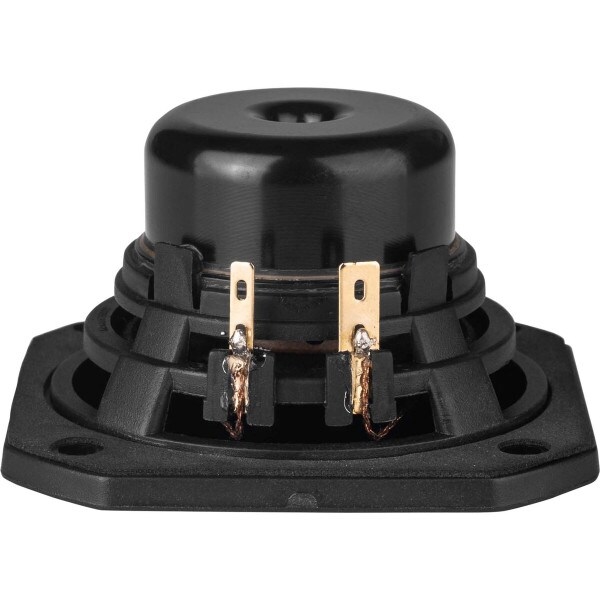

Wavecor SW070WA01, 70mm (2.5in / 2-1/2in) Aluminum Cone Subwoofer, with 26mm Voice Coil, 4ohm.
CA$91.35Each
- SW070WA01
- WAVECOR
Wavecor SW070WA01, 70mm (2.5in / 2-1/2in) Aluminum Cone Subwoofer, with 26mm Voice Coil, 4ohm.
| Product Specifications | |
|---|---|
| Manufacturer | WAVECOR |
| Speaker Type | Aluminum Cone Subwoofer |
| Nominal Diameter | 7cm |
| Impedance | 4 ohms |
| Power Handling (RMS) | - W |
| Frequency Response | - Hz |
| Sensitivity | 82 dB |
| Voice Coil Diameter | 26mm |
The 2.75” transducers SW070WA01 (4 ohm) and SW070WA02 (8 ohm) were designed especially for high quality multimedia and lifestyle speakers, where space otherwise usually does not allow for “real bass”. Ideal for combining with the Wavecor FR070WA 2.75” fullranges or any good tweeter.
Features
- True subwoofer design for vented or sealed enclosures
- Dual neodymium magnet structure for high efficiency and almost ideal magnetically shielding
- Black anodized alu cone for better heat transfer
- Vented polymer chassis for lower air flow speed reducing audible distortion
- Vented voice coil former and magnet center pole for reduced distortion and compression
- Heavy-duty black fiber glass voice coil bobbin to reduce mechanical losses resulting in better dynamic performance and low-level details
- Large motor with 26 mm voice coil diameter for better control and power handling
- Low-loss suspension (high Qm) for better reproduction of details and dynamics
- Black motor parts for better heat transfer to the surrounding air
- Conex spider for better durability under extreme conditions
- Gold plated terminals to ensure long-term trouble free connection
| FILENAME | ACTION |
|---|---|
| SW070WA01_02.pdf | Download |
