WIIM VIBELINK
Out of stock
WiiM Vibelink Amp: 100W Power Amplifier with Premium ESS 9039Q2M DAC and TI TPA3255, Space Gray.
CA$449.00Each
- WIIM VIBELINK
- WIIM
WiiM Vibelink Amp: 100W Power Amplifier with Premium ESS 9039Q2M DAC and TI TPA3255, Space Gray.
- Unleash Premium Sound - Experience powerful, distortion-free amplification with 100W per channel at 8Ω and 200W per channel at 4Ω. Equipped with PFFB technology, a premium ESS 9039Q2M DAC, and TI TPA3255 amplifier chip, it delivers superior clarity, deep bass, and dynamic range for an immersive listening experience.
- Sleek & Durable Aluminum Design - Built with a precision-crafted unibody aluminum chassis, this amplifier ensures maximum durability and peak performance. Its advanced thermal management system with a copper heat pipe and graphene heatsink keeps it cool under the most demanding conditions.

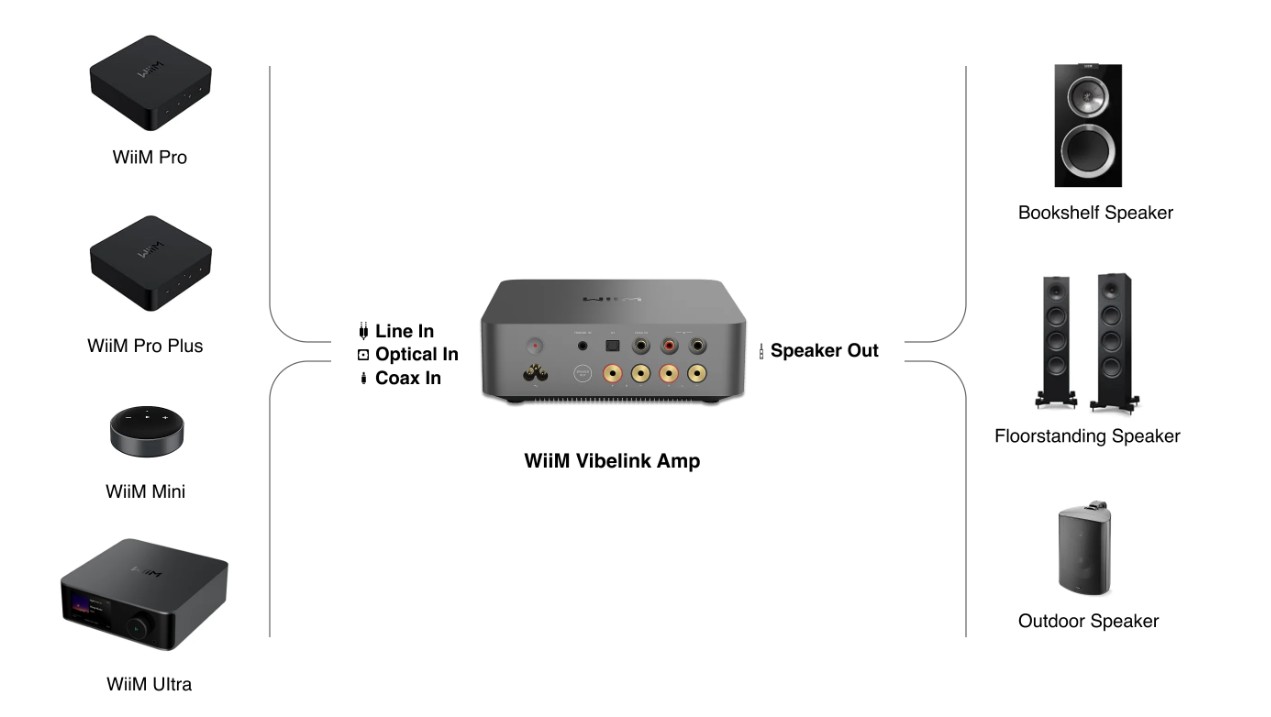

- Seamless Integration with WiiM Streamers - Designed for perfect compatibility with WiiM Mini, Pro, Pro Plus, and Ultra, the Vibelink Amp offers low-latency, high-resolution playback for a flawless streaming and audio experience.
- Pure Analog Input (no ADC conversion) - For analog purists, the direct analog input bypasses Analog-to-Digital Conversion (ADC), preserving the purest, most natural sound.
- True High-Resolution Playback - Unlike standard amps, the WiiM Vibelink Amp supports variable sample rates and bit depths, preserving lossless, high-fidelity sound for streaming, FLAC, and vinyl rips. Enjoy bit-perfect 192kHz/24-bit playback via Optical and Coax inputs with zero signal loss.
- Smart, Energy-Efficient Operation - 12V Trigger In & Auto Standby Mode provide hands-free convenience and power savings.
- Anti-Pop Noise Design – Enjoy smooth, uninterrupted audio with advanced anti-pop noise technology. The WiiM Vibelink Amp ensures seamless transitions across variable sample rates and bit depths, eliminating unwanted pops or clicks when switching tracks, sources, or playback resolutions for a flawless listening experience.
- NOTE: This device is a pure power amplifier and does not support streaming functions, unlike other WiiM devices.
Dimensions and Weight
Dimensions： 7.9 x 8.4 x 2.6 inches (200 x 212.5 x 66 mm)
Weight： 2.05 kg (4.5 lbs)
Power input: 100-240V, 50/60Hz AC, 3A Max
Power & Amplification
• Output Power : 100W per channel at 8Ω (stereo)
• Amplifier Technology : Class-D with PFFB (Post-Filter Feedback) technology
• Total Harmonic Distortion (THD+N) : ≤0.0005%
• Signal-to-Noise Ratio (SNR) : ≥120dB
• Frequency Response: 20Hz – 20kHz ± 0.5dB
• Impedence Range: 3~8 ohms
Audio Processing
• Premium DAC : ESS 9039Q2M high-performance DAC
• Bit-Perfect Playback : Supports up to 192kHz/24-bit audio
• Dynamic Range : ≥120dB for high-resolution sound
• Pure Analog Input : No ADC conversion, maintaining signal integrity

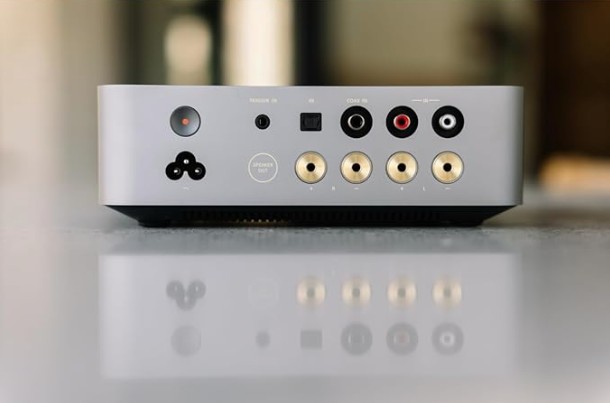

Input & Output Options
Analog Inputs:
• 1x RCA Stereo (Line-In, pure analog signal path)
✅ Digital Inputs:
• 1x Optical (TOSLINK) – Up to 192kHz/24-bit
• 1x Coaxial (S/PDIF) – Up to 192kHz/24-bit
✅ Speaker Outputs:
• Gold-plated binding posts (supports banana plugs or bare wire connections)
✅ Trigger & Power Management:
• 12V Trigger In: Auto power-on with compatible devices
• Auto Standby Mode: Powers down after 30 or 60 minutes of inactivity
Supported Audio Formats
PCM up to 192kHz/24-bit (through digital sources)
Control Interfaces
Volume Knob: Adjusts volume
LED Indicator: Three 4-color RGBW LED indicates source input and device status
| FILENAME | ACTION |
|---|---|
| Vibelink Amp_User Guide v2.5.pdf | Download |
