CF50N4-MP

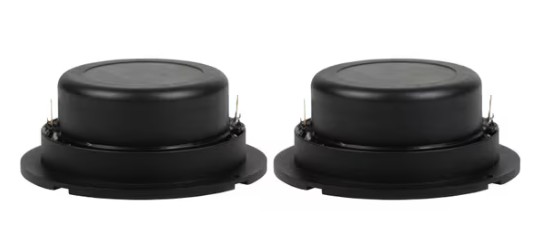

Dayton Audio CF50N-4MP, 50mm (2in) Carbon Fiber Dome Midrange Matched Pair 4 Ohm, 100m Faceplate

The matched pair of Dayton Audio CF50N-4MP combines 2” carbon fiber domes with high-energy neodymium motors to deliver accurate midrange response from incredibly compact packages. Sold as a frequency response matched pair, the CF50N-4MP ensures that your system will produce optimal imaging with a wide soundstage. The lightweight but rigid diaphragms have been optimized for wide dispersion and controlled response throughout the pass band. Rubber surrounds keep the domes centered while damping the edge of the diaphragms to keep any unwanted resonances well outside of the pass band. Finally, the cast aluminum faceplates have been designed to reduce diffraction and keep the off-axis response consistent and predictable. Offering low distortion with smooth response from 500 to 6,000 Hz, these midrange drivers are perfect for small 3-way designs and car audio installations.

Powerful neodymium motors keep each CF50N-4MP under 4” diameter without sacrificing efficiency or output capability. With 2” diameter vented aluminum formers, the voice coils can efficiently dissipate excess heat for high power handling without suffering from significant power compression. The damped rear chambers keep the drivers isolated for easy installation while minimizing internal reflections resulting in smoother response. Finally, the cast aluminum faceplates include integrated grills to protect the delicate domes from damage.

Combining advanced materials and technology, the flexible CF50N-4MP from Dayton Audio deliver excellent midrange reproduction without taking up much space. Capable of wide dispersion, high output, and low distortion, the CF50N-4MP will be right at home in everything from home theater speaker systems to sound quality based car audio installs.

Key Features

• Matched frequency response pairs ensure pinpoint imaging and accurate soundstage
• Woven carbon fiber dome and rubber surround deliver accurate response
• Damped rear chamber lowers Fs and help smooth response
• Powerful neodymium motor allows compact size and delivers high efficiency
• Vented aluminum voice coil former helps dissipate heat for lower power compression
• Rigid cast aluminum faceplate provides a solid and air-tight mounting flange
• Integrated grill protects the dome from foreign objects and curious fingers
