CFCOMBO-4MP
- CFCOMBO-4MP
- DAYTON AUDIO

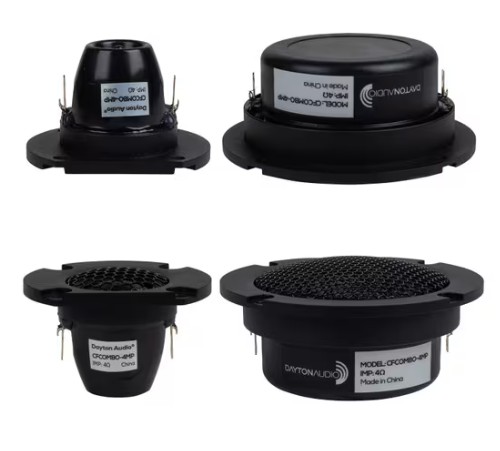

Dayton Audio CFCOMBO-4MP 18mm (0.75in / 3/4in) and 50mm (2in) Carbon Fiber Tweeter/Mid Combo Matched Sets 4 Ohm, 58mm and 100mm Faceplate
The Dayton Audio CFCOMBO-4MP matched pair midrange and tweeter set brings exceptional sound quality and versatility to compact audio designs. Featuring frequency response-matched pairs of 3/4" tweeters and 2" midranges, this set is engineered to deliver pinpoint imaging and a precise soundstage, making it perfect for small 3-way monitors, high-output center channels, and car audio systems. With a center-to-center distance of less than 2.75", these components are optimized for crossovers as high as 5,000 Hz, ensuring seamless integration in any setup.
Premium Tweeter Design

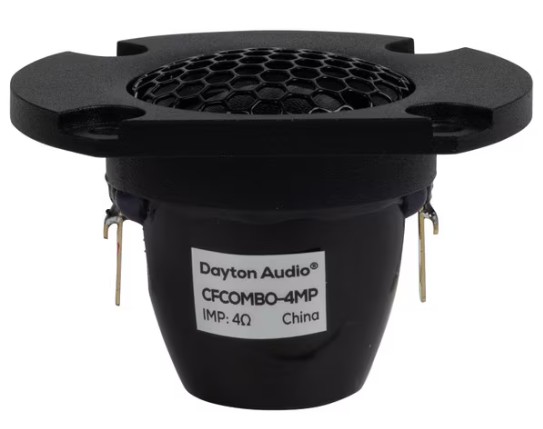

The 3/4" carbon fiber dome tweeters feature woven diaphragms that produce detailed, accurate high frequencies with excellent off-axis response. Built with compact yet powerful neodymium motors, these tweeters maintain exceptional performance without taking up space. Ferrofluid-cooled voice coils enhance heat dissipation for improved power handling and reliability, while damped rear chambers minimize resonances for smooth, distortion-free output.
Durable cast aluminum faceplates provide structural stability, reducing vibrations that could impact sound quality, while integrated protective grills safeguard the delicate diaphragms from damage. These design elements make the tweeters a reliable choice for mobile audio setups, home audio systems, or any environment where space is limited but fidelity is essential.

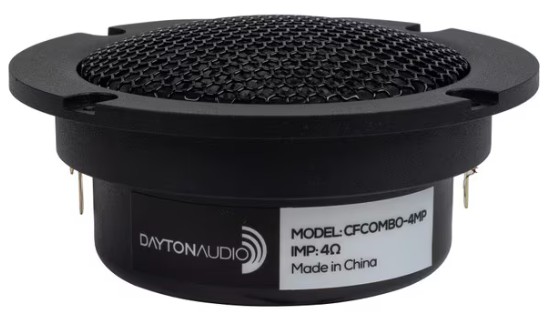

The 2" carbon fiber dome midranges combine lightweight, rigid diaphragms with high-energy neodymium motors to deliver precise midrange response from a compact package. With smooth performance across a wide range of 500 to 6,000 Hz, these drivers are ideal for small 3-way designs and car audio applications. The cast aluminum faceplates reduce diffraction for consistent off-axis response, while integrated grills protect the domes from damage.
Engineered for reliability and efficiency, the midranges feature vented aluminum voice coil formers for superior heat dissipation and damped rear chambers to minimize internal reflections. Rubber surrounds further enhance performance by controlling unwanted resonances and maintaining diaphragm alignment.
The CFCOMBO-4MP set leverages advanced materials, including woven carbon fiber domes and rigid cast aluminum components, to ensure superior performance and longevity. Also, the high-energy neodymium motors keep the size as small as possible without sacrificing efficiency or reliability. Compact yet powerful, this set is tailored for audiophiles and installers who demand exceptional sound quality in space-constrained applications. To keep the drivers as close as possible the frames have segments removed allowing you to install the tweeter and midrange so the center-to-center distance is less than 2-3/4", perfect for crossovers as high as 5,000 Hz.
- Matched frequency response pairs ensure pinpoint imaging and accurate soundstage
- Less than 2.75” center to center distance is ideal for crossovers as high as 5,000 Hz
- Woven carbon fiber domes deliver accurate and detailed response
- Powerful neodymium motors allow compact size without sacrificing performance
- Rigid cast aluminum faceplates provide solid and air-tight mounting flanges
- Integrated grills protect the domes from foreign objects and curious fingers
- Compact size makes these perfect for small 3-ways, center channels, and car audio systems
| NOM DU FICHIER | ACTION |
|---|---|
| cfcombo4mp.pdf | Télécharger |
