Dayton Audio NHP25F-4, 25mm (1in) Soft Dome High Power Neodymium Tweeter 4 Ohm, 63mm Faceplate
Product Specifications | |
---|---|
Manufacturer | DAYTON AUDIO |
Tweeter Type | Soft Dome Neodymium Tweeter |
Cone / Dome Diameter | 25mm |
Impedance | 4 ohms |
Power Handling (RMS) | 40 W |
Frequency Response | 3000 - 20000 Hz |
Sensitivity | 95 dB |

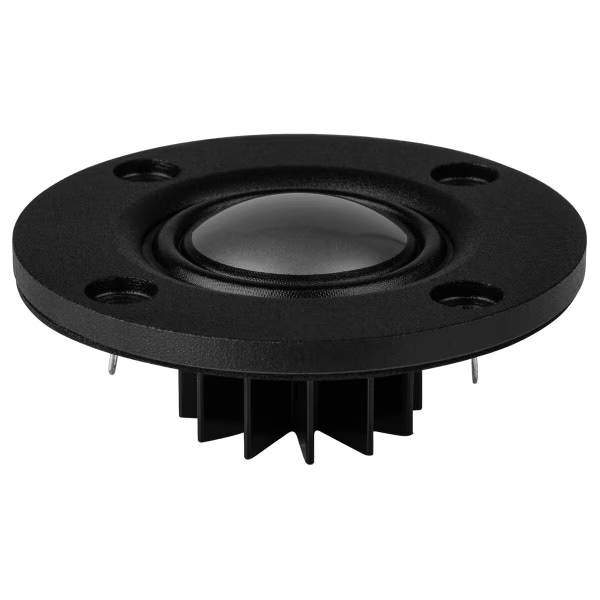

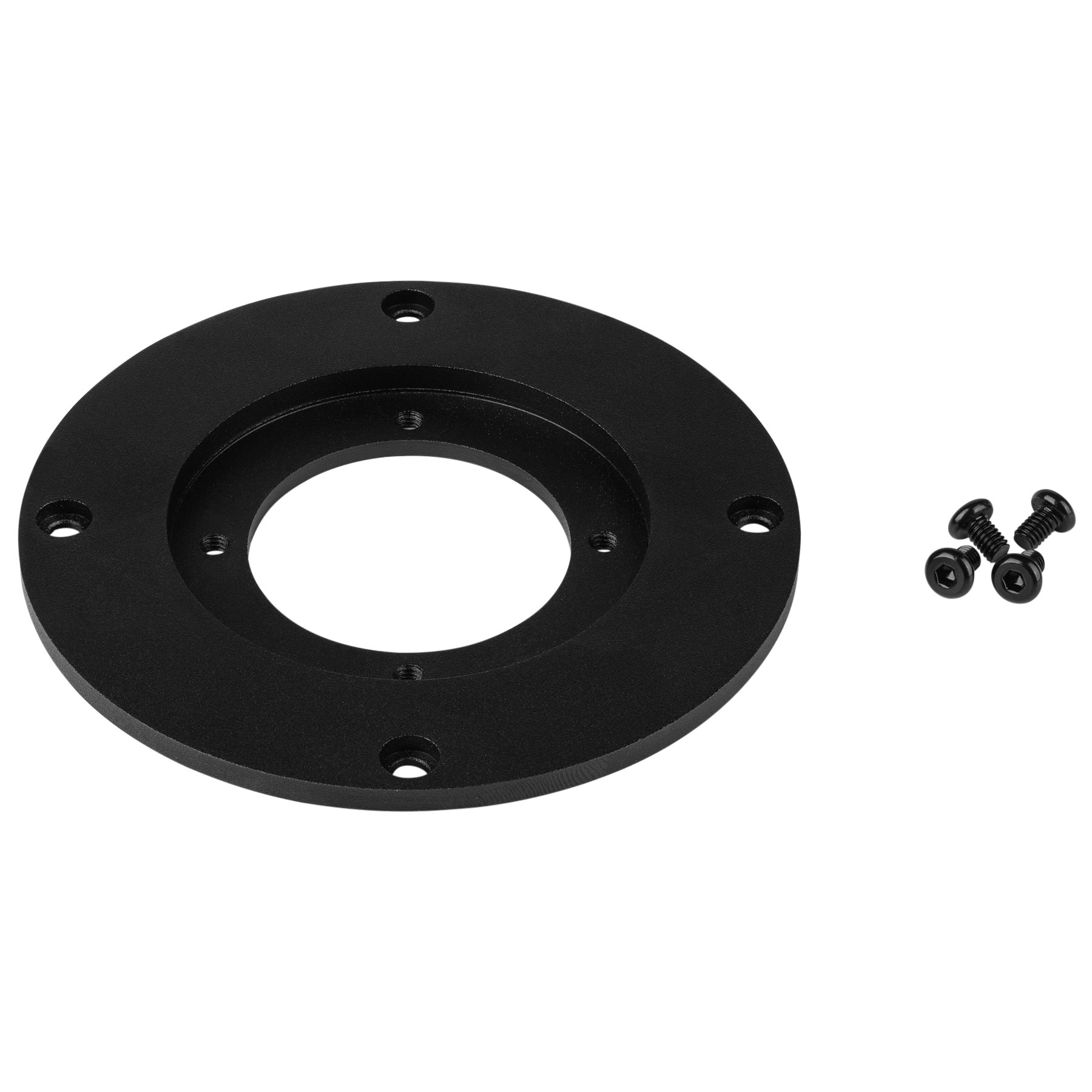

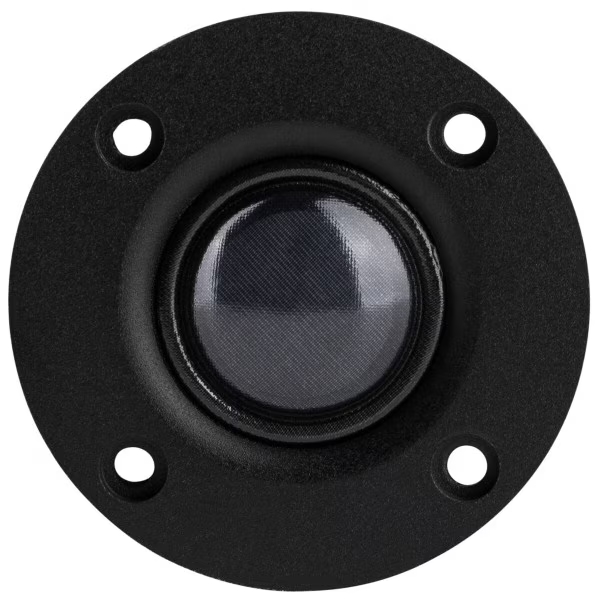

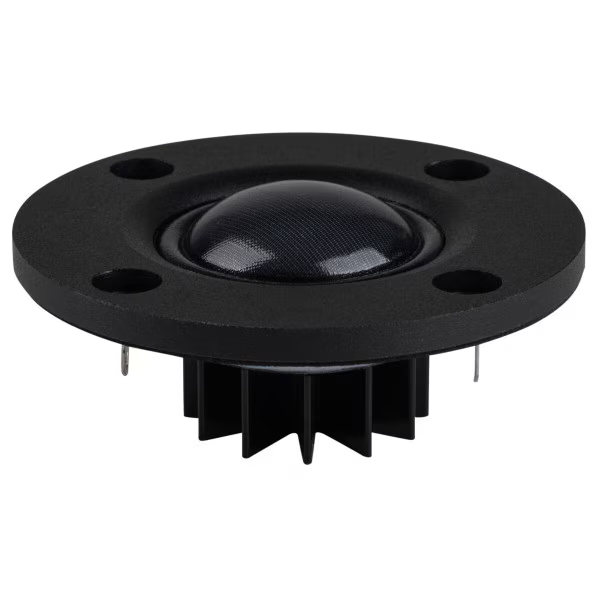

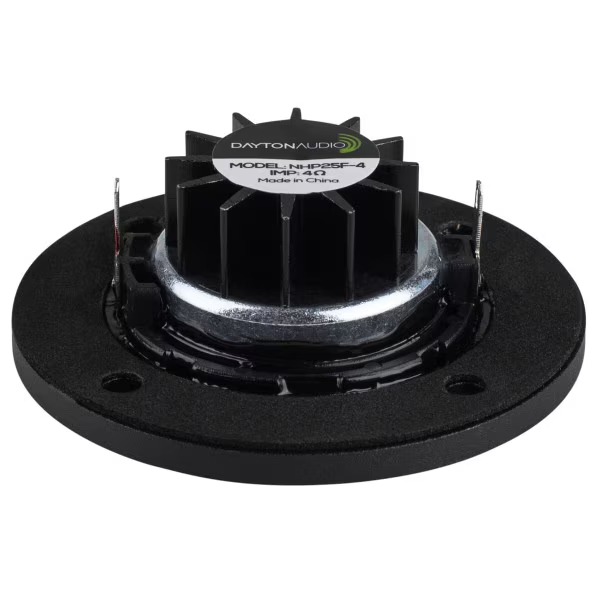

Dayton Audio NHP25F-4 1" Soft Dome High Power Neodymium Tweeter 4 Ohm Dayton Audio's versatile NHP25F-4 is a 1" soft dome tweeter that offers the performance of more expensive tweeters in a compact and stylish package. The small yet powerful high temperature neodymium motor with attached aluminum heat sink and Ferrofluid-filled magnetic gap reduces power compression and improves long-term power handling. In addition, the carefully designed silk diaphragm provides natural treble response up to 20 kHz, excellent off-axis dispersion, and superb sonic detail. The NHP25F-4 includes a 2.5" cast aluminum faceplate, however Dayton Audio does offer an optional 4.09" (104 mm) and 4.33" (110 mm) faceplate allowing this tweeter to be used as a drop in replace for many common sized tweeters.
FILENAME | ACTION |
---|---|
nhp25f4.pdf | Download |
