Product Specifications | |
---|---|
Manufacturer | SB ACOUSTICS (PAIR) |

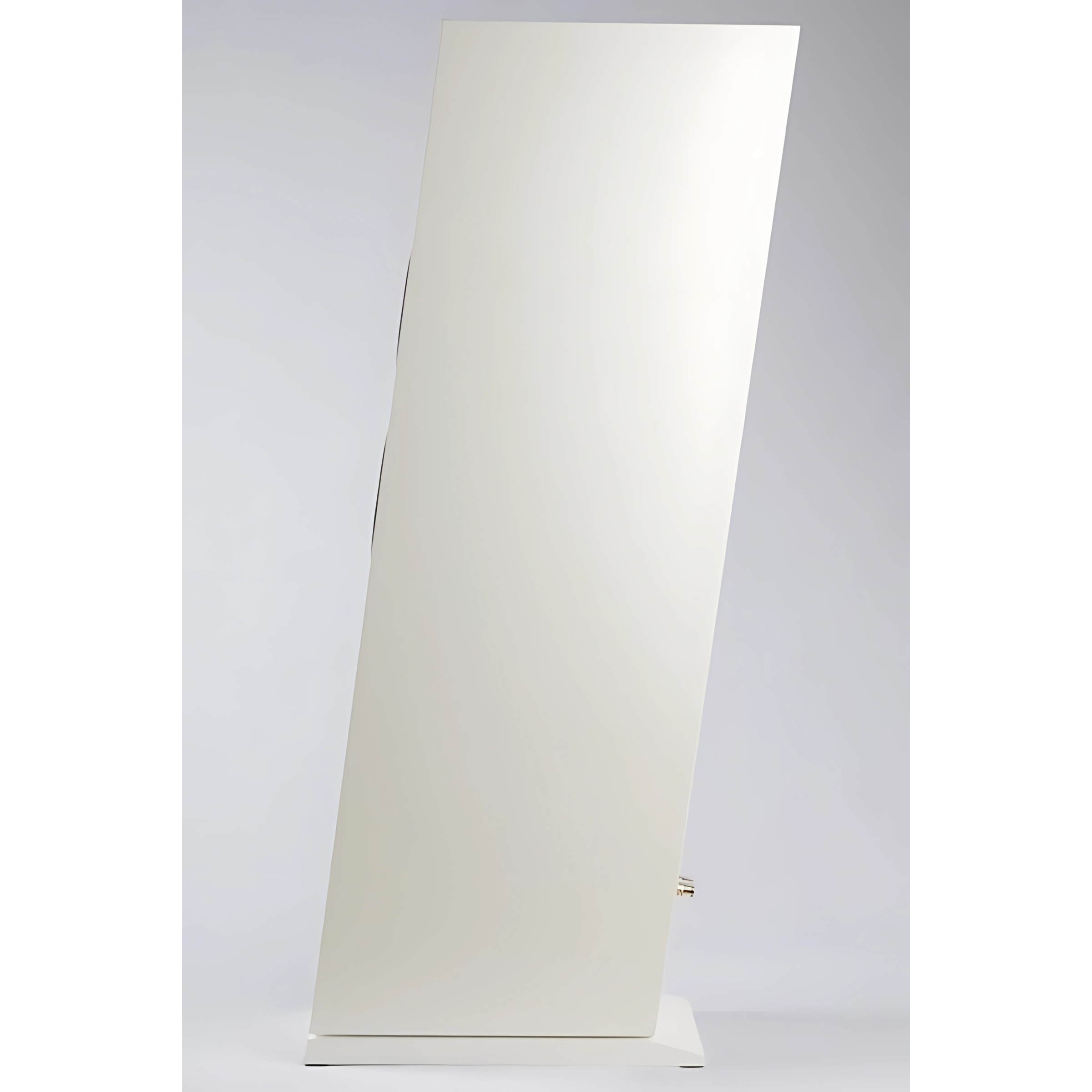

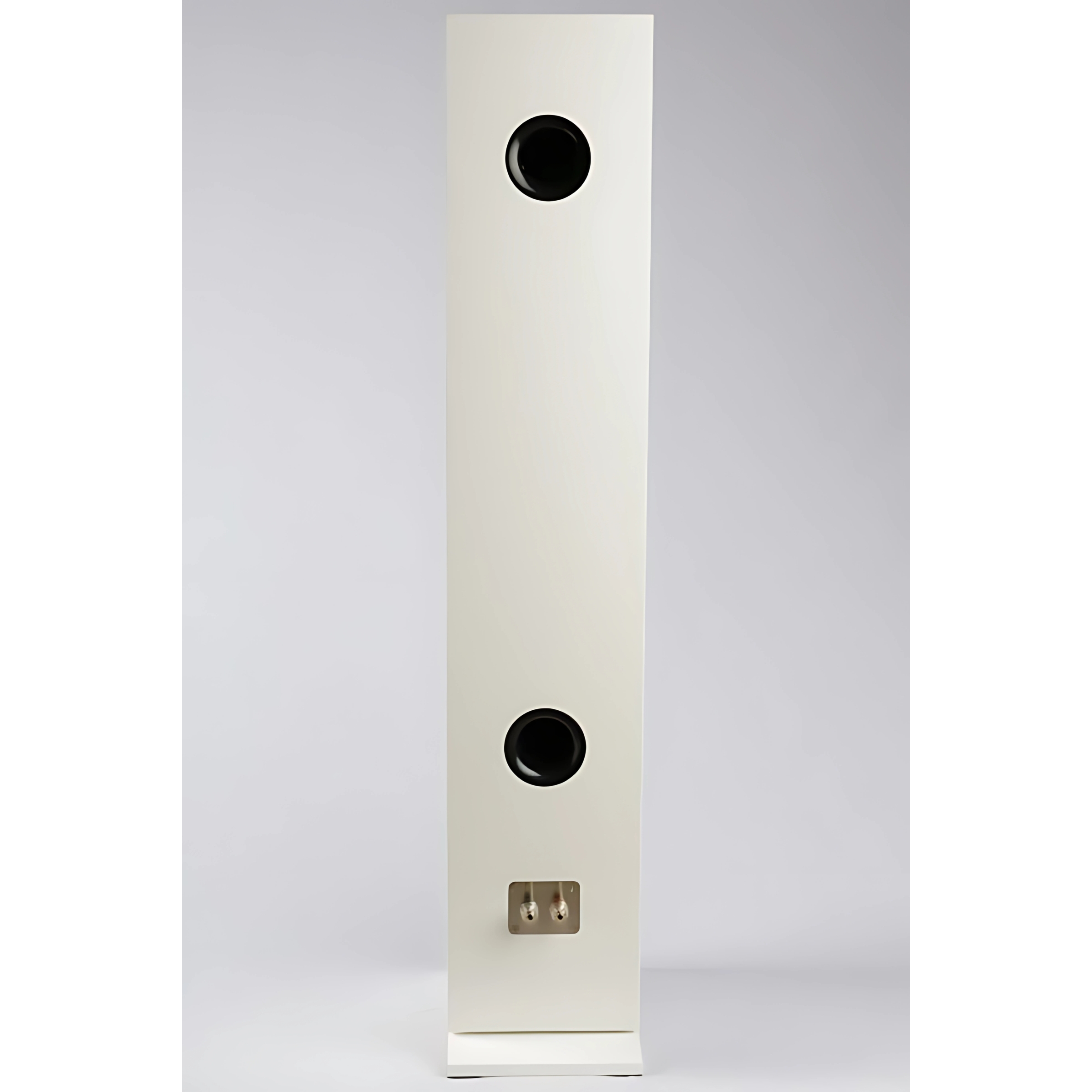

Summary | The RINJANI BE is a 2.5 way bass reflex in 64 L box. Frequency response is 35.5Hz to 30KHz. Sensitivity: 89db 1W/1M The tweeter is the SB Acoustics Satori TW29BN. (TW29BN-B is an option) The woofers are the SB Acoustics Satori MW16P-8. (MW16PNW-8 is an option) The low pass networks are 2nd order designs with compensation. The high pass network employs a conventional 2nd order filter with attenuation.The X-over frequency is 2.3KHz.Taken from volcano mountain in Lombok, Indonesia with astonishingly nature beauty panorama, RINJANI BE kit is designed to deliver transparent and dynamic sound reproduction. The Rinjani is a 2.5-way floor standing speaker kit based on top line of SATORI drivers 6.5" MW16P and TW29BN.The RINJANI BE gently faceted top corner shape is specially designed to reduce high frequency diffraction and yields superp imaging qualities. 7⁰ inclined cabinet shape has purpose to deliver sound staging even with simple crossover design. Whilst, the idea behind inclined bottom is to diminish standing waves. Build-in pedestal is designed to generate accent on its unique design.All the cabinet panels are cut from 18mm MDF with internal bracing to distribute cabinet vibrations evenly and hence lower sound coloration. Unwanted direct reflection is minimized by wedge shaped inner rear walls. The RINJANI BE also has dual ports at the back to distribute port resonance evenly.PARTS ONLY. CABINETS NOT INCLUDED! |
KIT CONTENT | |||||
QT | PART # | ITEM | MANUFACTURER | ||
2 | TW29BN | 25mm Be 10cm SBA | SB ACOUSTICS | ||
4 | MW16P-8 | 17cm 36mm Papy SBA | SB ACOUSTICS | ||
4 | 858-LU | Binding Post Gold 8x38mm | SOLEN | ||
2 | SBPP-SI | Plate Term. 104x104mm Silver | DAYTON AUDIO | ||
68 | OXSOCKET6X3/4 | Hex Socket Screw #6x3/4 | SOLEN | ||
12 | 6X3/4P | Pan Screw #6x3/4 | SOLEN | ||
4 | PSP2-BKNT | Precision Port Kit 2"x11" | PRECISION SOUND | ||
3 | POLYESTER | Fiberflex 38mmx12x60" | SOLEN | ||
24 | CLASSIC1.6 | Tin Plated OFC 2x1.6mm | SUPRA CABLES | ||
2 4 | GFD205-1614R GFD250-1614R | Fem. Disc. .205" 16/14 RED Fem. Disc. .250" 16/14 RED | SOLEN SOLEN | ||
4 | GFD205-1614B | Fem. Disc. .205" 16/14 BLACK | SOLEN | ||
2 | GFD110-1614B | Fem. Disc. .110" 16/14 BLACK | SOLEN | ||
4 | MO1000J5R6 | 5.6 ohm 10W | SOLEN | ||
2 | PB390 | 3.9 mfd 400v 18x33 | SOLEN | ||
2 | S20.68 | .68mH 0.8 13x25x51 | SOLEN | ||
2 | L141.0 | 1.0mH 1.5 19x38x76 | SOLEN | ||
2 | PB470 | 4.7 mfd 400v 20x33 | SOLEN | ||
2 | S143.3 | 3.3mH 1.6 25x51x102 | SOLEN | ||
2 | MO1000J1R5 | 1.5 ohm 10W | SOLEN | ||
2 | PB2700 | 27 mfd 400v 34x53 | SOLEN | ||
2 | MO1000J3R9 | 3.9 ohm 10W | SOLEN | ||
2 | B05A100K686 | 68 mfd 100v 16x42 | SOLEN | ||
1 | TW29-GRILL | TW29 Magnetic Grill (PAIR) | SB ACOUSTICS | ||
2 | MW16-GRILL | MR & MW16 Magnetic Grill (PAIR) | SB ACOUSTICS |
FILENAME | ACTION |
---|---|
rinjani_be_kit.pdf | Download |
